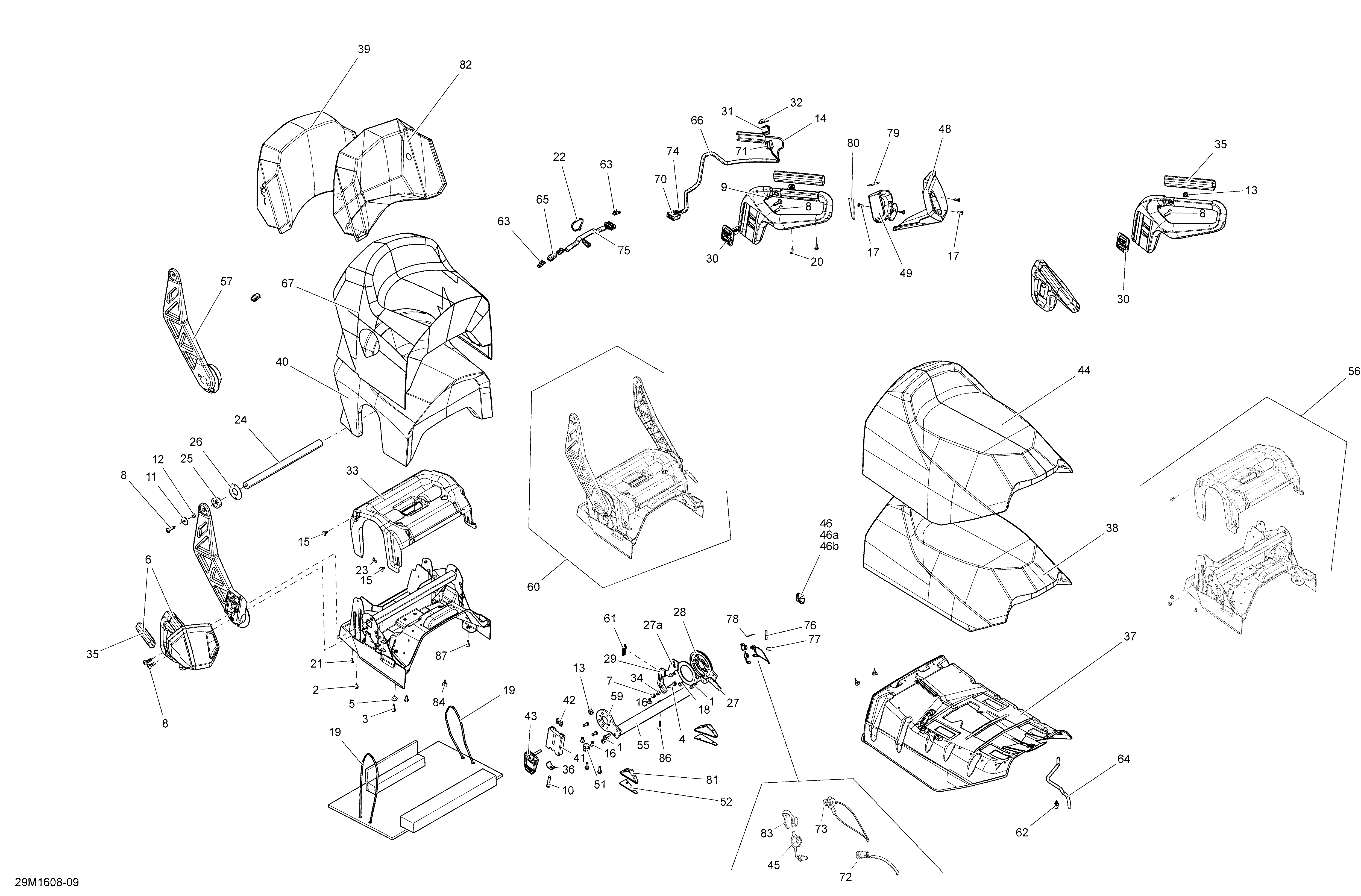

09- Seat для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2016
-
№АртикулНазвание
-
1205982586 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
2207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
3207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
4207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
5224061201 Flat WasherFlat Washer
-
6510005854 RH Handle Ass'yRH Handle Ass'y
-
6510005853 LH Handle Ass'yLH Handle Ass'y
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
9250000721 Torx ScrewTorx Screw
-
10250000220 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
12271000558 SpacerSpacer
-
13293100003 Nut M6Nut M6
-
14515176999 Heated ElementHeated Element
-
15293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
18293150129 Steel RivetSteel Rivet
-
19293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
20250000725 Screw M4 X 16Screw M4 X 16
-
21390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
23414644300 DartDart
-
24510004377 Upper Backrest AxleUpper Backrest Axle
-
25510004378 Rubber ShimRubber Shim
-
26510004379 WasherWasher
-
27510004385 Handle, BlackHandle, Black
-
27a510004419 GripGrip
-
28510004391 SprocketSprocket
-
29510004392 Adjustment PivotAdjustment Pivot
-
30510004405 MouldingMoulding
-
31510004413 Rocker SwitchRocker Switch
-
32510004414 Switch ProtectorSwitch Protector
-
33510004423 Foam SupportFoam Support
-
34510004425 BushingBushing
-
35510005814 Reinforcement HandleReinforcement Handle
-
35510004449 Handle GripHandle Grip
-
36510004565 Handle ClampHandle Clamp
-
37510004775 Front Seat BaseFront Seat Base
-
38510004777 Front Seat FoamFront Seat Foam
-
39510004782 Backrest FoamBackrest Foam
-
40510004791 Rear Seat FoamRear Seat Foam
-
41510004798 Handle LinkHandle Link
-
42510004804 Stopper BlockStopper Block
-
43510004806 Lever Lock Ass'yLever Lock Ass'y
-
44510006117 Seat CoverSeat Cover
-
45510004950 CapCap
-
46510004976 Seat Corner, Full MoonSeat Corner, Full Moon
-
46510004963 Seat Corner, BlackSeat Corner, Black
-
46a510004964 RH Rear Corner SeatRH Rear Corner Seat
-
46b510004965 LH Rear Corner SeatLH Rear Corner Seat
-
47510005009 RH Air DeflectorRH Air Deflector
-
48510005010 LH Air DeflectorLH Air Deflector
-
49510005036 Housing SwitchHousing Switch
-
51510005095 Seat StudSeat Stud
-
52510005216 SpacerSpacer
-
54510005465 LH ArmLH Arm
-
55510005496 Link TubeLink Tube
-
56510005535 Seat Base Ass'ySeat Base Ass'y
-
57510005539 RH Arm, BlackRH Arm, Black
-
57510005464 RH ArmRH Arm
-
59510005568 Link PlateLink Plate
-
60510005688 Seat Base Ass'ySeat Base Ass'y
-
61514053643 SpringSpring
-
62515175220 Tie RapTie Rap
-
63515175283 Housing SupportHousing Support
-
64515175442 Tubing 6 mmTubing 6 mm
-
65515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
66515175506 TubingTubing
-
67510006115 Seat CoverSeat Cover
-
70515176033 Male ConnectorMale Connector
-
71515176697 Handle HarnessHandle Harness
-
72515177018 Heated Liner HarnessHeated Liner Harness
-
73515176698 Visor Connector HarnessVisor Connector Harness
-
75515176766 Seat HarnessSeat Harness
-
76516003612 Visor and Liner DecalVisor and Liner Decal
-
77516003613 Handle and Seat DecalHandle and Seat Decal
-
78516003809 Intensity Switch DecalIntensity Switch Decal
-
79516003816 Heated Handle DecalHeated Handle Decal
-
80516003937 Connector DecalConnector Decal
-
81518325710 RH Seat AnchorRH Seat Anchor
-
81518325709 LH Seat AnchorLH Seat Anchor
-
82510005353 Backrest CoverBackrest Cover
-
83572103300 CapCap
-
84708000759 Rubber StopperRubber Stopper
-
86207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
87207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
