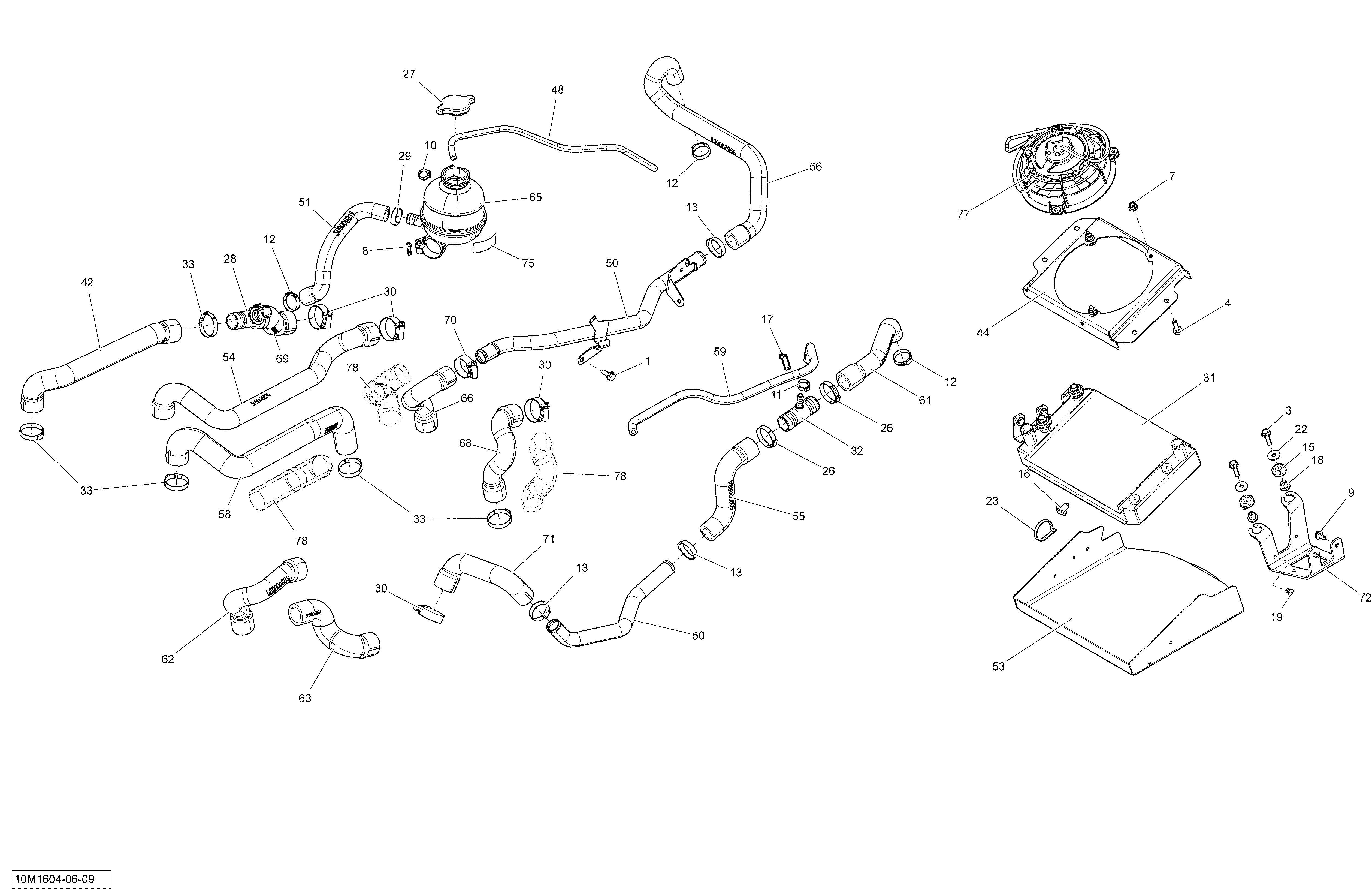

01- Cooling System - 600-900 ACE для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
3207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
9250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
10293650025 Oetiker Gear ClampOetiker Gear Clamp
-
11293650047 Crimp ClampCrimp Clamp
-
12293650099 Crimp Clamp. North America ModelCrimp Clamp. North America Model
-
12293650099 Crimp Clamp. Europe ModelCrimp Clamp. Europe Model
-
13293650141 Oetiker Gear ClampOetiker Gear Clamp
-
15293720053 GrommetGrommet
-
16293730040 Mount DartMount Dart
-
17293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
18293900100 BushingBushing
-
19390909100 Avex RivetAvex Rivet
-
22250200082 Flat WasherFlat Washer
-
23414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26509000162 Gear ClampGear Clamp
-
27509000180 Pressure CapPressure Cap
-
28509000372 T-FittingT-Fitting
-
29509000442 Oetiker Gear ClampOetiker Gear Clamp
-
30509000443 Aba Gear ClampAba Gear Clamp
-
31509000488 RadiatorRadiator
-
32509000510 T-FittingT-Fitting
-
33509000529 Oetiker Gear ClampOetiker Gear Clamp
-
42509000697 Radiator Return HoseRadiator Return Hose
-
44509000714 Fan SupportFan Support
-
48509000775 HoseHose
-
50509000800 Water PipeWater Pipe
-
51509000811 Filling HoseFilling Hose
-
53509000835 Air Inlet DeflectorAir Inlet Deflector
-
54509000836 Engine Outlet HoseEngine Outlet Hose
-
55509000854 Radiator HoseRadiator Hose
-
56509000855 Radiator HoseRadiator Hose
-
58509000859 Radiator HoseRadiator Hose
-
59509000860 Breather HoseBreather Hose
-
61509000862 Radiator HoseRadiator Hose
-
62509000863 Engine Outlet HoseEngine Outlet Hose
-
63509000864 Engine Inlet HoseEngine Inlet Hose
-
64509000875 Cooling Tank. Engine 600 ACE EuropeCooling Tank. Engine 600 ACE Europe
-
65509000881 Cooling Tank. Except Engine 600 ACE EuropeCooling Tank. Except Engine 600 ACE Europe
-
66509000888 Engine Outlet HoseEngine Outlet Hose
-
68509000913 Engine Outlet HoseEngine Outlet Hose
-
69509000921 Radiator HoseRadiator Hose
-
70509000931 Gear ClampGear Clamp
-
71509000932 Engine Outlet HoseEngine Outlet Hose
-
72509000933 SupportSupport
-
73509000934 SupportSupport
-
75516005904 Warning DecalWarning Decal
-
77709200573 FanFan
-
78509000513 Protector Tube 32 mmProtector Tube 32 mm
