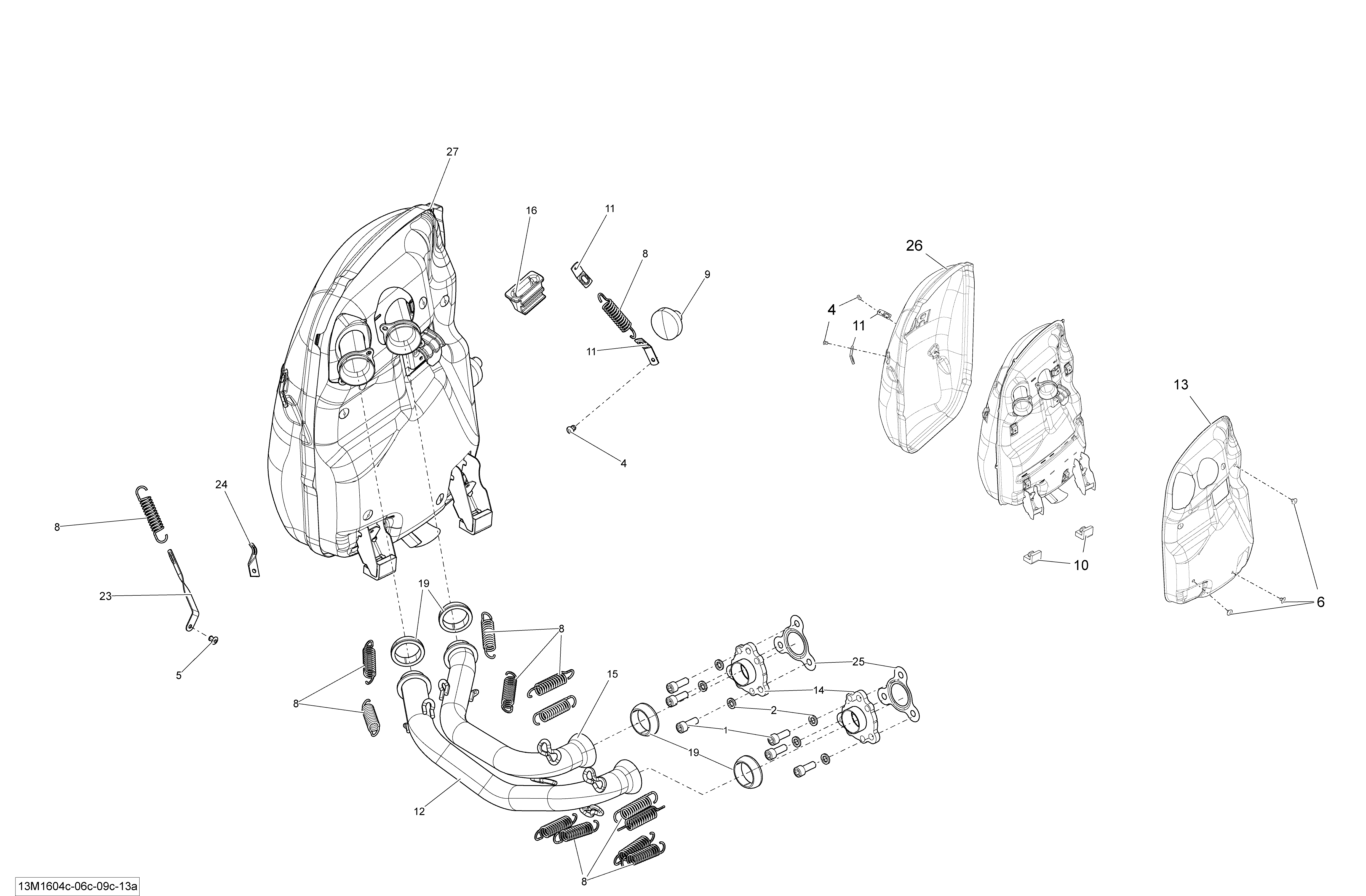

01- Exhaust System - 600 ACE для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
2250200111 WasherWasher
-
4390909200 Avex RivetAvex Rivet
-
5293150144 Stavex RivetStavex Rivet
-
6390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
8415107100 SpringSpring
-
9514053654 Rubber BumperRubber Bumper
-
10514054496 Lower StopperLower Stopper
-
11514054522 Spring BracketSpring Bracket
-
12514054625 Exhaust Tube, PTO SideExhaust Tube, PTO Side
-
13514054645 LH Heat ShieldLH Heat Shield
-
14514054673 Exhaust ManifoldExhaust Manifold
-
15514054731 Exhaust Tube, MAG SideExhaust Tube, MAG Side
-
16514054737 Upper StopperUpper Stopper
-
19514054807 Exhaust GasketExhaust Gasket
-
23514055030 Spring BracketSpring Bracket
-
24514055037 Spring BracketSpring Bracket
-
25514055112 SealSeal
-
26514055325 RH Heat ShieldRH Heat Shield
-
27514055327 Muffler Ass'yMuffler Ass'y
