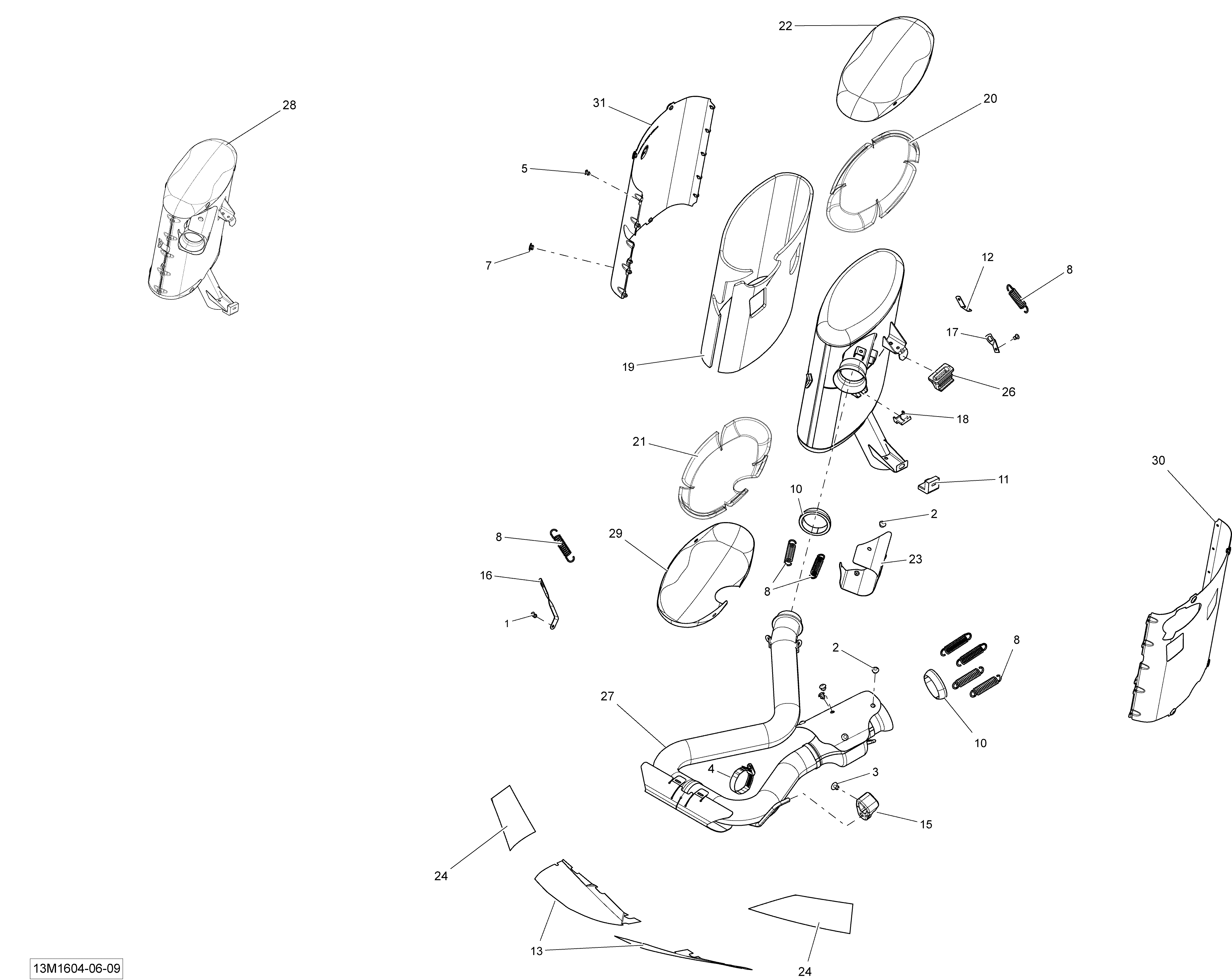

01- Exhaust System - 1200 4TEC для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1293150144 Stavex RivetStavex Rivet
-
2293150173 Rivet 6,4 mmRivet 6,4 mm
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293650036 Tridon ClampTridon Clamp
-
5390909200 Avex RivetAvex Rivet
-
7390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
8415107100 SpringSpring
-
10514054174 Exhaust GasketExhaust Gasket
-
11514054274 Lower StopperLower Stopper
-
12514054522 Spring BracketSpring Bracket
-
13514054999 Heat ShieldHeat Shield
-
15514055012 RubberRubber
-
16514055030 Spring BracketSpring Bracket
-
17514055037 Spring BracketSpring Bracket
-
18514055187 Front RubberFront Rubber
-
19514055239 WoolWool
-
20514055240 WoolWool
-
21514055241 WoolWool
-
22514055242 Upper CapUpper Cap
-
23514055245 DeflectorDeflector
-
24514055271 Heat ShieldHeat Shield
-
26514055298 Upper StopperUpper Stopper
-
27514055309 Exhaust PipeExhaust Pipe
-
28514055371 Muffler Ass'yMuffler Ass'y
-
29514055372 Lower CapLower Cap
-
30514055383 ShellShell
-
31514055390 ShellShell
