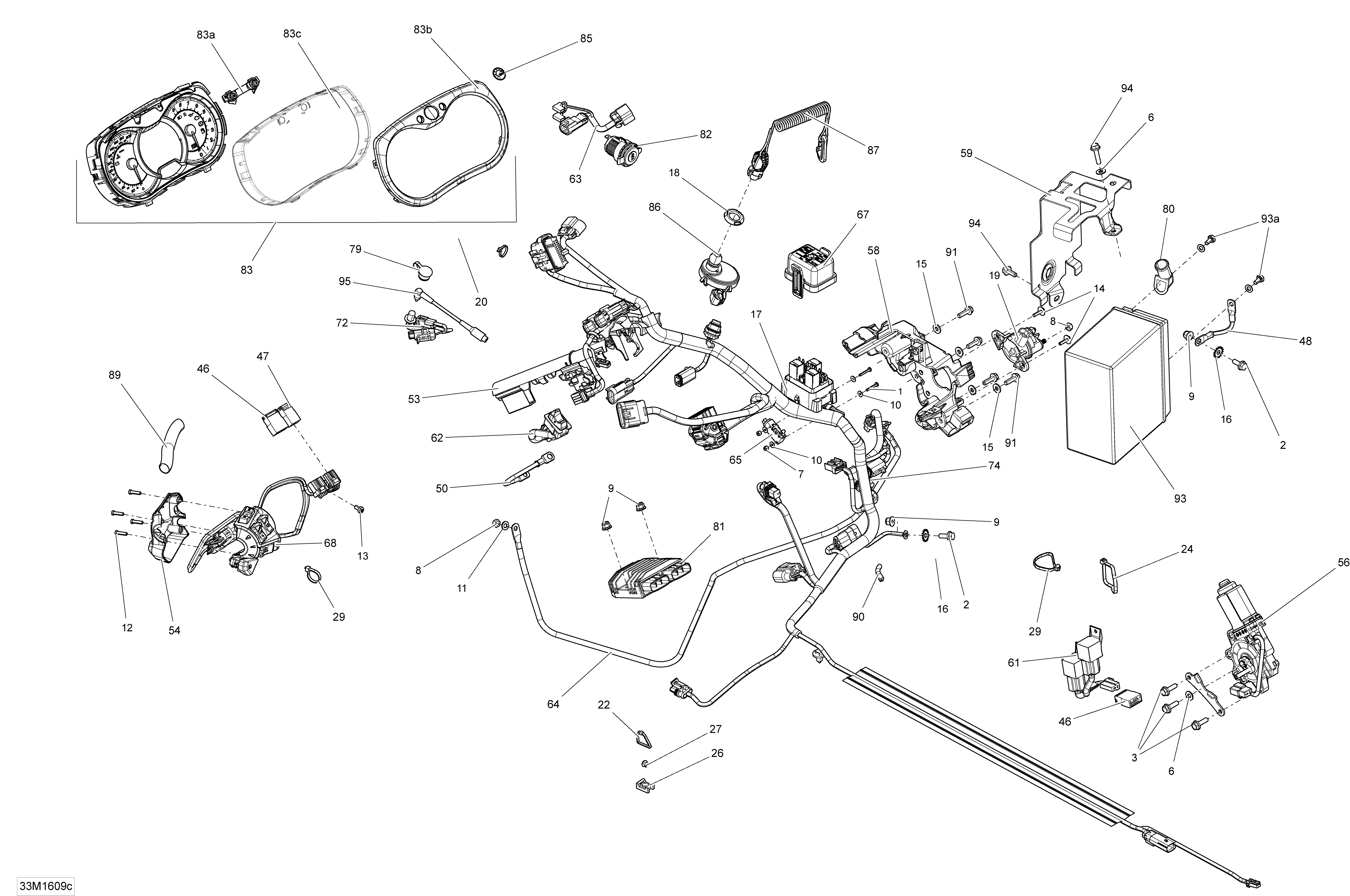

10- Electrical System - 900 ACE для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6224061121 Flat WasherFlat Washer
-
7232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
11234061410 Flat Washer 6 mmFlat Washer 6 mm
-
12250000671 Torx ScrewTorx Screw
-
13250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
14250000725 Screw M4 X 16Screw M4 X 16
-
15250200039 Flat WasherFlat Washer
-
16250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
17278002824 Case Ass'yCase Ass'y
-
18278002963 Safety NutSafety Nut
-
19278003012 Starter RelayStarter Relay
-
20293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
22293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
26515176795 ClipClip
-
27390909200 Avex RivetAvex Rivet
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
47515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
48515176358 Ground WireGround Wire
-
50515177014 Ground WireGround Wire
-
51515177039 PlatePlate
-
53515177134 Connector PlateConnector Plate
-
54515177147 Housing PlateHousing Plate
-
56515177273 Electrical Motor Ass'yElectrical Motor Ass'y
-
58515177347 PlatePlate
-
59515177348 Battery SupportBattery Support
-
61515177350 Reverse HarnessReverse Harness
-
62515177394 SwitchSwitch
-
63515177400 12 Volts Outlet Harness12 Volts Outlet Harness
-
64515177427 Battery WireBattery Wire
-
65515177460 Switch Ass'ySwitch Ass'y
-
67515177671 Fuse Box CoverFuse Box Cover
-
68515177677 HousingHousing
-
72515177837 Visor HarnessVisor Harness
-
73515177929 RivetRivet
-
74515177990 Main HarnessMain Harness
-
79572103300 CapCap
-
80710000495 Protector CapProtector Cap
-
81710001103 Voltage RegulatorVoltage Regulator
-
82710001248 Outlet DCOutlet DC
-
83515177913 IndicatorIndicator
-
83a415129355 Speedometer ButtonSpeedometer Button
-
83b415129348 Gauge RingGauge Ring
-
83c415129349 LensLens
-
85516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
86515178049 DESS SwitchDESS Switch
-
87515178038 KeyKey
-
87860201162 KeyKey
-
89415129879 Protector TubeProtector Tube
-
90271001530 TrimTrim
-
93415129898 Lead Battery 18 AmperesLead Battery 18 Amperes
-
93a250000282 Battery Bolt KitBattery Bolt Kit
-
94250000793 SCREW-HEX.FLANGE DIN.6921 NYLON PATSCREW-HEX.FLANGE DIN.6921 NYLON PAT
-
95515175851 ExtensionExtension
