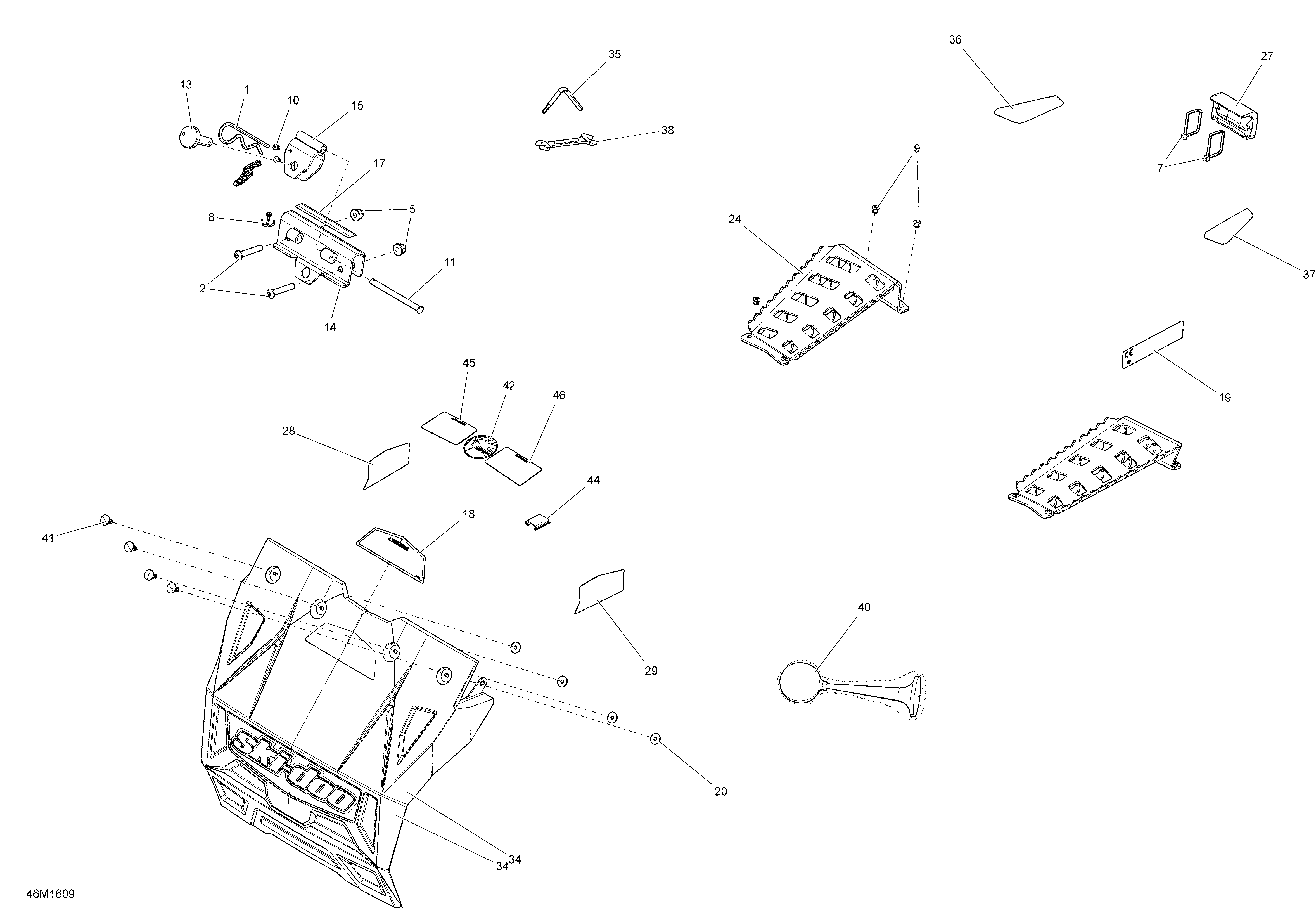

09- Utilities - Package Sport для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
3219400038 Form WarantyForm Waranty
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7293750018 Tie Rap 371 mmTie Rap 371 mm
-
8371800200 Cotter PinCotter Pin
-
9390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
10390404300 Pop Rivet 5/32''Pop Rivet 5/32''
-
11511000520 Clevis PinClevis Pin
-
13511000555 PinPin
-
14511000554 SupportSupport
-
15511000588 Hitch PlateHitch Plate
-
17516004568 Warning Decal, SecurityWarning Decal, Security
-
18516005175 Warning Decal, TrackWarning Decal, Track
-
19516006804 ''CE'' Decal.''CE'' Decal.
-
20517124300 WasherWasher
-
21415037900 White Reflector. Europe ModelWhite Reflector. Europe Model
-
21520000271 Amber Reflector. Europe ModelAmber Reflector. Europe Model
-
24520000887 RH FootrestRH Footrest
-
24520000888 LH FootrestLH Footrest
-
27520000871 Reflector SupportReflector Support
-
28520000883 Yellow RH Rear ReflectorYellow RH Rear Reflector
-
28520000882 Yellow LH Rear ReflectorYellow LH Rear Reflector
-
28520000880 Red LH Rear Reflector. North America ModelRed LH Rear Reflector. North America Model
-
29520000881 Red RH Rear Reflector. North America ModelRed RH Rear Reflector. North America Model
-
34520001342 Snow GuardSnow Guard
-
35520001142 Spacing ToolSpacing Tool
-
36520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
37520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
38529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
39520001290 Tools KitTools Kit
-
40549011291 HornHorn
-
41293150101 Pop Rivet 3/16''Pop Rivet 3/16''
-
41293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
42516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
44520000829 Radiator TrimRadiator Trim
-
45516006908 Warning DecalWarning Decal
-
46516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
