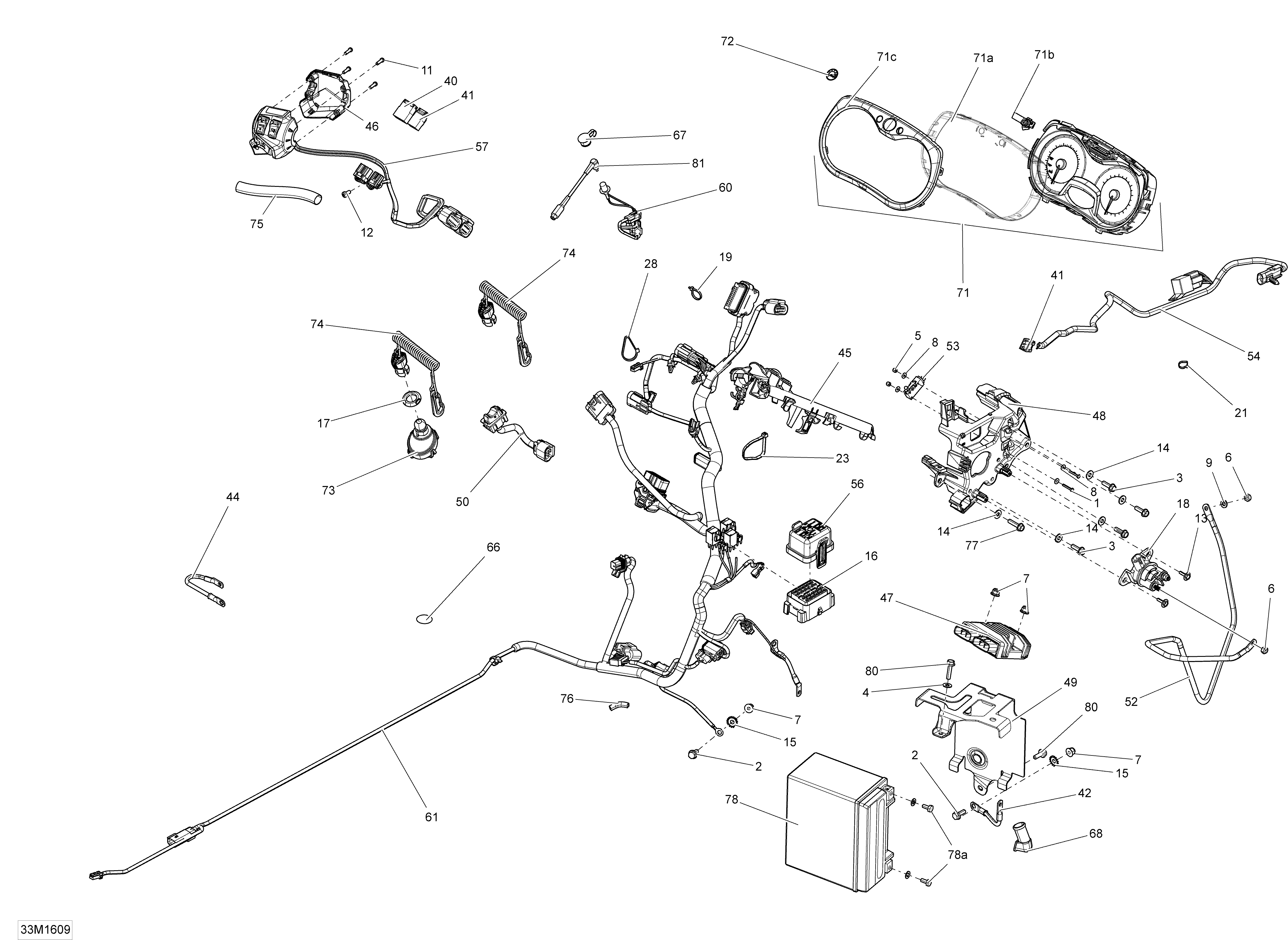

10- Electrical System - 600 ACE для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4224061121 Flat WasherFlat Washer
-
5232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
6232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
9234061410 Flat Washer 6 mmFlat Washer 6 mm
-
11250000671 Torx ScrewTorx Screw
-
12250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
13250000725 Screw M4 X 16Screw M4 X 16
-
14250200039 Flat WasherFlat Washer
-
15250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
16278002824 Case Ass'yCase Ass'y
-
17278002963 Safety NutSafety Nut
-
18278003012 Starter RelayStarter Relay
-
19293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
21293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
41515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
42515176358 Ground WireGround Wire
-
44515177014 Ground WireGround Wire
-
45515177134 Connector PlateConnector Plate
-
46515177147 Housing PlateHousing Plate
-
47515177325 Voltage Regulator. Europe ModelVoltage Regulator. Europe Model
-
47710001103 Voltage Regulator. North America ModelVoltage Regulator. North America Model
-
48515177347 Plate. North America ModelPlate. North America Model
-
48515177347 Plate. Europe ModelPlate. Europe Model
-
49515177348 Battery SupportBattery Support
-
50515177394 SwitchSwitch
-
52515177427 Battery WireBattery Wire
-
53515177460 Switch Ass'ySwitch Ass'y
-
54515177646 Fan Harness. Europe ModelFan Harness. Europe Model
-
56515177671 Fuse Box Cover. North America ModelFuse Box Cover. North America Model
-
56515177671 Fuse Box Cover. Europe ModelFuse Box Cover. Europe Model
-
57515177676 HousingHousing
-
60515177837 Visor HarnessVisor Harness
-
61515177990 Main Harness. North America ModelMain Harness. North America Model
-
61515177990 Main Harness. Europe ModelMain Harness. Europe Model
-
66518325560 Adhesive PatchAdhesive Patch
-
67572103300 CapCap
-
68710000495 Protector CapProtector Cap
-
71515177911 IndicatorIndicator
-
71a415129349 LensLens
-
71b415129355 Speedometer ButtonSpeedometer Button
-
71c415129370 Gauge RingGauge Ring
-
72516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
73515178049 DESS SwitchDESS Switch
-
74515178038 KeyKey
-
75415129879 Protector TubeProtector Tube
-
76271001530 TrimTrim
-
77210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
78415129898 Lead Battery 18 AmperesLead Battery 18 Amperes
-
78a250000282 Battery Bolt KitBattery Bolt Kit
-
80250000793 SCREW-HEX.FLANGE DIN.6921 NYLON PATSCREW-HEX.FLANGE DIN.6921 NYLON PAT
-
81515175851 ExtensionExtension
