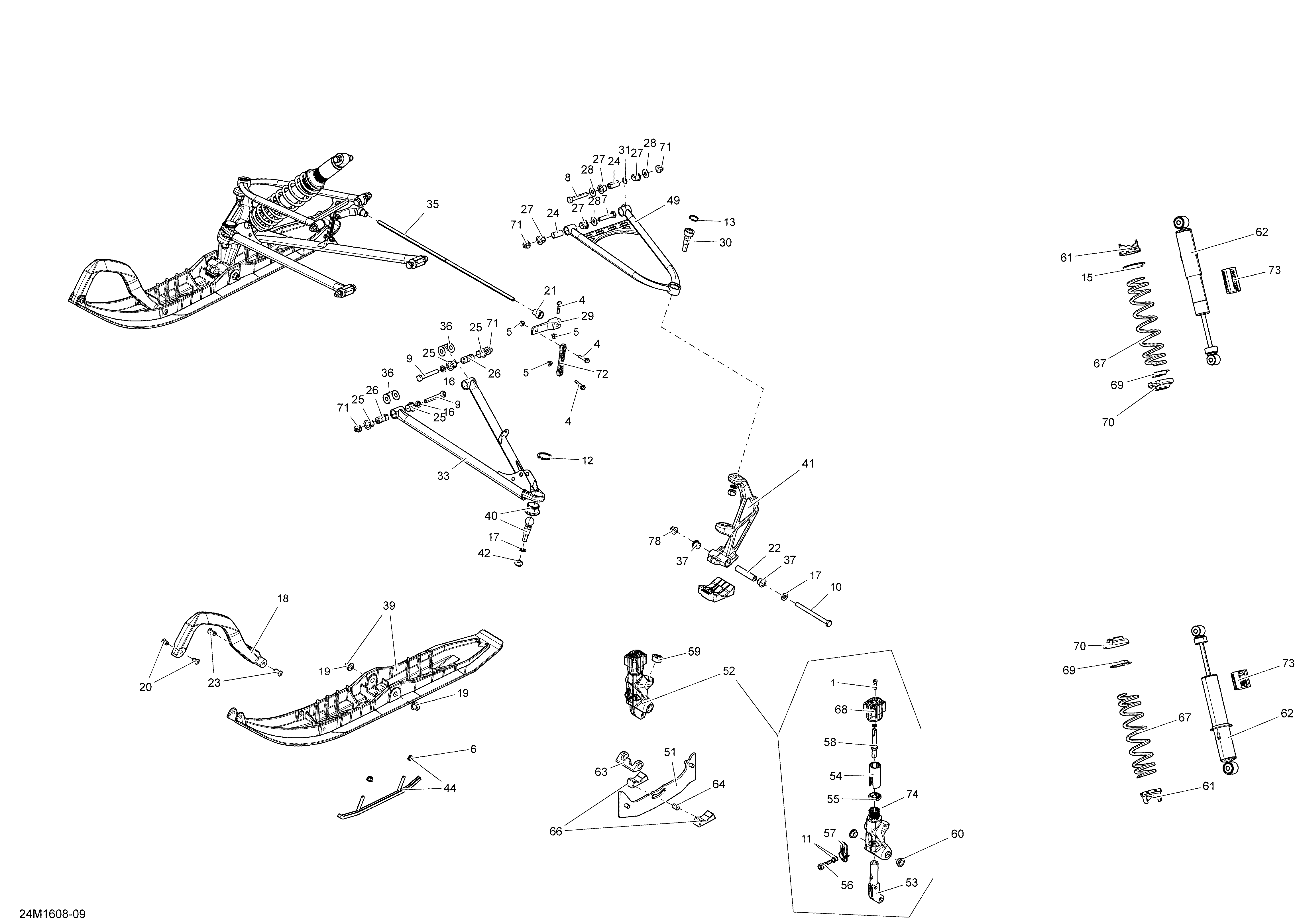

07- Front Suspension And Ski для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2016
-
№АртикулНазвание
-
1205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
1205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
2207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
2207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
3207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
3207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
4207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
4207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
5233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
7250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
8250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
8250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
9250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
9250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
10250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
10250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
11293300013 O-RingO-Ring
-
11293300013 O-RingO-Ring
-
12293370035 CirclipCirclip
-
12293370035 CirclipCirclip
-
13293370070 CirclipCirclip
-
13293370070 CirclipCirclip
-
15503187500 Spring GuideSpring Guide
-
15503187500 Spring GuideSpring Guide
-
16503189564 WasherWasher
-
16503189564 WasherWasher
-
17503192491 WasherWasher
-
17503192491 WasherWasher
-
18505070963 Black Handle. Package-Sport North AmericaBlack Handle. Package-Sport North America
-
18505070963 Black Handle. Package-Sport North AmericaBlack Handle. Package-Sport North America
-
18505070963 Black Handle. Package-LEBlack Handle. Package-LE
-
18505070963 Black Handle. Package-LEBlack Handle. Package-LE
-
18505072976 Black Handle. Model N°: ETGBBlack Handle. Model N°: ETGB
-
18505072976 Black Handle. Model N°: ETGBBlack Handle. Model N°: ETGB
-
18505070963 Black Handle. Model N°: ERGABlack Handle. Model N°: ERGA
-
18505070963 Black Handle. Model N°: ERGABlack Handle. Model N°: ERGA
-
19505071781 CushionCushion
-
19505071781 CushionCushion
-
20505071812 RetainerRetainer
-
20505071812 RetainerRetainer
-
21505072445 BushingBushing
-
21505072445 BushingBushing
-
22506133300 SpacerSpacer
-
22506133300 SpacerSpacer
-
23505072133 RetainerRetainer
-
23505072133 RetainerRetainer
-
24505072143 BushingBushing
-
24505072143 BushingBushing
-
25505072208 BushingBushing
-
25505072208 BushingBushing
-
26505072209 BushingBushing
-
26505072209 BushingBushing
-
27505072250 BushingBushing
-
27505072250 BushingBushing
-
28505072392 WasherWasher
-
28505072392 WasherWasher
-
29505072446 Stabilisator LeverStabilisator Lever
-
29505072446 Stabilisator LeverStabilisator Lever
-
30505072913 Upper Ball JointUpper Ball Joint
-
30505072913 Upper Ball JointUpper Ball Joint
-
31505072448 O-RingO-Ring
-
31505072448 O-RingO-Ring
-
33505072664 Black RH Lower Arm. Package-SportBlack RH Lower Arm. Package-Sport
-
33505072664 Black RH Lower Arm. Package-SportBlack RH Lower Arm. Package-Sport
-
33505073426 RH Lower Arm 42''. Except Package-SportRH Lower Arm 42''. Except Package-Sport
-
33505073426 RH Lower Arm 42''. Except Package-SportRH Lower Arm 42''. Except Package-Sport
-
33505072665 Black LH Lower Arm. Package-SportBlack LH Lower Arm. Package-Sport
-
33505072665 Black LH Lower Arm. Package-SportBlack LH Lower Arm. Package-Sport
-
33505073420 LH Lower Arm 42''. Except Package-SportLH Lower Arm 42''. Except Package-Sport
-
33505073420 LH Lower Arm 42''. Except Package-SportLH Lower Arm 42''. Except Package-Sport
-
35505072444 StabilisatorStabilisator
-
35505072444 StabilisatorStabilisator
-
36505072634 Wear PlateWear Plate
-
36505072634 Wear PlateWear Plate
-
37505072690 Leg CushionLeg Cushion
-
37505072690 Leg CushionLeg Cushion
-
39505072443 Pilot Ski SL Ass'y. Package-Sport North AmericaPilot Ski SL Ass'y. Package-Sport North America
-
39505072443 Pilot Ski SL Ass'y. Package-Sport North AmericaPilot Ski SL Ass'y. Package-Sport North America
-
39505072443 Pilot Ski SL Ass'y. Package-LEPilot Ski SL Ass'y. Package-LE
-
39505072443 Pilot Ski SL Ass'y. Package-LEPilot Ski SL Ass'y. Package-LE
-
39505073227 Black DS Ski 2. Model N°: ETGBBlack DS Ski 2. Model N°: ETGB
-
39505073227 Black DS Ski 2. Model N°: ETGBBlack DS Ski 2. Model N°: ETGB
-
39505073227 Black DS Ski 2. Package-Sport EuropeBlack DS Ski 2. Package-Sport Europe
-
39505073227 Black DS Ski 2. Package-Sport EuropeBlack DS Ski 2. Package-Sport Europe
-
39505073796 Deep Black RH Pilot Ski Ass'y. Model N°: ERGADeep Black RH Pilot Ski Ass'y. Model N°: ERGA
-
39505073796 Deep Black RH Pilot Ski Ass'y. Model N°: ERGADeep Black RH Pilot Ski Ass'y. Model N°: ERGA
-
39505073786 Deep Black LH Pilot Ski Ass'y. Model N°: ERGADeep Black LH Pilot Ski Ass'y. Model N°: ERGA
-
39505073786 Deep Black LH Pilot Ski Ass'y. Model N°: ERGADeep Black LH Pilot Ski Ass'y. Model N°: ERGA
-
40505073636 Ball JointBall Joint
-
40505073636 Ball JointBall Joint
-
41505073007 Clear LH Ski Leg. Package-SportClear LH Ski Leg. Package-Sport
-
41505073007 Clear LH Ski Leg. Package-SportClear LH Ski Leg. Package-Sport
-
41505073807 Black LH Ski Leg. Model-Grey-GreyBlack LH Ski Leg. Model-Grey-Grey
-
41505073807 Black LH Ski Leg. Model-Grey-GreyBlack LH Ski Leg. Model-Grey-Grey
-
41505073807 Black LH Ski Leg. Package-SEBlack LH Ski Leg. Package-SE
-
41505073807 Black LH Ski Leg. Package-SEBlack LH Ski Leg. Package-SE
-
41505073008 Clear RH Ski Leg. Package-SportClear RH Ski Leg. Package-Sport
-
41505073008 Clear RH Ski Leg. Package-SportClear RH Ski Leg. Package-Sport
-
41505073808 Black RH Ski Leg. Package-SEBlack RH Ski Leg. Package-SE
-
41505073808 Black RH Ski Leg. Package-SEBlack RH Ski Leg. Package-SE
-
41505073808 Black RH Ski Leg. Model-Grey-GreyBlack RH Ski Leg. Model-Grey-Grey
-
41505073808 Black RH Ski Leg. Model-Grey-GreyBlack RH Ski Leg. Model-Grey-Grey
-
42232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
42232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
44860201043 Round Carbide RunnerRound Carbide Runner
-
44860201043 Round Carbide RunnerRound Carbide Runner
-
44860201043 Round Carbide RunnerRound Carbide Runner
-
44860201043 Round Carbide RunnerRound Carbide Runner
-
44860201044 Carbide Runner KitCarbide Runner Kit
-
44860201044 Carbide Runner KitCarbide Runner Kit
-
44860201044 Carbide Runner KitCarbide Runner Kit
-
44860201044 Carbide Runner KitCarbide Runner Kit
-
44860201178 Carbide Runner KitCarbide Runner Kit
-
44860201178 Carbide Runner KitCarbide Runner Kit
-
49505073412 LH Upper Arm 42''. Except Package-SportLH Upper Arm 42''. Except Package-Sport
-
49505073412 LH Upper Arm 42''. Except Package-SportLH Upper Arm 42''. Except Package-Sport
-
49505073462 Black LH Upper Arm, 42''. Package-SportBlack LH Upper Arm, 42''. Package-Sport
-
49505073462 Black LH Upper Arm, 42''. Package-SportBlack LH Upper Arm, 42''. Package-Sport
-
49505073416 RH Upper Arm 42''. Except Package-SportRH Upper Arm 42''. Except Package-Sport
-
49505073416 RH Upper Arm 42''. Except Package-SportRH Upper Arm 42''. Except Package-Sport
-
49505073463 Black RH Upper Arm, 42''. Package-SportBlack RH Upper Arm, 42''. Package-Sport
-
49505073463 Black RH Upper Arm, 42''. Package-SportBlack RH Upper Arm, 42''. Package-Sport
-
51860201178 Carbide Runner KitCarbide Runner Kit
-
51860201178 Carbide Runner KitCarbide Runner Kit
-
52505073789 Black LH SupportBlack LH Support
-
52505073789 Black LH SupportBlack LH Support
-
52505073792 Black RH SupportBlack RH Support
-
52505073792 Black RH SupportBlack RH Support
-
52415130043 Repair KitRepair Kit
-
52415130043 Repair KitRepair Kit
-
53505073761 TipTip
-
53505073761 TipTip
-
54415130043 Repair KitRepair Kit
-
54415130043 Repair KitRepair Kit
-
55415130043 Repair KitRepair Kit
-
55415130043 Repair KitRepair Kit
-
56505073767 ScrewScrew
-
56505073767 ScrewScrew
-
57415130043 Repair KitRepair Kit
-
57415130043 Repair KitRepair Kit
-
58505073771 ShaftShaft
-
58505073771 ShaftShaft
-
59505073772 GrommetGrommet
-
59505073772 GrommetGrommet
-
60505073773 BushingBushing
-
60505073773 BushingBushing
-
61505073625 Adjustment CamAdjustment Cam
-
61505073625 Adjustment CamAdjustment Cam
-
62505073235 Front Shock. 900 ACEFront Shock. 900 ACE
-
62505073235 Front Shock. 900 ACEFront Shock. 900 ACE
-
62505073139 Front Shock. Package-LE 1200 4-TECFront Shock. Package-LE 1200 4-TEC
-
62505073139 Front Shock. Package-LE 1200 4-TECFront Shock. Package-LE 1200 4-TEC
-
62505073139 Front Shock. Package-SEFront Shock. Package-SE
-
62505073139 Front Shock. Package-SEFront Shock. Package-SE
-
62505073180 Front Shock. Package-SportFront Shock. Package-Sport
-
62505073180 Front Shock. Package-SportFront Shock. Package-Sport
-
63505073779 Ski StopperSki Stopper
-
63505073779 Ski StopperSki Stopper
-
64505073782 PinPin
-
64505073782 PinPin
-
66505073788 Ski StopperSki Stopper
-
66505073788 Ski StopperSki Stopper
-
67505072767 Deep Black Spring. 900 ACEDeep Black Spring. 900 ACE
-
67505072767 Deep Black Spring. 900 ACEDeep Black Spring. 900 ACE
-
67505072993 Deep Black Spring. Package-LE 1200 4-TECDeep Black Spring. Package-LE 1200 4-TEC
-
67505072993 Deep Black Spring. Package-LE 1200 4-TECDeep Black Spring. Package-LE 1200 4-TEC
-
67505072993 Deep Black Spring. Package-SEDeep Black Spring. Package-SE
-
67505072993 Deep Black Spring. Package-SEDeep Black Spring. Package-SE
-
67505073521 Full Moon Spring. Package-SportFull Moon Spring. Package-Sport
-
67505073521 Full Moon Spring. Package-SportFull Moon Spring. Package-Sport
-
68415130043 Repair KitRepair Kit
-
68415130043 Repair KitRepair Kit
-
69706200785 CapCap
-
69706200785 CapCap
-
70706200881 Spring StopperSpring Stopper
-
70706200881 Spring StopperSpring Stopper
-
71250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
71250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
72505072204 Double Ball Joint LinkDouble Ball Joint Link
-
72505072204 Double Ball Joint LinkDouble Ball Joint Link
-
73516005533 Shock Decal, HPG. 900 ACEShock Decal, HPG. 900 ACE
-
73516005533 Shock Decal, HPG. 900 ACEShock Decal, HPG. 900 ACE
-
73516005533 Shock Decal, HPG. Package-LE 1200 4-TECShock Decal, HPG. Package-LE 1200 4-TEC
-
73516005533 Shock Decal, HPG. Package-LE 1200 4-TECShock Decal, HPG. Package-LE 1200 4-TEC
-
73516005533 Shock Decal, HPG. Package-SEShock Decal, HPG. Package-SE
-
73516005533 Shock Decal, HPG. Package-SEShock Decal, HPG. Package-SE
-
73516005535 Shock Decal, Mc. Package-SportShock Decal, Mc. Package-Sport
-
73516005535 Shock Decal, Mc. Package-SportShock Decal, Mc. Package-Sport
Все узлы модели:
- 00- Model Numbers
- 01- Camshafts and Timing Chain - 1200 iTC 4-TEC
- 01- Camshafts and Timing Chain - 600 ACE
- 01- Camshafts and Timing Chain - 900 ACE
- 01- Cooling System - 1200 4-TEC
- 01- Cooling System - 600-900 ACE
- 01- Crankcase - 1200 iTC 4-TEC
- 01- Crankcase - 600 ACE
- 01- Crankcase - 900 ACE
- 01- Crankshaft and Pistons - 600 ACE
- 01- Crankshaft and Pistons - 900 ACE
- 01- Crankshaft, Pistons and Balance Shaft - 1200 iTC 4-TEC
- 01- Cylinder Head - 600 ACE
- 01- Cylinder Head - 900 ACE
- 01- Cylinder Head and Exhaust Manifold - 1200 iTC 4-TEC
- 01- Engine - 1200 4-TEC
- 01- Engine - 900 ACE
- 01- Engine Cooling - 1200iTC 4-TEC (Except GT LE - Renegade Enduro)
- 01- Engine Cooling - 1200iTC 4-TEC (GT LE - Renegade Enduro)
- 01- Engine Cooling - 600 ACE
- 01- Engine Cooling - 900 ACE
- 01- Engine Lubrication - 1200iTC 4-TEC
- 01- Engine Lubrication - 600 ACE
- 01- Engine Lubrication - 900 ACE
- 01- Exhaust System - 1200 4TEC
- 01- Exhaust System - 600 ACE
- 01- Exhaust System - 900 ACE
- 01- Valve Cover - 1200iTC 4-TEC
- 01- Valve Cover - 600 ACE
- 01- Valve Cover - 900 ACE
- 02- Air Intake Manifold and Throttle Body - 1200iTC 4-TEC
- 02- Air Intake Manifold and Throttle Body - 600 ACE
- 02- Air Intake Manifold and Throttle Body - 900 ACE
- 02- Air Intake System
- 02- Fuel System
- 03- Magneto and Electric Starter - 1200iTC 4-TEC
- 03- Magneto and Electric Starter - 600 ACE
- 03- Magneto and Electric Starter - 900 ACE
- 05- Drive System
- 05- Pulley System - 1200 4-TEC
- 05- Pulley System - 600-900 ACE
- 06- Brakes
- • 07- Front Suspension And Ski
- 07- Steering
- 08- Rear Suspension - Package LE
- 08- Rear Suspension - Package SE
- 08- Rear Suspension - Package Sport
- 09- Bottom Pan
- 09- Decals
- 09- Frame - 1200 4-TEC
- 09- Frame - 600-900 ACE
- 09- Hood
- 09- Luggage Rack - Package LE-SE
- 09- Luggage Rack - Package Sport
- 09- Seat
- 09- Utilities - Except Package Sport
- 09- Utilities - Package Sport
- 10- Electrical Harness - 1200 4-TEC
- 10- Electrical Harness - 900 ACE
- 10- Electrical Harness - Package Sport
- 10- Electrical Harness - Reverse
- 10- Electrical System - 1200 4-TEC
- 10- Electrical System - 600 ACE
- 10- Electrical System - 900 ACE
- 10- Engine Harness and Electronic Module - 1200iTC 4-TEC
- 10- Engine Harness and Electronic Module - 600 ACE
- 10- Engine Harness and Electronic Module - 900 ACE
