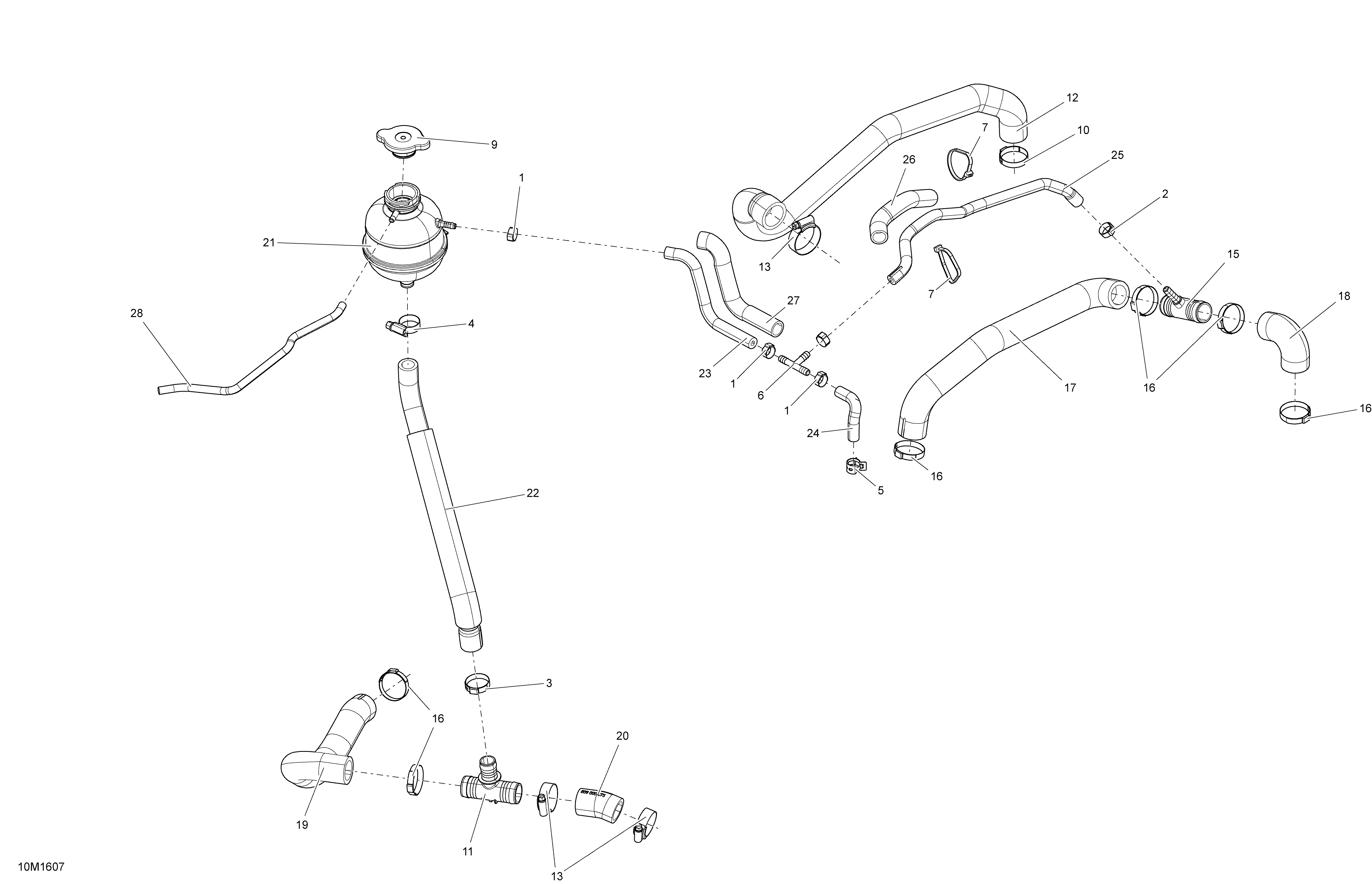

01- Cooling System для BRP Ski-Doo MXZ 600 RS - 2016
-
№АртикулНазвание
-
1293650046 Oetiker ClampOetiker Clamp
-
2293650047 Crimp ClampCrimp Clamp
-
3293650099 Crimp ClampCrimp Clamp
-
4293650124 Norma Gear ClampNorma Gear Clamp
-
5293650210 Spring ClampSpring Clamp
-
6293710024 T-FittingT-Fitting
-
7414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9509000180 Pressure CapPressure Cap
-
10509000181 Oetiker Gear ClampOetiker Gear Clamp
-
11509000372 T-FittingT-Fitting
-
12509000431 Engine Outlet HoseEngine Outlet Hose
-
13509000443 Aba Gear ClampAba Gear Clamp
-
15509000510 T-FittingT-Fitting
-
16509000529 Oetiker Gear ClampOetiker Gear Clamp
-
17509000670 Radiator HoseRadiator Hose
-
18509000671 Radiator HoseRadiator Hose
-
19509000673 Radiator HoseRadiator Hose
-
20509000675 Engine Inlet HoseEngine Inlet Hose
-
21509000802 Coolant TankCoolant Tank
-
22509000901 Filling HoseFilling Hose
-
23509000902 Breather HoseBreather Hose
-
24509000904 Breather HoseBreather Hose
-
25509000905 Rear Breather HoseRear Breather Hose
-
26415080000 Tubing 16 mmTubing 16 mm
-
27415080000 Tubing 16 mmTubing 16 mm
-
28276000048 Hose 6 mmHose 6 mm
