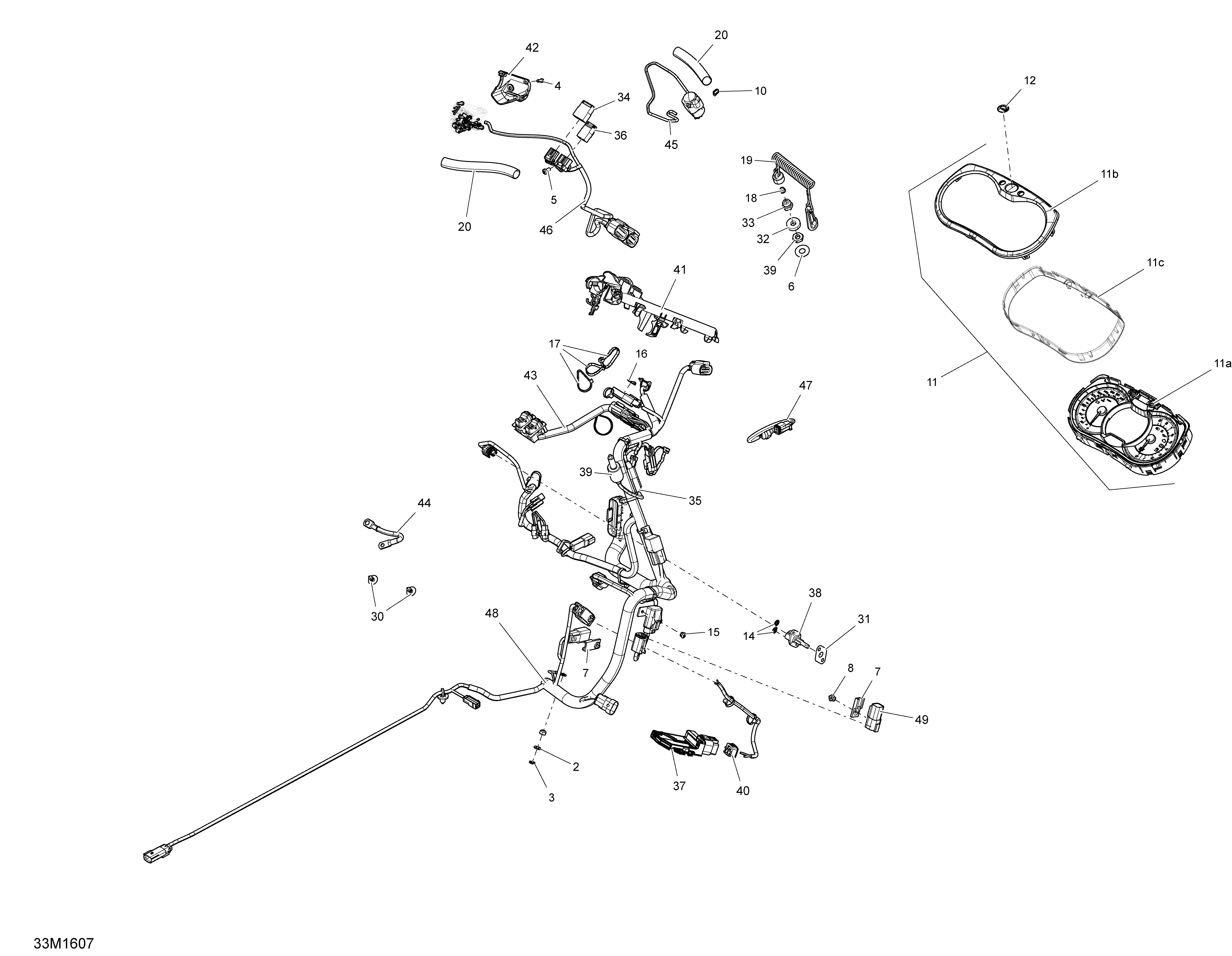

10- Electrical System для BRP Ski-Doo MXZ 600 RS - 2016
-
№АртикулНазвание
-
1232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
2234061410 Flat Washer 6 mmFlat Washer 6 mm
-
3234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
4250000671 Torx ScrewTorx Screw
-
5250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
6250200032 WasherWasher
-
7270000141 ClipClip
-
8293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
10293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
11515177910 SpeedometerSpeedometer
-
11a415129355 Speedometer ButtonSpeedometer Button
-
11b415129348 Gauge RingGauge Ring
-
11c415129349 LensLens
-
12516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
14389804300 Push NutPush Nut
-
15390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
16409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
17293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18570151100 Plunger CapPlunger Cap
-
19515178143 Cap AssemblyCap Assembly
-
20415129879 Protector TubeProtector Tube
-
30414644300 DartDart
-
31508000769 SealSeal
-
32510004418 WasherWasher
-
33515145900 Switch NutSwitch Nut
-
34515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
35515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
36515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
37515176364 Voltage RegulatorVoltage Regulator
-
38515176366 Air Temperature SensorAir Temperature Sensor
-
39515175653 Brake SwitchBrake Switch
-
40515176681 LockLock
-
41515177134 Connector PlateConnector Plate
-
42515177149 LH Switch Housing PlateLH Switch Housing Plate
-
43515177154 Double Switch ModuleDouble Switch Module
-
44515177289 Ground WireGround Wire
-
45515177454 Kill SwitchKill Switch
-
46515177678 LH Switch HousingLH Switch Housing
-
47515177813 Temperature SensorTemperature Sensor
-
48515177994 Wiring HarnessWiring Harness
-
49710003006 HousingHousing
