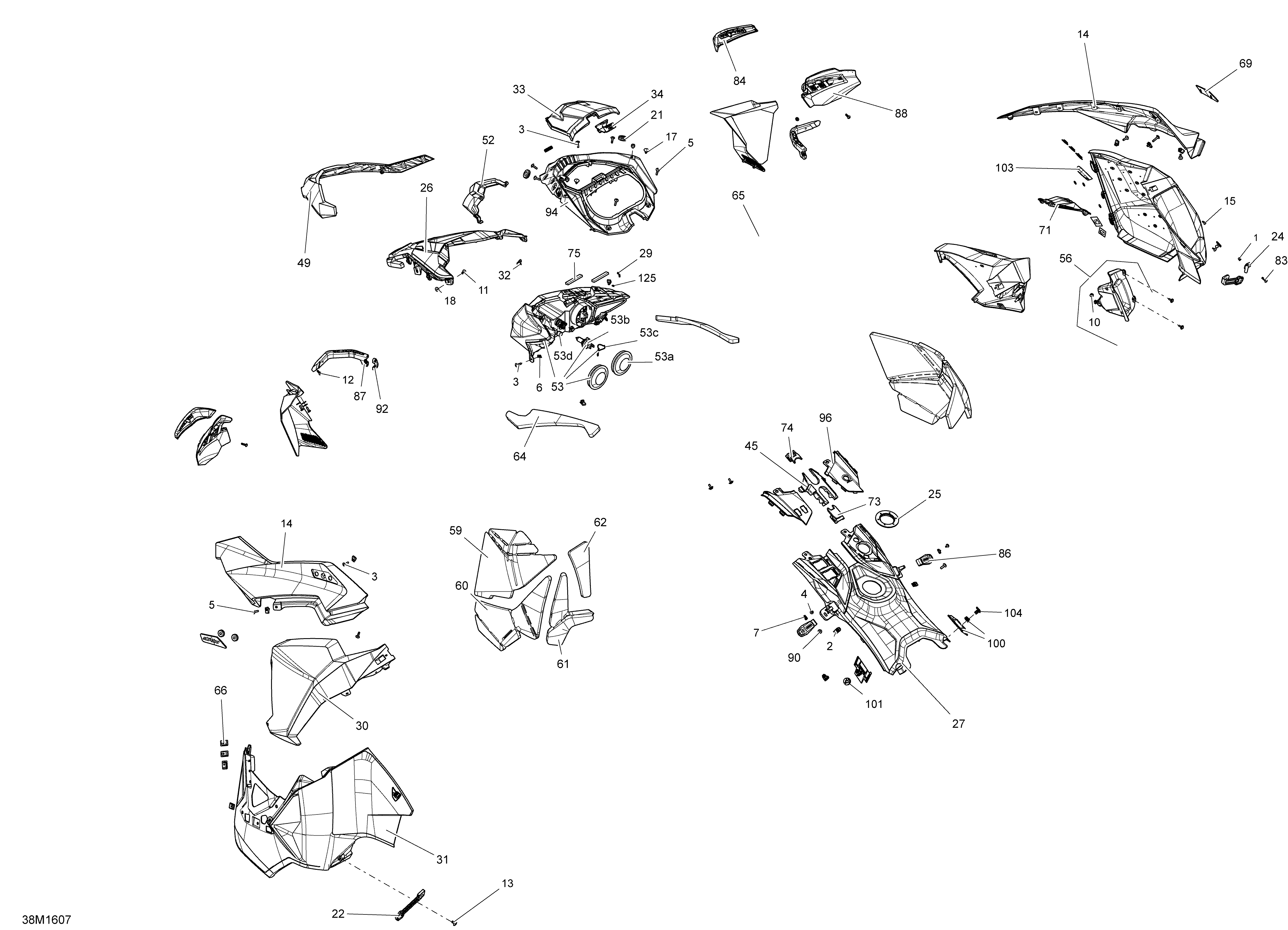

09- Hood для BRP Ski-Doo MXZ 600 RS - 2016
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
4250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
5250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
6250100035 Jack Nut M5Jack Nut M5
-
7250100156 Weld Nut M4Weld Nut M4
-
10275500241 Black CapBlack Cap
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
13293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
14517305880 Hyper Silver - LH HoodHyper Silver - LH Hood
-
14517305879 Hyper Silver - RH HoodHyper Silver - RH Hood
-
15293150170 Pop Rivet 5/32''Pop Rivet 5/32''
-
17414644300 DartDart
-
18517124300 WasherWasher
-
21517303756 GrommetGrommet
-
22517303612 RH Panel LatchRH Panel Latch
-
22517303808 LH Panel LatchLH Panel Latch
-
24517304221 Latch SupportLatch Support
-
25517304518 Console NutConsole Nut
-
26517305562 Yellow Sunburst Center HoodYellow Sunburst Center Hood
-
27517305641 Black Rear ConsoleBlack Rear Console
-
29250000725 Screw M4 X 16Screw M4 X 16
-
30517305925 RH.PanelRH.Panel
-
30517305510 Deep Black LH PanelDeep Black LH Panel
-
30517305508 Black RH PanelBlack RH Panel
-
31517305058 Deep Black RH Panel TrimDeep Black RH Panel Trim
-
32250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
33517304912 Upper Storage Access CoverUpper Storage Access Cover
-
34517304917 Cover LatchCover Latch
-
45517304970 Console SupportConsole Support
-
49517304922 Short Windshield SupportShort Windshield Support
-
52517305936 CapCap
-
53517305762 HeadlampHeadlamp
-
53a219400070 CapCap
-
53b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
53c219800282 Holder BracketHolder Bracket
-
53d219800281 SpringSpring
-
56517305060 Deep Black RH ConsoleDeep Black RH Console
-
59517305082 RH Upper Panel FoamRH Upper Panel Foam
-
59517305086 LH Upper Panel FoamLH Upper Panel Foam
-
60517305087 LH Center Panel FoamLH Center Panel Foam
-
61517305088 LH Lower Panel FoamLH Lower Panel Foam
-
62517305085 RH Rear Panel FoamRH Rear Panel Foam
-
62517305089 LH Rear Panel FoamLH Rear Panel Foam
-
64517305090 RH Rear Hood FoamRH Rear Hood Foam
-
64517305091 LH Rear Hood FoamLH Rear Hood Foam
-
66517305109 Rivet PlateRivet Plate
-
69517305137 RH Hood Filler PlateRH Hood Filler Plate
-
69517305138 LH Hood Filler PlateLH Hood Filler Plate
-
71517305140 RH Panel Vent GridRH Panel Vent Grid
-
71517305715 GrillGrill
-
73517305148 Support Console CapSupport Console Cap
-
73517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
75517305157 Seal JointSeal Joint
-
83250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
84517305588 RH CapRH Cap
-
84517305589 LH CapLH Cap
-
86517305279 Panel LatchPanel Latch
-
87517305293 RH ArmRH Arm
-
87517305290 LH ArmLH Arm
-
88517305294 RH DeflectorRH Deflector
-
88517305291 LH DeflectorLH Deflector
-
90250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
92517305296 BrideBride
-
94517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
96517305183 Deep Black RH Front ConsoleDeep Black RH Front Console
-
96517305128 Deep Black LH Front ConsoleDeep Black LH Front Console
-
96517305513 Deep Black LH Front ConsoleDeep Black LH Front Console
-
96517306022 Console-FrontConsole-Front
-
100517305724 RH Panel Clip Ass'yRH Panel Clip Ass'y
-
100517305722 LH Panel Clip Ass'yLH Panel Clip Ass'y
-
101517305723 RingRing
-
104517305734 PinPin
-
125250100158 Push NutPush Nut
