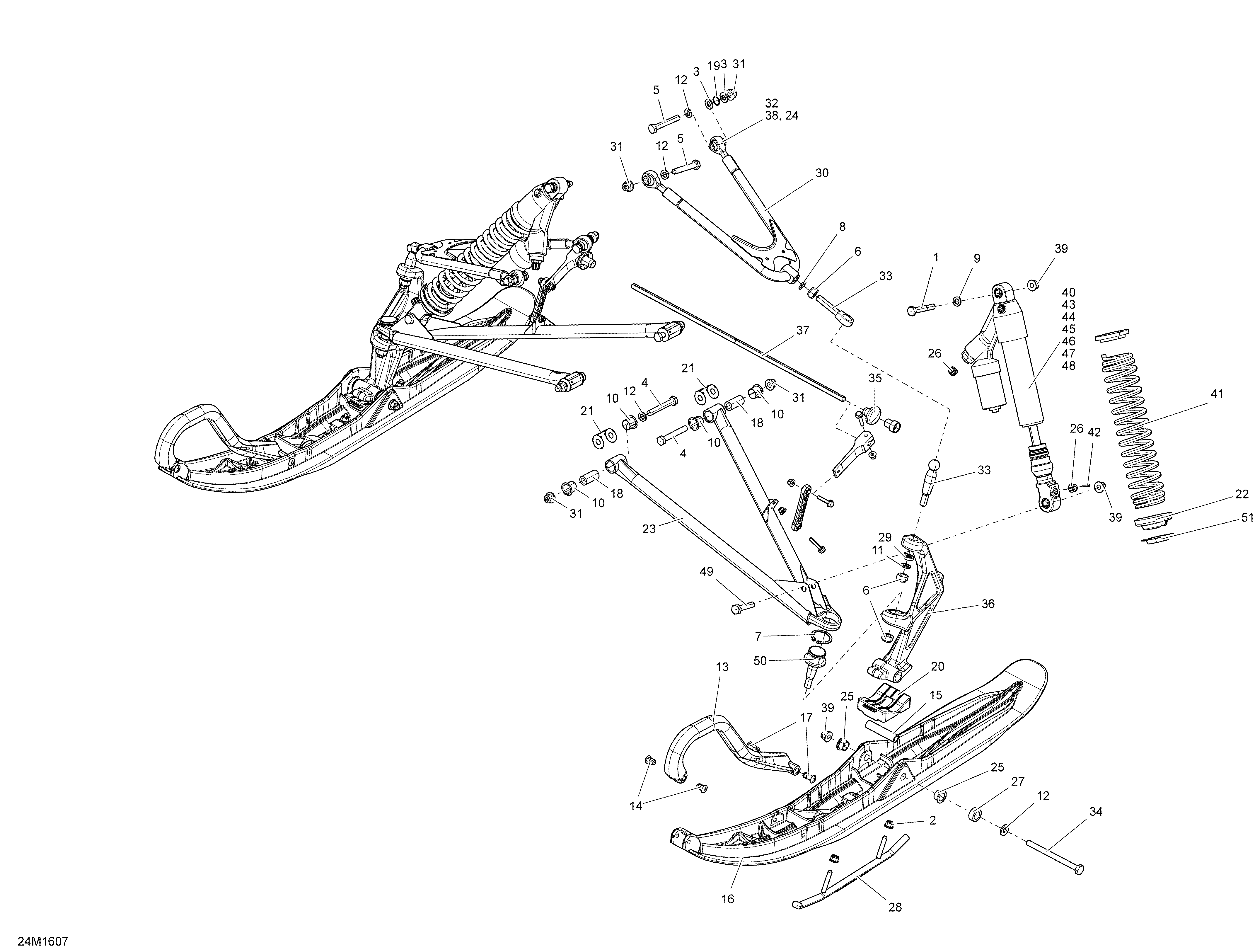

07- Front Suspension And Ski для BRP Ski-Doo MXZ 600 RS - 2016
-
№АртикулНазвание
-
1207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3234001410 Flat Washer 10 mmFlat Washer 10 mm
-
4250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
5250000387 Screw Hex. M10 X 65Screw Hex. M10 X 65
-
6250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
6232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
7293370035 CirclipCirclip
-
8503189276 WasherWasher
-
9503189564 WasherWasher
-
10503191766 CushionCushion
-
11503192491 WasherWasher
-
12503192496 WasherWasher
-
13505073138 Black HandleBlack Handle
-
14505071812 RetainerRetainer
-
15506133300 SpacerSpacer
-
16505072205 Black Pilot Ski 5.7XBlack Pilot Ski 5.7X
-
17505072133 RetainerRetainer
-
18505072401 Aluminum BushingAluminum Bushing
-
19505072448 O-RingO-Ring
-
20505072594 Ski StopperSki Stopper
-
21505072634 Wear PlateWear Plate
-
22505072635 Spring StopperSpring Stopper
-
23505072654 RH Lower ArmRH Lower Arm
-
23505072655 LH Lower ArmLH Lower Arm
-
24232026414 Nut Hexagonal RH.Nut Hexagonal RH.
-
25505072690 Leg CushionLeg Cushion
-
26505072753 Adjustment KnobAdjustment Knob
-
27505072807 SpacerSpacer
-
28860201043 Round Carbide RunnerRound Carbide Runner
-
29505073506 SpacerSpacer
-
30505073528 RH Upper ArmRH Upper Arm
-
30505073527 LH Upper ArmLH Upper Arm
-
31250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
32505073534 RH Upper Arm. includes 30, 38, 24RH Upper Arm. includes 30, 38, 24
-
32505073533 Arm-Upper Left. includes 30, 38, 24Arm-Upper Left. includes 30, 38, 24
-
33505073561 Upper Ball JointUpper Ball Joint
-
34250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
35572091300 CapCap
-
36505074011 Leg-Ski Mach. RH.Leg-Ski Mach. RH.
-
36505074010 Leg-Ski Mach. LH.Leg-Ski Mach. LH.
-
37505072602 StabilisatorStabilisator
-
38505073532 Ball JointBall Joint
-
39233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
40505073695 RH Front ShockRH Front Shock
-
40505073694 LH Front ShockLH Front Shock
-
41505073537 Deep Black SpringDeep Black Spring
-
42250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
43415093807 O-RingO-Ring
-
44415093806 Piston RingPiston Ring
-
45505070398 Air ValveAir Valve
-
46505070399 ScrewScrew
-
47505070400 O-RingO-Ring
-
48415093804 O-RingO-Ring
-
49207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
50505073636 Ball JointBall Joint
-
51706200793 CapCap
