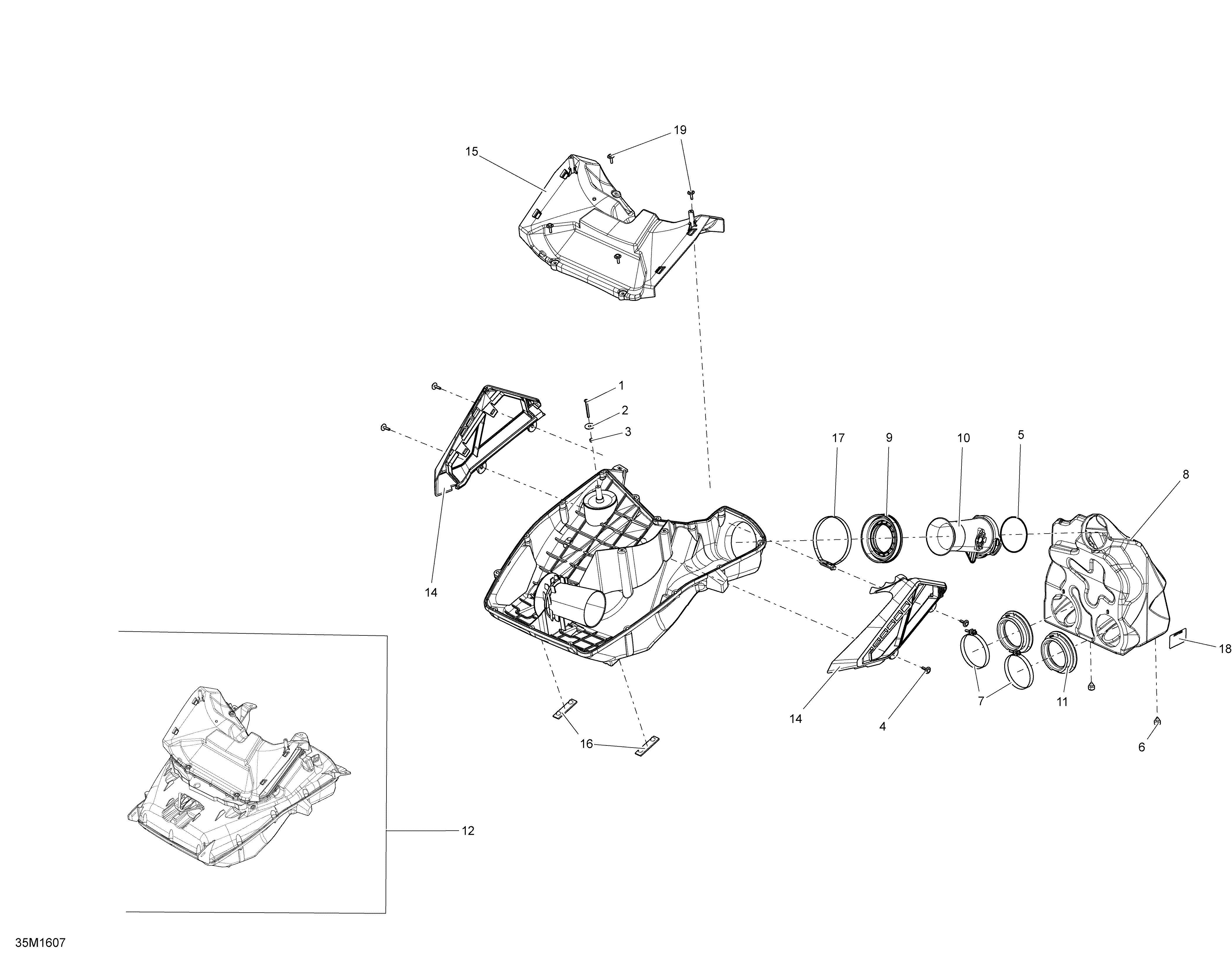

02- Air Intake System для BRP Ski-Doo MXZ 600 RS - 2016
-
№АртикулНазвание
-
1205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
2224060201 Flat WasherFlat Washer
-
3232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
4250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
5293300115 O-RingO-Ring
-
6293830005 Rubber BumperRubber Bumper
-
7508000346 Gemi ClampGemi Clamp
-
8508000535 Primary Chamber Ass'yPrimary Chamber Ass'y
-
9508000567 BootBoot
-
10508000662 FluteFlute
-
11508000721 Intake AdapterIntake Adapter
-
12508000722 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
14508000730 RH Air FilterRH Air Filter
-
14508000731 LH Air FilterLH Air Filter
-
15508000732 Air DuctAir Duct
-
16508000744 StopperStopper
-
17514052924 Norma ClampNorma Clamp
-
18516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
19250000725 Screw M4 X 16Screw M4 X 16
