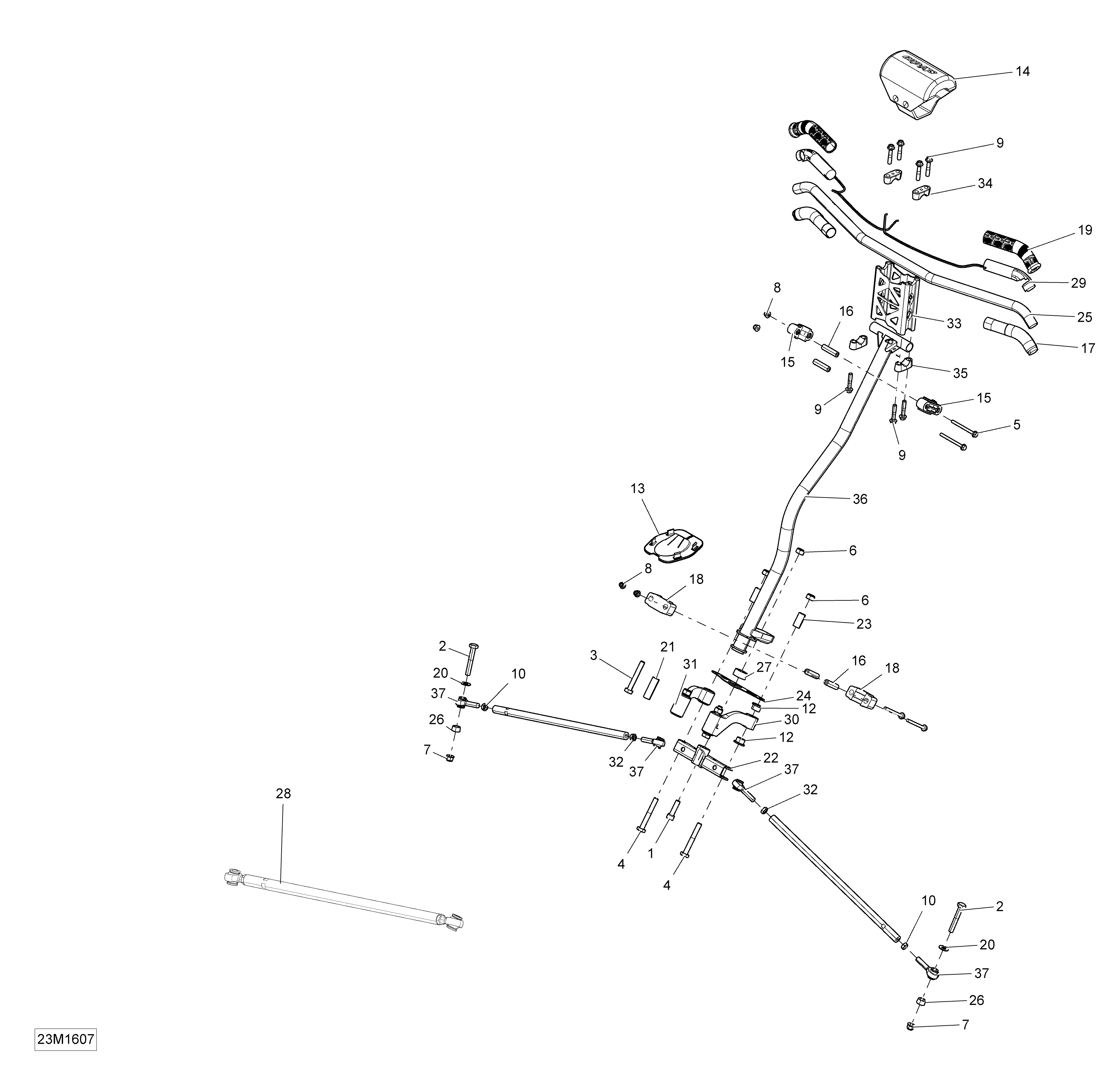

07- Steering для BRP Ski-Doo MXZ 600 RS - 2016
-
№АртикулНазвание
-
1205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
2207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
3207007044 Hex. Screw M10 X 70Hex. Screw M10 X 70
-
4207007544 Hex. Screw M10 x 75Hex. Screw M10 x 75
-
5207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
6232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
7233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
8233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
10250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
11293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
12505072690 Leg CushionLeg Cushion
-
13506152163 PlatePlate
-
14506152522 Steering PadSteering Pad
-
15506152293 Half-HousingHalf-Housing
-
16506152297 Housing BushingHousing Bushing
-
17506152548 InsulantInsulant
-
18506152549 Lower Half-HousingLower Half-Housing
-
19506152560 Grip 148mmGrip 148mm
-
20506152582 WasherWasher
-
21506152691 Swivel PivotSwivel Pivot
-
22506152693 Welded Swivel BarWelded Swivel Bar
-
23506152696 Swivel PivotSwivel Pivot
-
24506152697 PlatePlate
-
25506152712 Full Moon Hand BarFull Moon Hand Bar
-
26506152713 WasherWasher
-
27506152714 BearingBearing
-
28506152715 Rod Ass'yRod Ass'y
-
29506152674 Heating Element 20 WATTHeating Element 20 WATT
-
30506152719 LH Swivel Arm Ass'yLH Swivel Arm Ass'y
-
31506152720 RH Swivel Arm Ass'yRH Swivel Arm Ass'y
-
32732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
33506152616 Black Handlebar ExtensionBlack Handlebar Extension
-
34506152750 Steering SupportSteering Support
-
35548873704 Steering SupportSteering Support
-
36506152851 Tube - Main PaintTube - Main Paint
-
37506152019 RH Thread Ball JointRH Thread Ball Joint
-
37506152081 LH Thread Ball JointLH Thread Ball Joint
