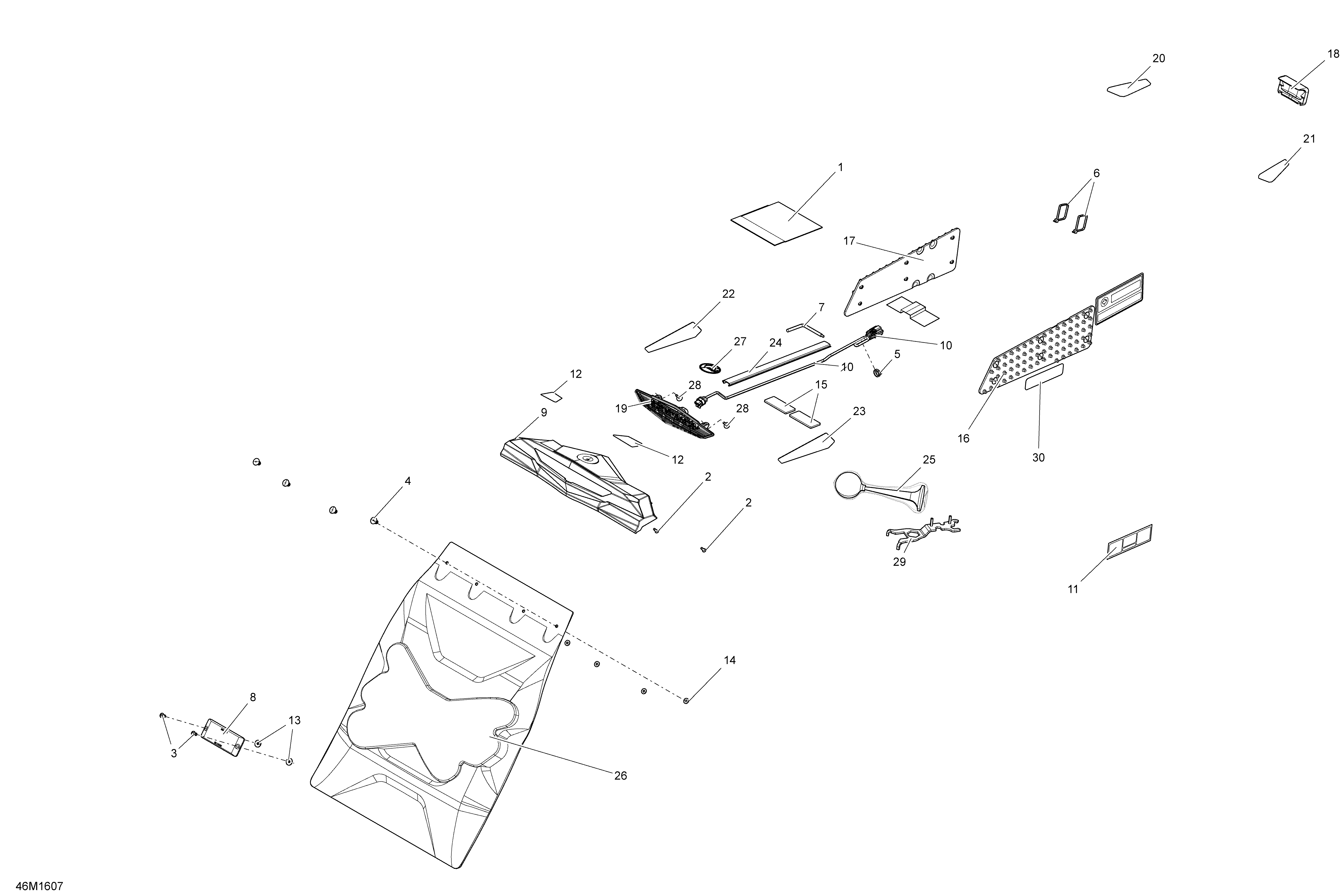

09- Utilities для BRP Ski-Doo MXZ 600 RS - 2016
-
№АртикулНазвание
-
1219400038 Form WarantyForm Waranty
-
1219400038 Form WarantyForm Waranty
-
2241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
3293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
6293750018 Tie Rap 371 mmTie Rap 371 mm
-
7417127044 Belt Installation ToolBelt Installation Tool
-
8510004350 LensLens
-
9511000810 Light FairingLight Fairing
-
10515178062 Wiring HarnessWiring Harness
-
11516003647 Decal XDecal X
-
12516006914 Security Label, XSSecurity Label, XS
-
12516005058 Warning Decal, SafetyWarning Decal, Safety
-
13517124300 WasherWasher
-
14517225900 Flat WasherFlat Washer
-
15520000271 Amber ReflectorAmber Reflector
-
15415037900 White ReflectorWhite Reflector
-
16860200164 Grip Plate KitGrip Plate Kit
-
17860200164 Grip Plate KitGrip Plate Kit
-
18520000871 Reflector SupportReflector Support
-
19520001143 Rear LightRear Light
-
20520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
21520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
22520001238 Red LH Rear ReflectorRed LH Rear Reflector
-
22520001240 Yellow LH Rear ReflectorYellow LH Rear Reflector
-
23520001239 Red RH Rear ReflectorRed RH Rear Reflector
-
23520001241 Yellow RH Rear ReflectorYellow RH Rear Reflector
-
24520000829 Radiator TrimRadiator Trim
-
25549011291 HornHorn
-
26520001441 Snow FlapSnow Flap
-
27516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
28250000725 Screw M4 X 16Screw M4 X 16
-
29520001499 WrenchWrench
-
30516006804 ''CE'' Decal.''CE'' Decal.
