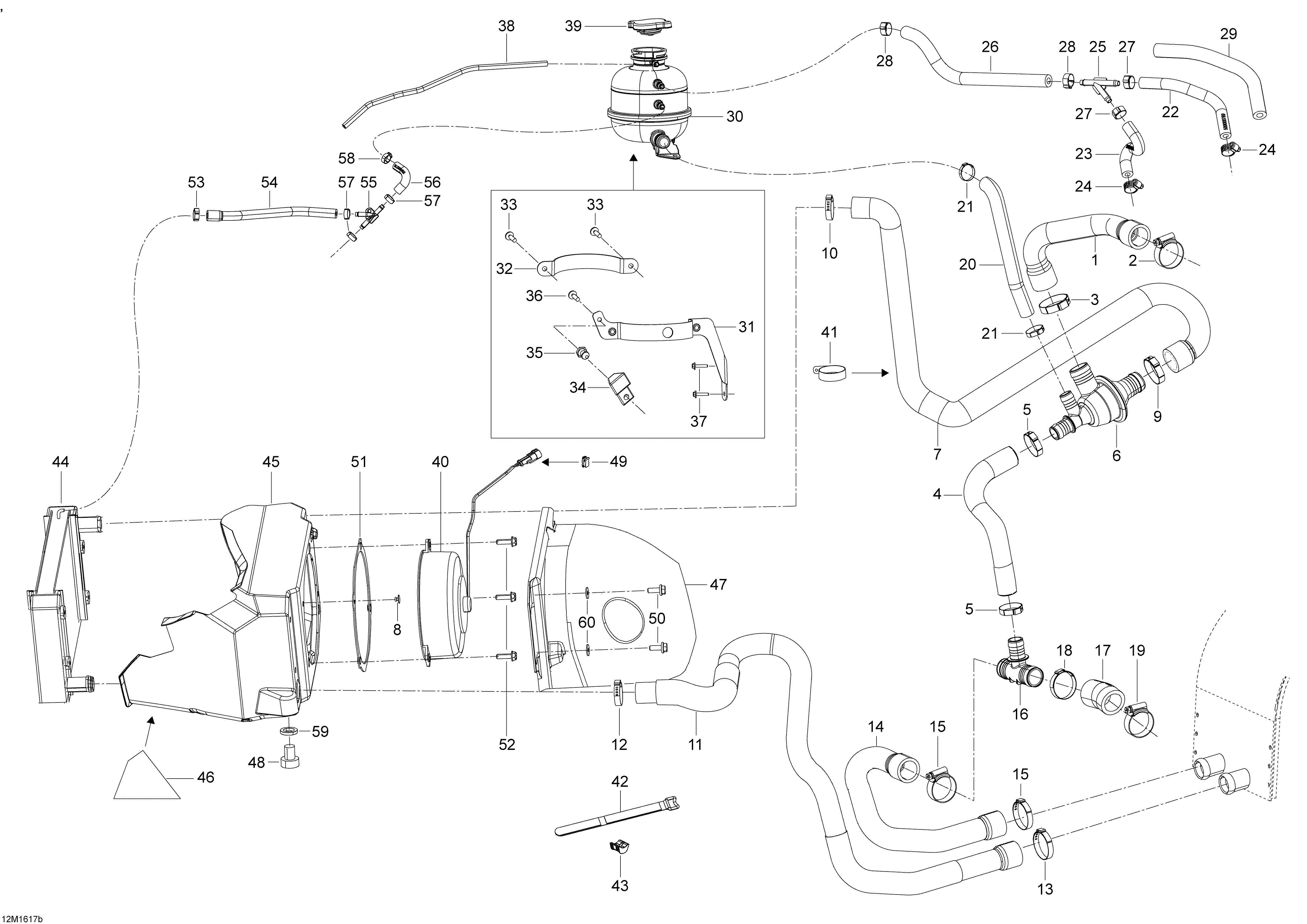

01- Cooling System - 600 E-TEC для BRP Ski-Doo SKANDIC - 2-STROKE - 2016
-
№АртикулНазвание
-
1509000595 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Gear ClampGear Clamp
-
3509000181 Crimp ClampCrimp Clamp
-
4509000523 Bypass HoseBypass Hose
-
5293650099 Crimp ClampCrimp Clamp
-
6509000499 Thermostat Housing (Incl. Thermostat, 37 Deg.)Thermostat Housing (Incl. Thermostat, 37 Deg.)
-
7509000737 Thermostat Outlet HoseThermostat Outlet Hose
-
8293150102 RivetRivet
-
9509000181 Gear ClampGear Clamp
-
10293650099 Crimp ClampCrimp Clamp
-
11509000588 HoseHose
-
12293650099 Crimp ClampCrimp Clamp
-
13509000443 Gear ClampGear Clamp
-
14509000589 Radiator HoseRadiator Hose
-
15509000443 Gear ClampGear Clamp
-
16509000372 T-FittingT-Fitting
-
17509000675 Radiator HoseRadiator Hose
-
18509000181 Crimp ClampCrimp Clamp
-
19509000443 Gear ClampGear Clamp
-
20509000736 Filler HoseFiller Hose
-
21509000442 Oetiker Gear ClampOetiker Gear Clamp
-
22509000769 HoseHose
-
23509000768 HoseHose
-
24293650170 Gear ClampGear Clamp
-
25293710059 Y-ConnectorY-Connector
-
26509000878 Breather HoseBreather Hose
-
27293650046 Crimp ClampCrimp Clamp
-
28293650047 Crimp ClampCrimp Clamp
-
29513033231 Protector TubeProtector Tube
-
30509000368 Coolant TankCoolant Tank
-
31509000852 SupportSupport
-
32509000608 SupportSupport
-
33250000676 Forming Screw Torx M5 x 16Forming Screw Torx M5 x 16
-
34509000609 SupportSupport
-
35517303439 KnobKnob
-
36250000720 Torx Truss Screw K50 x 16Torx Truss Screw K50 x 16
-
37250000725 Plastite Screw K4 x 16Plastite Screw K4 x 16
-
38276000048 Hose (750mm)Hose (750mm)
-
39509000180 Pressure CapPressure Cap
-
40509000837 Cooling FanCooling Fan
-
4127011 Clamp With RubberClamp With Rubber
-
42508000820 Velcro StripVelcro Strip
-
43508000572 BumperBumper
-
44509000756 RadiatorRadiator
-
45509000739 Cooling Fan ShroudCooling Fan Shroud
-
46509000615 FoamFoam
-
47509000558 DeflectorDeflector
-
48570044700 Rubber BumperRubber Bumper
-
49710000992 ClipClip
-
50207661244 Screw M6 x 12Screw M6 x 12
-
51509000614 SupportSupport
-
52210262040 Forming Screw M6 x 20Forming Screw M6 x 20
-
53293650053 Crimp ClampCrimp Clamp
-
54509000880 Formed HoseFormed Hose
-
55293710140 Y-ConnectorY-Connector
-
56509000879 Formed HoseFormed Hose
-
57293650047 Crimp ClampCrimp Clamp
-
58293650047 Crimp ClampCrimp Clamp
-
59505072579 SpacerSpacer
-
60234062410 Flat WasherFlat Washer
