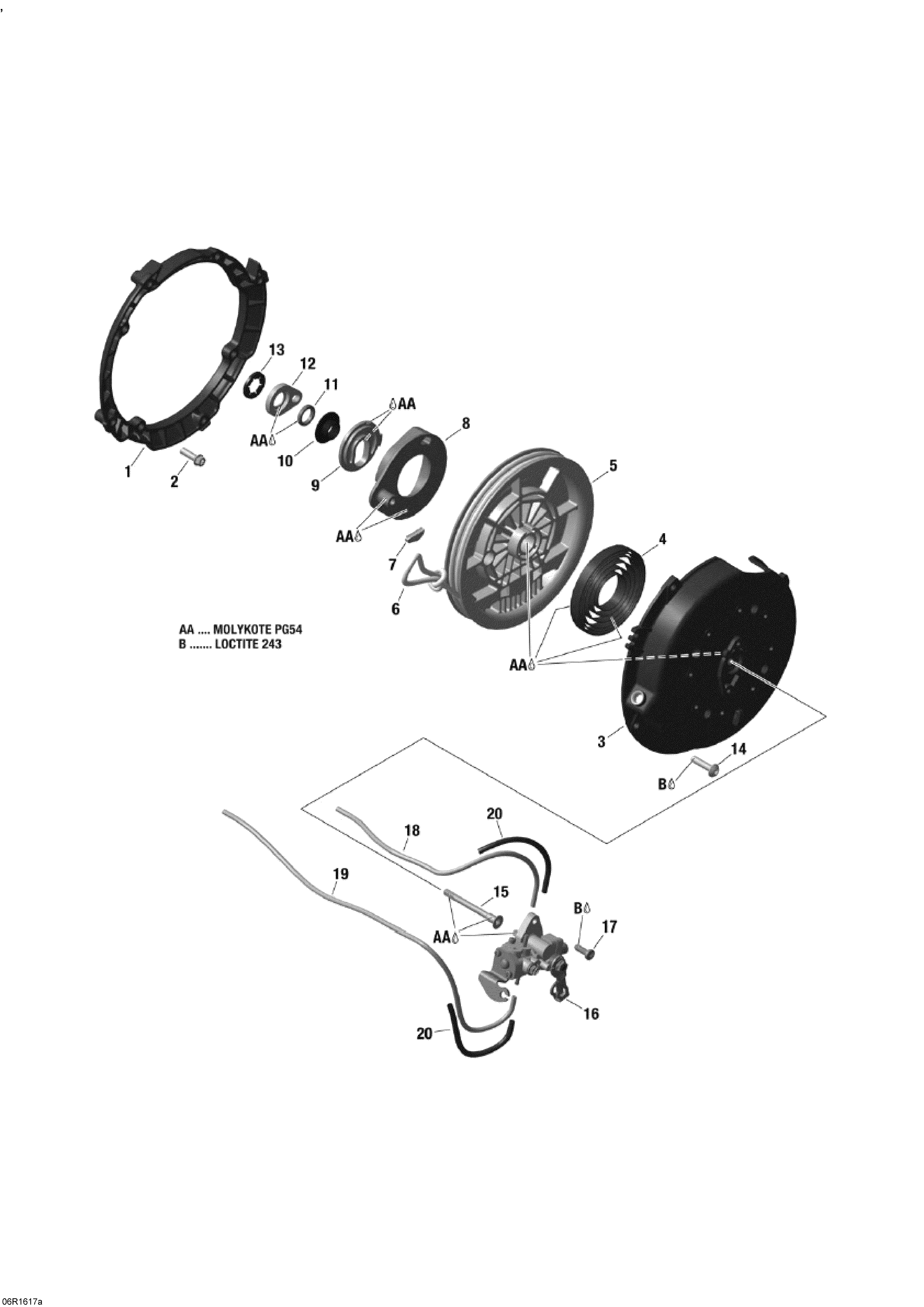

04- Rewind Starter And Oil Pump - 550F для BRP Ski-Doo SKANDIC - 2-STROKE - 2016
-
№АртикулНазвание
-
1420810955 Connecting FlangeConnecting Flange
-
2420440207 Torx Flange Screw M6 x 20. Tightening Torque 6-7 NmTorx Flange Screw M6 x 20. Tightening Torque 6-7 Nm
-
-420890175 Rewind Starter Ass'y. Includes 3 To 12Rewind Starter Ass'y. Includes 3 To 12
-
4420939115 Rewind Spring Ass'yRewind Spring Ass'y
-
5420852480 Rope SheaveRope Sheave
-
6412500200 Starter Rope (2200mm)Starter Rope (2200mm)
-
7420852070 Key ClampKey Clamp
-
8420852296 PawlPawl
-
9420852640 Pawl LockPawl Lock
-
10420847926 Step CollarStep Collar
-
11420250400 O-RingO-Ring
-
12420852520 Lock LeverLock Lever
-
13420845560 Locking ElementLocking Element
-
14420940431 Plastite Screw M6 x 25. Tightening Torque 7-8 NmPlastite Screw M6 x 25. Tightening Torque 7-8 Nm
-
15420820090 Oil Pump ShaftOil Pump Shaft
-
16420892291 Oil Pump Ass'yOil Pump Ass'y
-
17420841971 Plastite Screw 5.5 x 16. Tightening Torque 4-5 NmPlastite Screw 5.5 x 16. Tightening Torque 4-5 Nm
-
18414413800 Oil Line (300mm)Oil Line (300mm)
-
19414413800 Oil Line (440mm)Oil Line (440mm)
-
20420960728 Isolating Hose (120mm)Isolating Hose (120mm)
