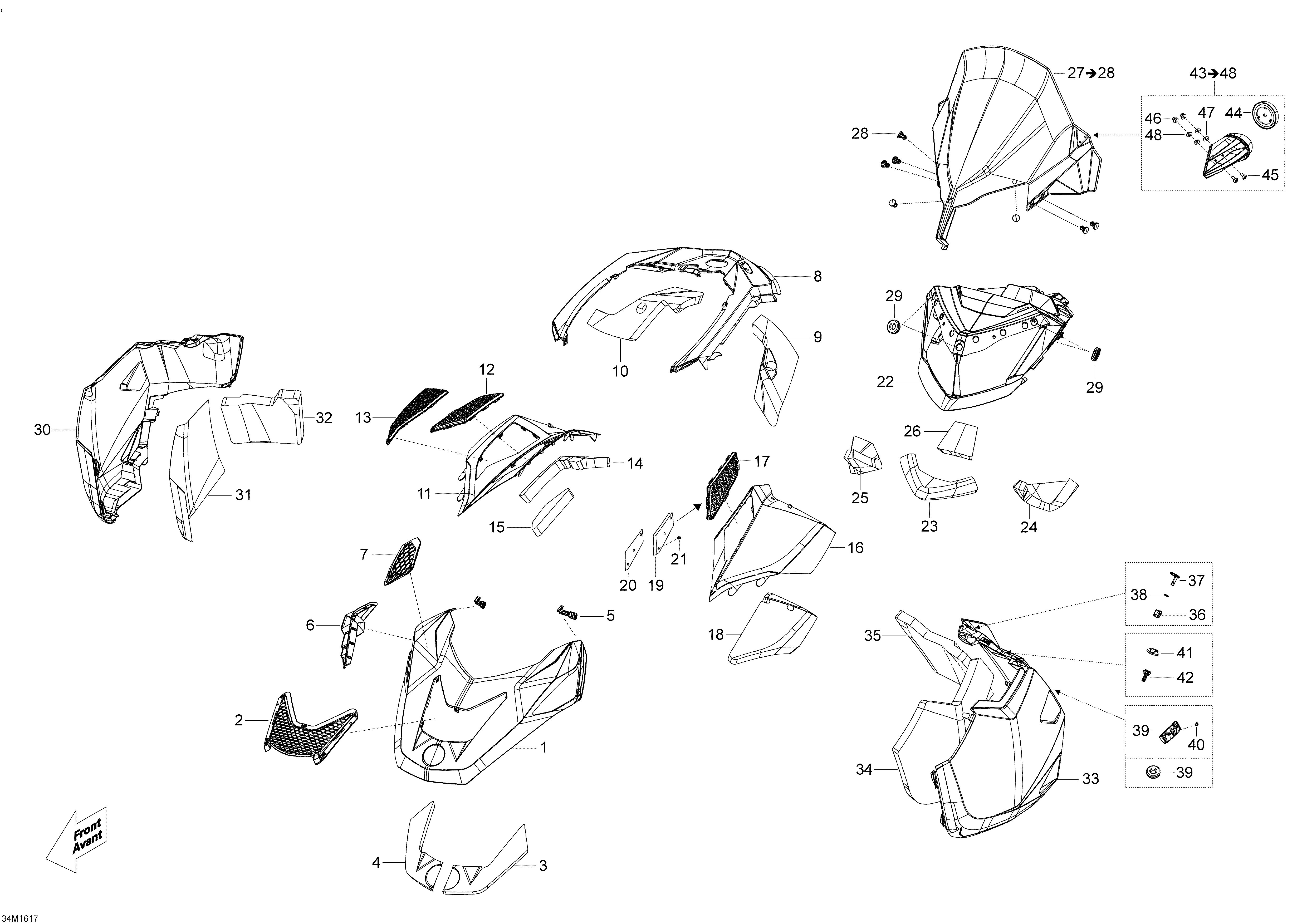

09- Hood для BRP Ski-Doo SKANDIC - 2-STROKE - 2016
-
№АртикулНазвание
-
1517306012 Gray Hood. Model-550FGray Hood. Model-550F
-
1517305440 Gray Hood. Model-600 E-TECGray Hood. Model-600 E-TEC
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 LatchLatch
-
6517304855 Intake Grill. Model-550FIntake Grill. Model-550F
-
6517304155 Scoop Grill. Model-600 E-TECScoop Grill. Model-600 E-TEC
-
7517304584 Intake Grill. Model-550FIntake Grill. Model-550F
-
8517304820 Black ConsoleBlack Console
-
9517305644 InsulatorInsulator
-
10517304318 InsulatorInsulator
-
11517305446 Gray RH Side Access PanelGray RH Side Access Panel
-
12517304015 RH Access Panel GrillRH Access Panel Grill
-
13517304016 RH Lower Access Panel GrillRH Lower Access Panel Grill
-
14517304311 InsulatorInsulator
-
15517305987 InsulatorInsulator
-
16517305450 Gray LH Side Access PanelGray LH Side Access Panel
-
17517303893 LH Access Panel Grill. Model-600 E-TECLH Access Panel Grill. Model-600 E-TEC
-
18517304313 InsulatorInsulator
-
19517305311 Insulator. Model-600 E-TECInsulator. Model-600 E-TEC
-
20502007312 Grill Plate. Model-600 E-TECGrill Plate. Model-600 E-TEC
-
21414644300 Dart. Model-600 E-TECDart. Model-600 E-TEC
-
22517304002 Indicator Support. Model-550FIndicator Support. Model-550F
-
22517304272 Indicator Support. Model-600 E-TECIndicator Support. Model-600 E-TEC
-
23517304314 InsulatorInsulator
-
24517304315 InsulatorInsulator
-
25517304316 InsulatorInsulator
-
26517304319 InsulatorInsulator
-
27860201000 Windshield (580) Ass'y. Includes 27 To 28Windshield (580) Ass'y. Includes 27 To 28
-
28517304744 KnobKnob
-
29517303756 GrommetGrommet
-
30517304328 Black RH Side PanelBlack RH Side Panel
-
31517304709 RH FoamRH Foam
-
32517304310 RH Foam RearRH Foam Rear
-
33517304329 Black LH Side PanelBlack LH Side Panel
-
34517304707 LH FoamLH Foam
-
35517304309 LH Foam RearLH Foam Rear
-
36517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
37517304296 Quarter-Turn HandleQuarter-Turn Handle
-
38517304538 Locking PlateLocking Plate
-
39517304497 Side Panel Support. Model-WTSide Panel Support. Model-WT
-
39517303756 Grommet. Model-SWTGrommet. Model-SWT
-
40293150211 Rivet. Model-WTRivet. Model-WT
-
41860200239 End PieceEnd Piece
-
42517306057 Latch-PanelLatch-Panel
-
43517305787 RH/LH Mirror Ass'y. Includes 43 To 48RH/LH Mirror Ass'y. Includes 43 To 48
-
45250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
46232361493 Hex. Domed Nut M6Hex. Domed Nut M6
-
47250200024 Rubber Washer M5Rubber Washer M5
-
4820117 WasherWasher
