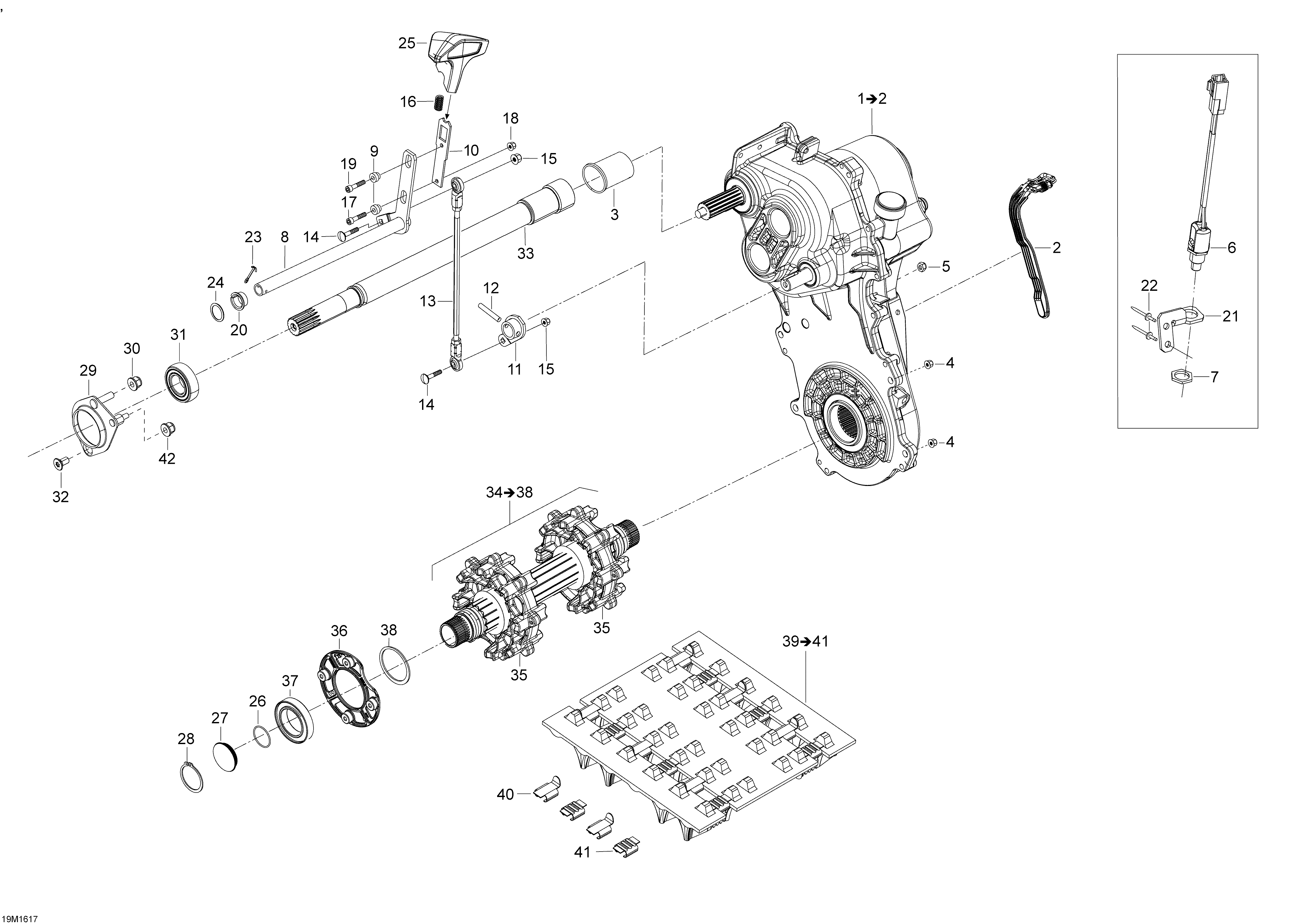

05- Drive System для BRP Ski-Doo SKANDIC - 2-STROKE - 2016

№

Артикул

Название
1

619230063 Transmission Ass'y (Slow Ratio). Includes 1 To 2, Model-WT

Transmission Ass'y (Slow Ratio). Includes 1 To 2, Model-WT

201 940 ₽
1

619230064 Transmission Ass'y (Fast Ratio). Includes 1 To 2, Model-SWT

Transmission Ass'y (Fast Ratio). Includes 1 To 2, Model-SWT

0 ₽
2

504152896 Sensor

Sensor

8 740 ₽
3

504153054 Protective Rubber

Protective Rubber

5 740 ₽
4

233281414 Elastic Flanged Nut M8

Elastic Flanged Nut M8

490 ₽
5

232581414 Elastic Stop Nut M8

Elastic Stop Nut M8

210 ₽
6

515176472 Switch

Switch

23 840 ₽
7

250000373 Nut

Nut

2 440 ₽
8

504153288 Shifter

Shifter

11 770 ₽
9

504152787 Sleeve

Sleeve

9 280 ₽
10

504153287 Shifter Arm

Shifter Arm

16 700 ₽
11

504153280 Lever. Model-WT

Lever. Model-WT

6 700 ₽
11

504153278 Lever. Model-SWT

Lever. Model-SWT

26 010 ₽
12

41012 Spring Pin 6 x 30

Spring Pin 6 x 30

450 ₽
13

504153258 Shifter Rod

Shifter Rod

3 850 ₽
14

250000677 Bolt Carriage M6 x 20

Bolt Carriage M6 x 20

740 ₽
15

232561434 Elastic Stop Nut M6

Elastic Stop Nut M6

740 ₽
16

504152882 Spring

Spring

11 450 ₽
17

205052544 Socket Head Screw M5 x 25

Socket Head Screw M5 x 25

600 ₽
18

233251434 Nut M5

Nut M5

740 ₽
19

250000676 Forming Screw M5 x 16

Forming Screw M5 x 16

360 ₽
20

504152890 Bushing

Bushing

14 840 ₽
21

504152902 Sensor Bracket

Sensor Bracket

1 130 ₽
22

293150163 Rivet

Rivet

1 040 ₽
23

250400035 Cotter Pin

Cotter Pin

200 ₽
24

503189273 Washer

Washer

1 730 ₽
25

504152837 Shifter Handle

Shifter Handle

24 150 ₽
26

293300122 O-Ring

O-Ring

680 ₽
27

504152619 Magnetic Cap

Magnetic Cap

8 050 ₽
28

504152572 Circlip

Circlip

3 130 ₽
29

504153187 Bearing Housing

Bearing Housing

7 420 ₽
30

233281414 Elastic Flange Nut M8

Elastic Flange Nut M8

490 ₽
31

293350074 Ball Bearing

Ball Bearing

10 120 ₽
32

235381646 Torx Screw M8 x 16

Torx Screw M8 x 16

900 ₽
33

504152963 Counter Shaft. Model-WT

Counter Shaft. Model-WT

59 540 ₽
33

504153070 Counter Shaft. Model-SWT

Counter Shaft. Model-SWT

80 150 ₽
34

504153208 Drive Axle Ass'y. Includes 34 To 38, Model-WT 550F

Drive Axle Ass'y. Includes 34 To 38, Model-WT 550F

31 880 ₽
34

504153210 Drive Axle Ass'y. Includes 34 To 38, Model-WT 600 E-TEC

Drive Axle Ass'y. Includes 34 To 38, Model-WT 600 E-TEC

53 640 ₽
34

504153203 Drive Axle Ass'y. Includes 34 To 38, Model-SWT 600 E-TEC

Drive Axle Ass'y. Includes 34 To 38, Model-SWT 600 E-TEC

63 380 ₽
35

504153137 RH/LH Sprocket (8 T). Model-SWT 600 E-TEC

RH/LH Sprocket (8 T). Model-SWT 600 E-TEC

2 680 ₽
36

504152949 Retaining Ring

Retaining Ring

1 330 ₽
37

293350059 Ball Bearing

Ball Bearing

21 110 ₽
38

504153207 Shim

Shim

3 180 ₽
39

605613004 Track Ass'y (500 x 3923 x 38). Includes 39 To 41, Model-WT

Track Ass'y (500 x 3923 x 38). Includes 39 To 41, Model-WT

127 580 ₽
39

504153264 Track Ass'y (600 x 3968 x 32). Includes 39 To 41, Model-SWT

Track Ass'y (600 x 3968 x 32). Includes 39 To 41, Model-SWT

127 190 ₽
40

415129528 Guide

Guide

1 040 ₽
41

504152651 Cleat

Cleat

2 770 ₽
42

233261414 Elastic Flange Nut M6

Elastic Flange Nut M6

490 ₽
