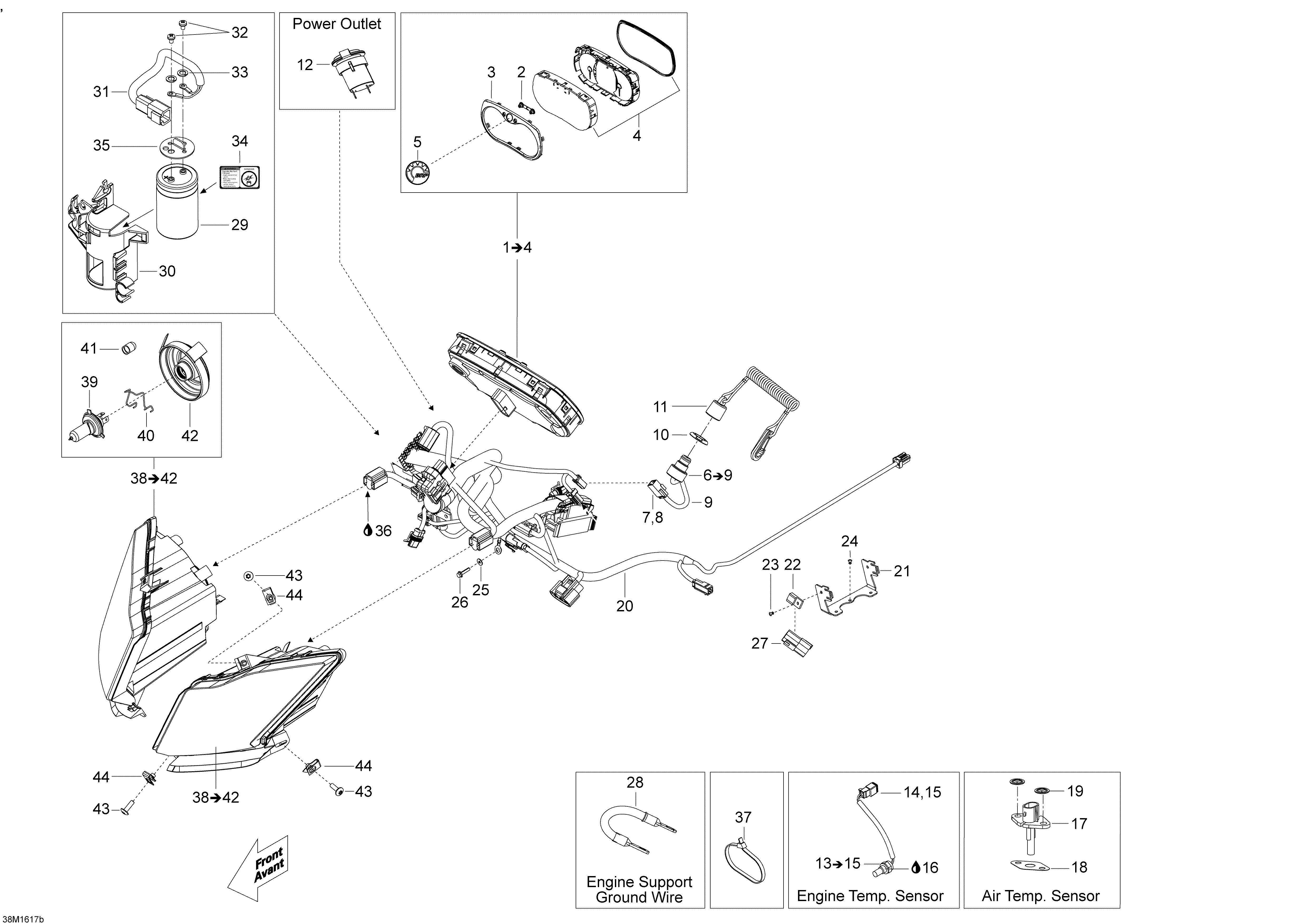

10- Electrical System - 600 E-TEC для BRP Ski-Doo SKANDIC - 2-STROKE - 2016
-
№АртикулНазвание
-
1515177914 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 TubingTubing
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515178146 DESS CapDESS Cap
-
12710001248 DC Power OutletDC Power Outlet
-
13515177813 Temperature Sensor. Includes 13 To 15Temperature Sensor. Includes 13 To 15
-
14515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
15278000632 Female TerminalFemale Terminal
-
17515176366 Air Temperature SensorAir Temperature Sensor
-
18508000769 RingRing
-
19389804300 Push NutPush Nut
-
20515177941 Main HarnessMain Harness
-
21515177925 Fusebox SupportFusebox Support
-
22270000141 ClipClip
-
23293150037 RivetRivet
-
24390402200 Pop Rivet 3/16Pop Rivet 3/16
-
25234141601 Lock Washer M4Lock Washer M4
-
26250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
27710003006 HousingHousing
-
28515177289 Ground WireGround Wire
-
29515177272 CapacitorCapacitor
-
30515176607 SupportSupport
-
31515176605 HarnessHarness
-
32250000462 Socket HD Screw M10 x 32Socket HD Screw M10 x 32
-
33250200026 Lock WasherLock Washer
-
34516005515 Capacitor DecalCapacitor Decal
-
35515177193 CapCap
-
37414115200 Tie-Rap 180mmTie-Rap 180mm
-
37293750008 Tie-Rap 350mmTie-Rap 350mm
-
37293750001 Tie-Rap 94mmTie-Rap 94mm
-
38517304194 RH Headlamp. Includes 38 To 42RH Headlamp. Includes 38 To 42
-
38517304195 LH Headlamp. Includes 38 To 42LH Headlamp. Includes 38 To 42
-
39515176274 Halogen Bulb (60/55W, 12V)Halogen Bulb (60/55W, 12V)
-
41515176498 CapCap
-
42515176499 CoverCover
-
43250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
44250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
