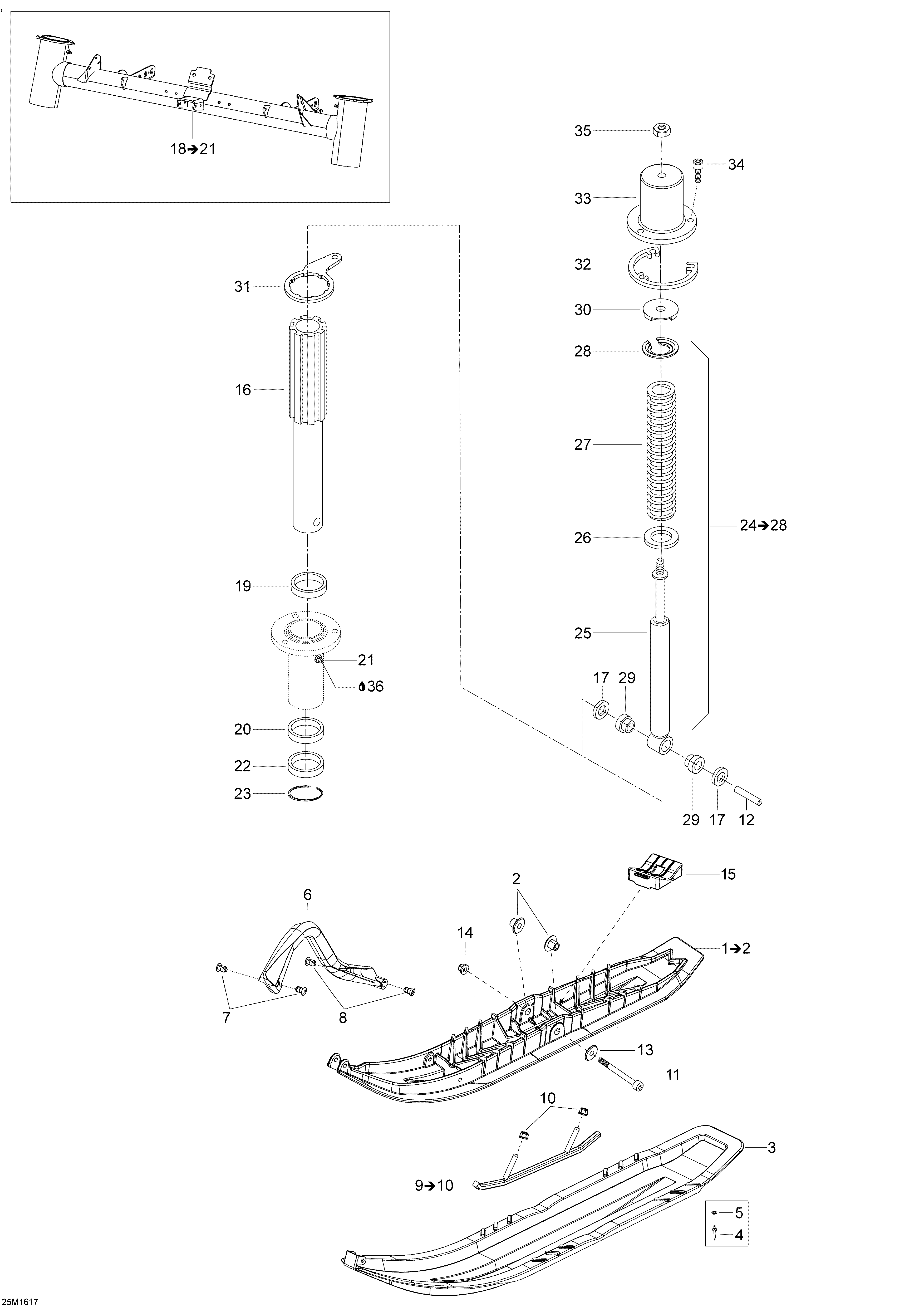

07- Front Suspension для BRP Ski-Doo SKANDIC - 2-STROKE - 2016
-
№АртикулНазвание
-
1505073227 Black DS Ski. Includes 1 To 2Black DS Ski. Includes 1 To 2
-
2505071781 CushionCushion
-
3505073448 DS Liner. Model-SWTDS Liner. Model-SWT
-
4293150206 Pop Rivet. Model-SWTPop Rivet. Model-SWT
-
5234061410 Flat Washer. Model-SWTFlat Washer. Model-SWT
-
6505072976 Black HandleBlack Handle
-
7505071812 RetainerRetainer
-
8505072133 RetainerRetainer
-
9860201044 Carbide Runner Kit. Includes 9 To 10Carbide Runner Kit. Includes 9 To 10
-
10233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
11230003044 Hex. Cap Screw M10 x 130Hex. Cap Screw M10 x 130
-
12505073209 Ski AxleSki Axle
-
13732900049 WasherWasher
-
14233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
15505072594 Ski StopperSki Stopper
-
16505073200 Ski LegSki Leg
-
17505072579 SpacerSpacer
-
18505073967 Module Ass'y. Includes 18 To 21Module Ass'y. Includes 18 To 21
-
19414803100 Cushion UpperCushion Upper
-
20414803200 Cushion LowerCushion Lower
-
21408200700 Grease FittingGrease Fitting
-
22505072696 Oil SealOil Seal
-
23505072698 CirclipCirclip
-
25505073046 Front ShockFront Shock
-
26505072578 WasherWasher
-
27505072557 Spring. model-550FSpring. model-550F
-
27505072745 Spring. model-600 E-TECSpring. model-600 E-TEC
-
28505072619 Spring StopperSpring Stopper
-
29572034500 CushionCushion
-
30605354835 Rubber BumperRubber Bumper
-
31505073203 Steering ArmSteering Arm
-
32505072581 SpacerSpacer
-
33505072874 LH CoverLH Cover
-
33505072875 RH CoverRH Cover
-
34205082044 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
35233201414 Elastic Flange Nut M10Elastic Flange Nut M10
