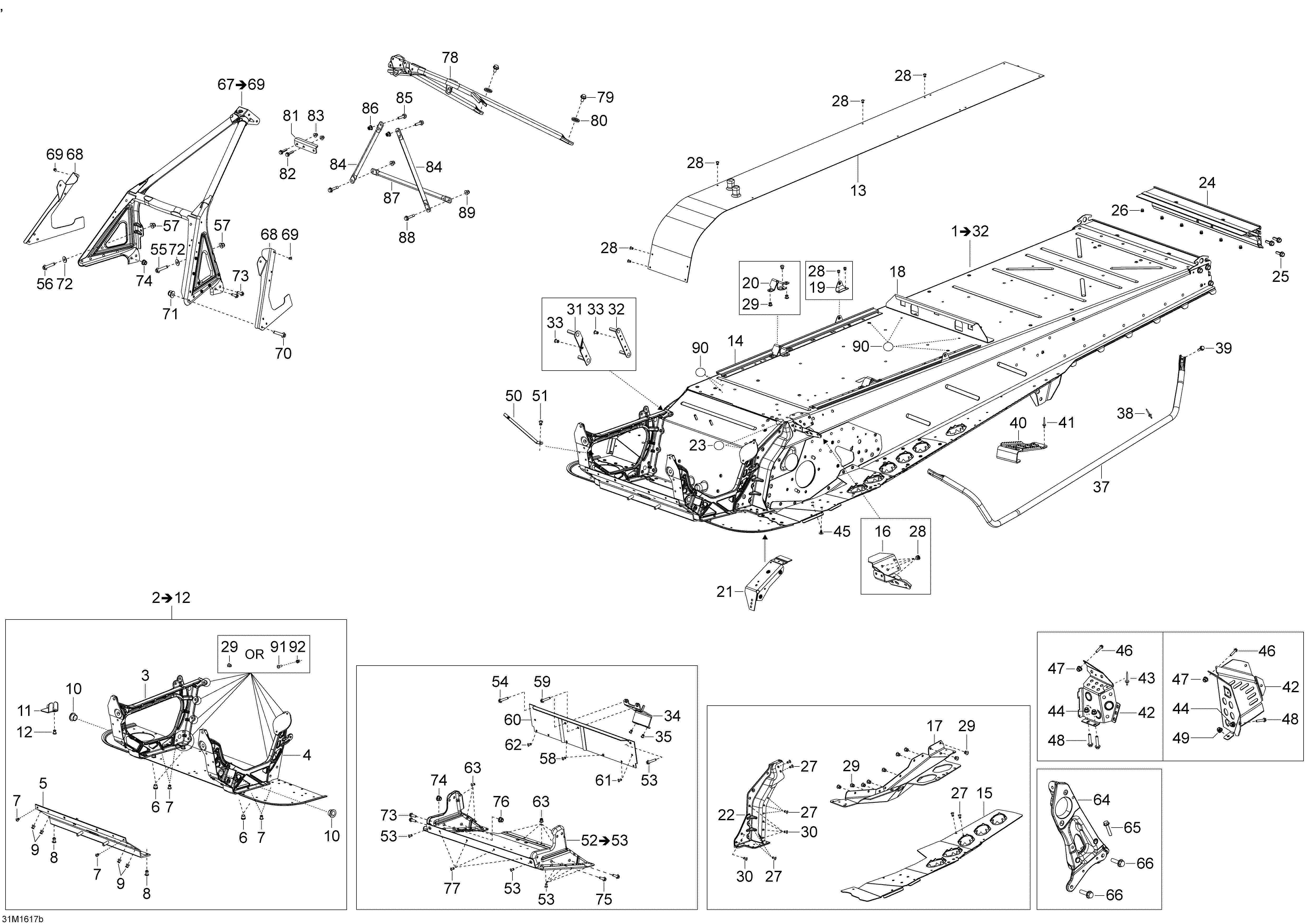

09- Frame - 600 E-TEC для BRP Ski-Doo SKANDIC - 2-STROKE - 2016
-
№АртикулНазвание
-
1518328839 Black Frame. Includes 1 To 30, Model-WTBlack Frame. Includes 1 To 30, Model-WT
-
1518328857 Black Frame. Includes 1 To 30, Model-SWTBlack Frame. Includes 1 To 30, Model-SWT
-
2518328813 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut M8Clinch Nut M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 CushionCushion
-
11518328194 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13509000975 RadiatorRadiator
-
14518326107 Fastening RailFastening Rail
-
15518328821 LH Footrest. Model-WTLH Footrest. Model-WT
-
15518328822 RH Footrest. Model-WTRH Footrest. Model-WT
-
16605355235 Fastening Bracket. Model-WTFastening Bracket. Model-WT
-
16518327884 Fastening Bracket. Model-SWTFastening Bracket. Model-SWT
-
17518328016 LH Drive Axle Cover. Model-WTLH Drive Axle Cover. Model-WT
-
17518328014 LH Drive Axle Cover. Model-SWTLH Drive Axle Cover. Model-SWT
-
17518328017 RH Drive Axle Cover. Model-WTRH Drive Axle Cover. Model-WT
-
17518328015 RH Drive Axle Cover. Model-SWTRH Drive Axle Cover. Model-SWT
-
18518325986 Battery Support. Model-WTBattery Support. Model-WT
-
18518327003 Battery Support. Model-SWTBattery Support. Model-SWT
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 LH Support Tube BracketLH Support Tube Bracket
-
20518326110 RH Support Tube BracketRH Support Tube Bracket
-
21518326430 Clinch Nut Plate. Model-WTClinch Nut Plate. Model-WT
-
21518328096 Clinch Nut Plate. Model-SWTClinch Nut Plate. Model-SWT
-
22518325524 LH Frame Corner. Model-WTLH Frame Corner. Model-WT
-
22518325643 LH Frame Corner. Model-SWTLH Frame Corner. Model-SWT
-
22518328024 RH Frame Corner. Model-WTRH Frame Corner. Model-WT
-
22518325644 RH Frame Corner. Model-SWTRH Frame Corner. Model-SWT
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328748 Rear Profile. Model-WTRear Profile. Model-WT
-
24518328749 Rear Profile. Model-SWTRear Profile. Model-SWT
-
25207582586 Screw M8 x 25Screw M8 x 25
-
26293150174 RivetRivet
-
27390909100 RivetRivet
-
28390909200 RivetRivet
-
29293150119 RivetRivet
-
30293150183 RivetRivet
-
31518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
32518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
33390402200 Pop Rivet 3/16Pop Rivet 3/16
-
34518325943 MAG SupportMAG Support
-
35293150119 RivetRivet
-
36518326963 LH Footrest Support Tube. Model-WTLH Footrest Support Tube. Model-WT
-
36518327595 LH Footrest Support Tube. Model-SWTLH Footrest Support Tube. Model-SWT
-
36518326964 RH Footrest Support Tube. Model-WTRH Footrest Support Tube. Model-WT
-
36518327596 RH Footrest Support Tube. Model-SWTRH Footrest Support Tube. Model-SWT
-
37390909100 RivetRivet
-
38207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39520001208 Black FootrestBlack Footrest
-
40293150102 Rivet 3/16Rivet 3/16
-
41518328819 Black LH Toe Hook. Model-WTBlack LH Toe Hook. Model-WT
-
41518328921 Black LH Toe Hook. Model-SWTBlack LH Toe Hook. Model-SWT
-
41518328820 Black RH Toe Hook. Model-WTBlack RH Toe Hook. Model-WT
-
41518328922 Black RH Toe Hook. Model-SWTBlack RH Toe Hook. Model-SWT
-
42390909200 Rivet. Model-WTRivet. Model-WT
-
43605636003 Clinch Nut M6Clinch Nut M6
-
44414644300 Dart. Model-WTDart. Model-WT
-
45207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46233261414 Nut M6Nut M6
-
47250000717 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
48233261414 Hex. Flange Nut M6. Model-SWTHex. Flange Nut M6. Model-SWT
-
49514054846 Spring BracketSpring Bracket
-
50390909200 RivetRivet
-
51518326213 Cross Member. Includes 51 To 52Cross Member. Includes 51 To 52
-
52390909200 RivetRivet
-
53210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
54207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
55207563034 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
56233261414 Hex. Flange Nut M6Hex. Flange Nut M6
-
57293150119 RivetRivet
-
58207661644 Screw M6 x 16Screw M6 x 16
-
59518325620 Support PlateSupport Plate
-
60390909100 RivetRivet
-
61293150163 RivetRivet
-
62390909200 RivetRivet
-
63518328434 Pulley SupportPulley Support
-
64207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
65207583086 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
66518326754 Front Member Ass'y. Includes 66 To 68Front Member Ass'y. Includes 66 To 68
-
67502007077 LH Bumper FastenerLH Bumper Fastener
-
67502007078 RH Bumper FastenerRH Bumper Fastener
-
68390909200 RivetRivet
-
69207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
70233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
71224061201 Flat WasherFlat Washer
-
72207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
73233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
74207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
75233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
76390909200 RivetRivet
-
77518326103 Upper Support TubeUpper Support Tube
-
78207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
80518327029 Extension Plate. Model-SWTExtension Plate. Model-SWT
-
81207662544 Hex. Flange Screw M6 x 25. Model-SWTHex. Flange Screw M6 x 25. Model-SWT
-
82233261414 Hex. Flange Nut M6. Model-SWTHex. Flange Nut M6. Model-SWT
-
83518325114 SupportSupport
-
84207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
85233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
86518325115 Upper ColumnUpper Column
-
87207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
88233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
89518325560 Adhesive PatchAdhesive Patch
-
90207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
91233261414 Elastic Flange Nut M6Elastic Flange Nut M6
