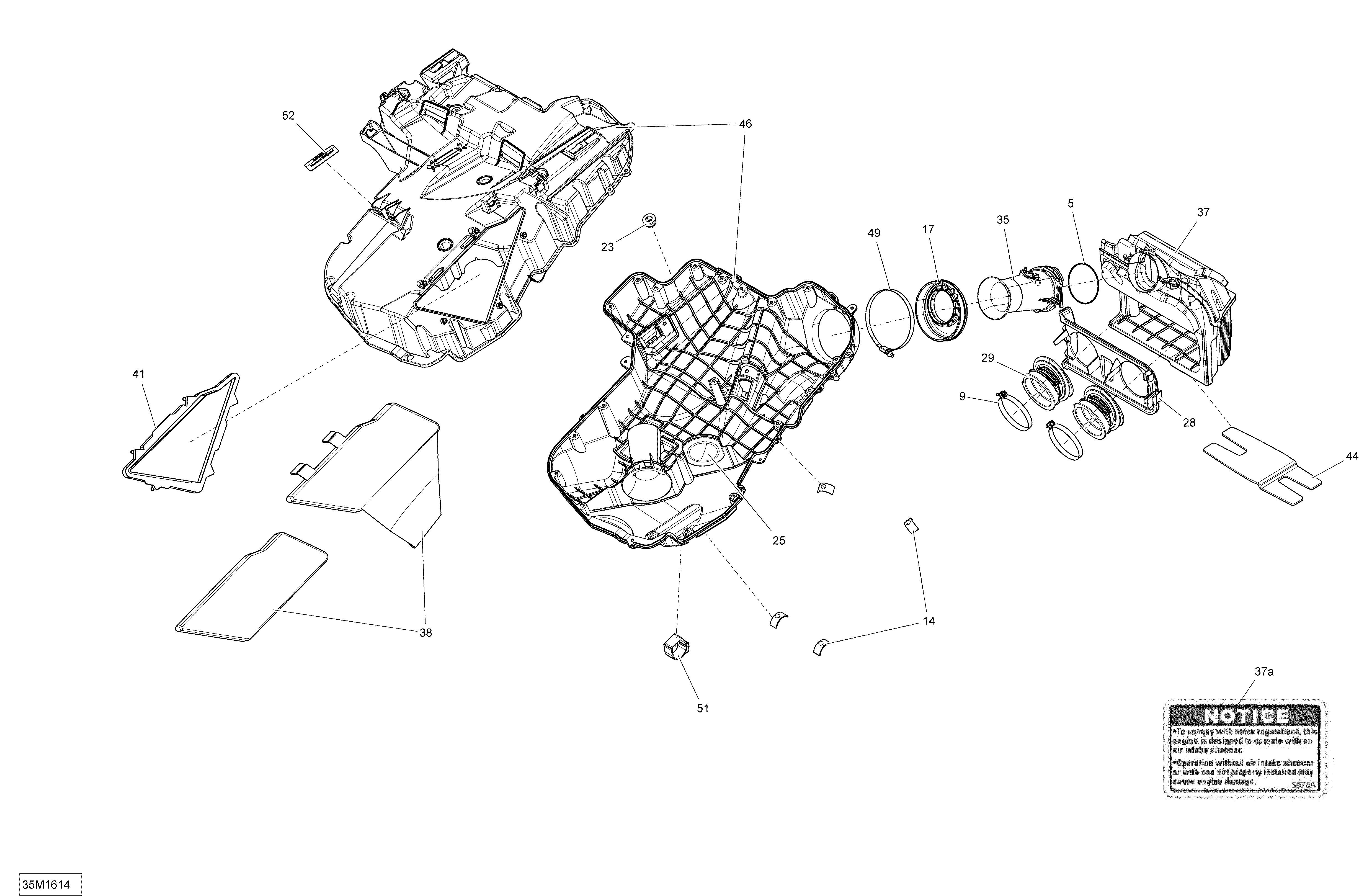

02- Air Intake System для BRP Ski-Doo TUNDRA - Xtreme - 2016
-
№АртикулНазвание
-
5293300115 O-RingO-Ring
-
9508000346 Gemi ClampGemi Clamp
-
14508000537 StopperStopper
-
17508000548 BootBoot
-
23508000574 GrommetGrommet
-
25508000590 CapCap
-
28508000613 Plate AdapterPlate Adapter
-
29508000614 Air Intake AdapterAir Intake Adapter
-
35508000662 FluteFlute
-
37508000660 Primary Chamber Ass'yPrimary Chamber Ass'y
-
37a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
38508000698 FilterFilter
-
41508000546 Air FilterAir Filter
-
41508000700 Air FilterAir Filter
-
44508000739 Insulated FoamInsulated Foam
-
46508000780 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
49514052983 Norma Gear ClampNorma Gear Clamp
-
51508000820 Velcro-StripVelcro-Strip
-
52516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
