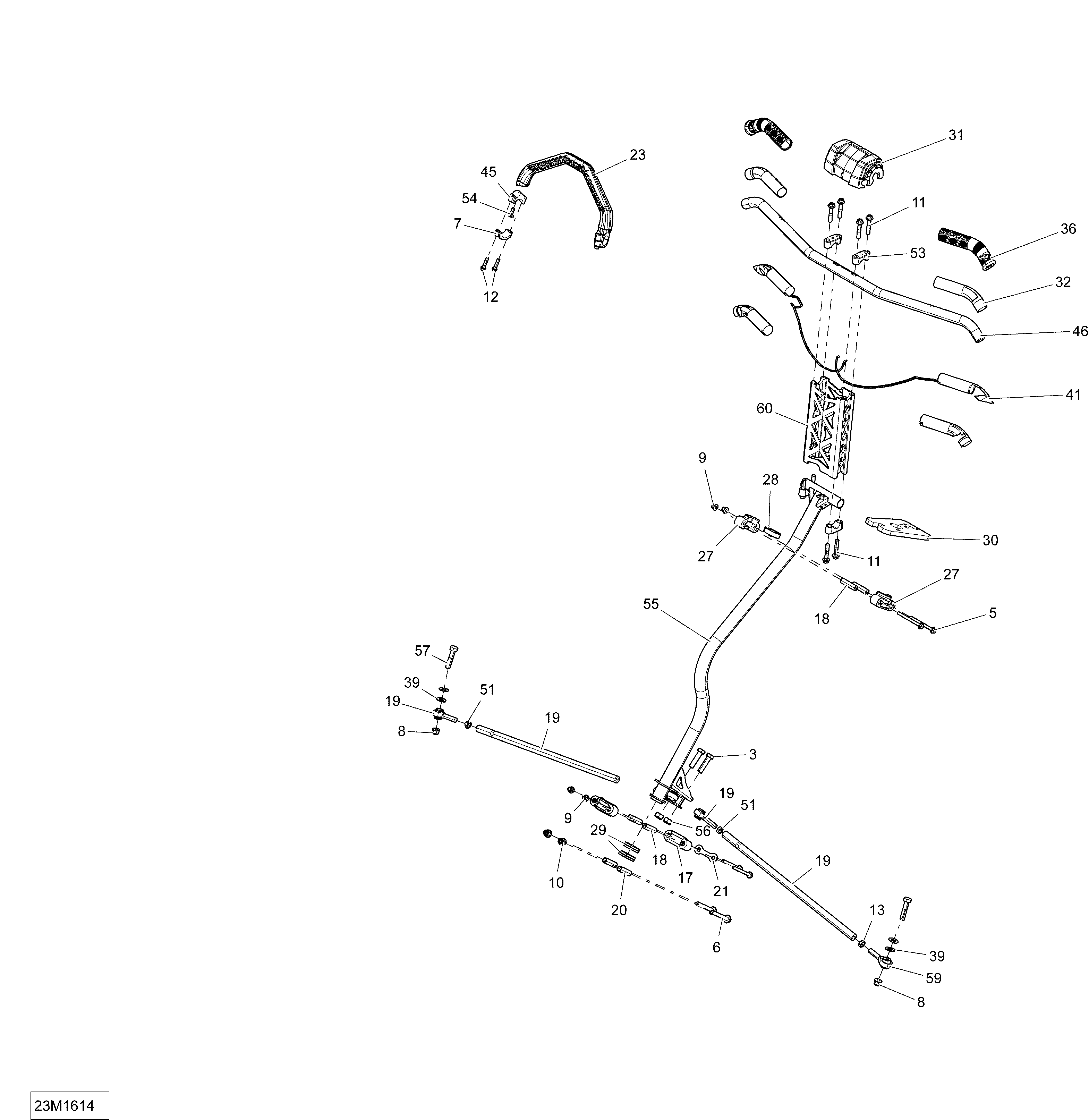

07- Steering для BRP Ski-Doo TUNDRA - Xtreme - 2016
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
4207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
5207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
6207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
7719000049 Clamps KitClamps Kit
-
8233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
12250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
13250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
17506152217 Lower Half-HousingLower Half-Housing
-
18506152297 Housing BushingHousing Bushing
-
19506152377 Tie RodTie Rod
-
20506152388 Lower Housing BushingLower Housing Bushing
-
21506152389 Stopper PlateStopper Plate
-
23506152460 Moulding StrapMoulding Strap
-
27506152508 Upper Half-HousingUpper Half-Housing
-
28506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
29506152518 Lower Vibration RingLower Vibration Ring
-
30506152476 CushionCushion
-
31506152541 Steering PadSteering Pad
-
32506152548 InsulantInsulant
-
36506152560 Grip 148mmGrip 148mm
-
39506152582 WasherWasher
-
41506152758 Heating Element 32 WattHeating Element 32 Watt
-
45506152703 Black Support PlateBlack Support Plate
-
46506152709 Clear Handle BarClear Handle Bar
-
51732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152750 Steering SupportSteering Support
-
53548873704 Steering SupportSteering Support
-
54250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
55506152839 Tube Main WeldTube Main Weld
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
59506152019 RH Thread Ball JointRH Thread Ball Joint
-
59506152081 LH Thread Ball JointLH Thread Ball Joint
-
60506152569 Steering ExtensionSteering Extension
