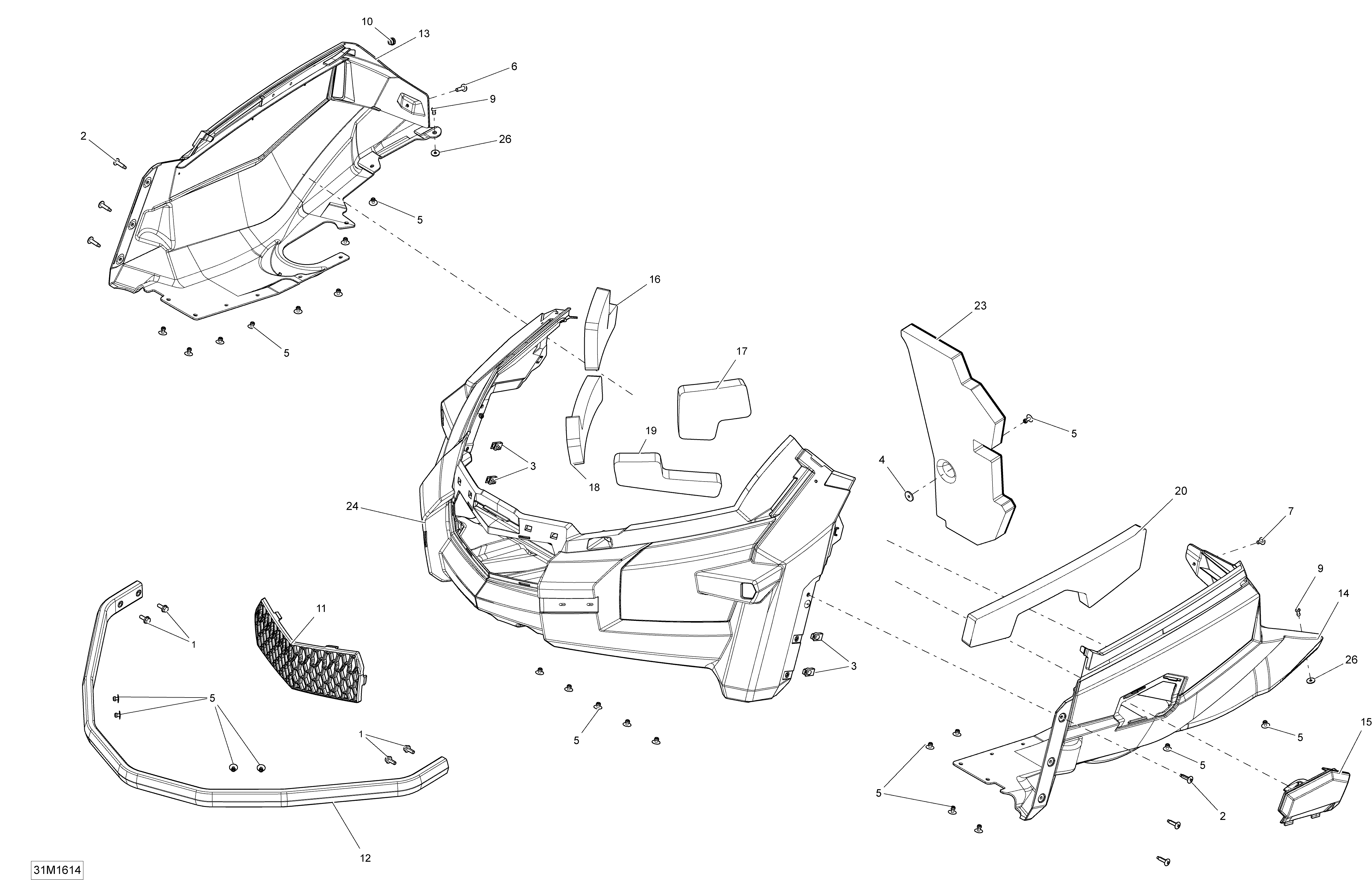

09- Bottom Pan для BRP Ski-Doo TUNDRA - Xtreme - 2016
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2250000618 Torx Screw M6 X 25Torx Screw M6 X 25
-
3250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
4250200016 WasherWasher
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
10293450275 InsertInsert
-
11502006887 Botton Pan GrillBotton Pan Grill
-
12502007121 Black Front BumperBlack Front Bumper
-
13502006965 Black RH Bottom PanBlack RH Bottom Pan
-
14502006966 Black LH Bottom PanBlack LH Bottom Pan
-
15502006970 Black Bottom Pan DoorBlack Bottom Pan Door
-
16502007204 RH Upper Bottom Pan FoamRH Upper Bottom Pan Foam
-
17502007205 LH Upper Bottom Pan FoamLH Upper Bottom Pan Foam
-
18502007206 RH Lower Bottom Pan FoamRH Lower Bottom Pan Foam
-
19502007207 LH Lower Bottom Pan FoamLH Lower Bottom Pan Foam
-
20502007208 LH Bottom Pan FoamLH Bottom Pan Foam
-
23502007209 Foam On PlateFoam On Plate
-
24502007361 Black Bottom PanBlack Bottom Pan
-
26517124300 WasherWasher
