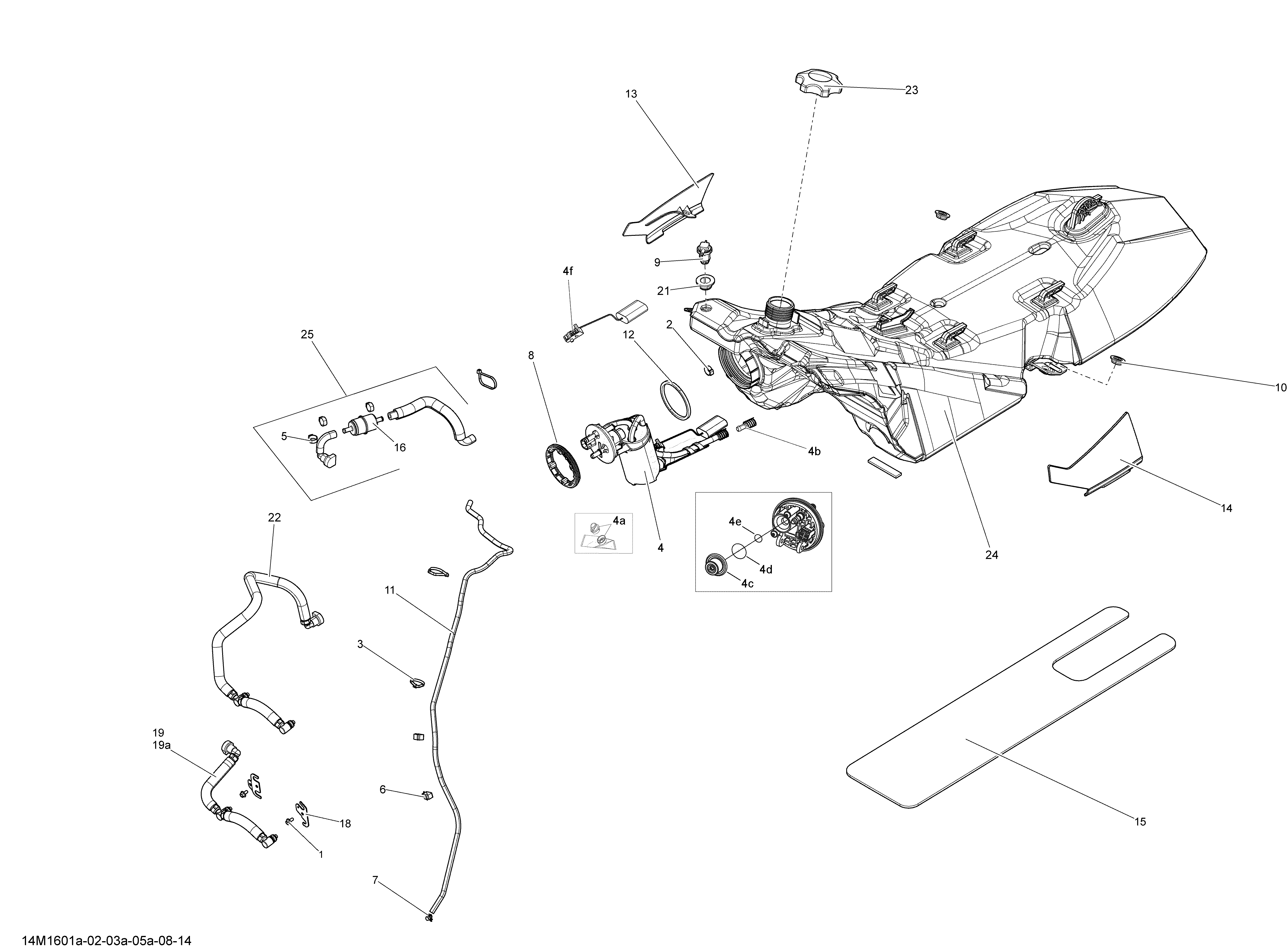

02- Fuel System для BRP Ski-Doo TUNDRA - Xtreme - 2016
-
№АртикулНазвание
-
1207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
2293650053 Crimp ClampCrimp Clamp
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4513033822 Fuel PumpFuel Pump
-
4a415129451 Fuel FilterFuel Filter
-
4b414872100 Fuel FilterFuel Filter
-
4c415129821 RegulatorRegulator
-
4d415129822 O-ringO-ring
-
4e415129823 O-ringO-ring
-
4f415129671 Fuel Level SensorFuel Level Sensor
-
5293650125 Oetiker ClampOetiker Clamp
-
6414227300 ClipClip
-
7414554800 Spring Clamp. Except TundraSpring Clamp. Except Tundra
-
8513033180 RingRing
-
9513033188 Check ValveCheck Valve
-
10513033326 Shoulder BushingShoulder Bushing
-
11415080200 Hose, PolyurethaneHose, Polyurethane
-
12513033334 GasketGasket
-
13513033418 RH CapRH Cap
-
14513033419 LH CapLH Cap
-
15513033588 Insulating FoamInsulating Foam
-
16513033719 FilterFilter
-
18513033542 BracketBracket
-
19513033594 Hose Ass'yHose Ass'y
-
19a513033135 Locking ClipLocking Clip
-
21513033596 GrommetGrommet
-
22513033648 Fuel Hose Ass'yFuel Hose Ass'y
-
23513033722 Fuel Tank CapFuel Tank Cap
-
24513033667 Fuel TankFuel Tank
-
25513033715 Fuel Hose Ass'yFuel Hose Ass'y
