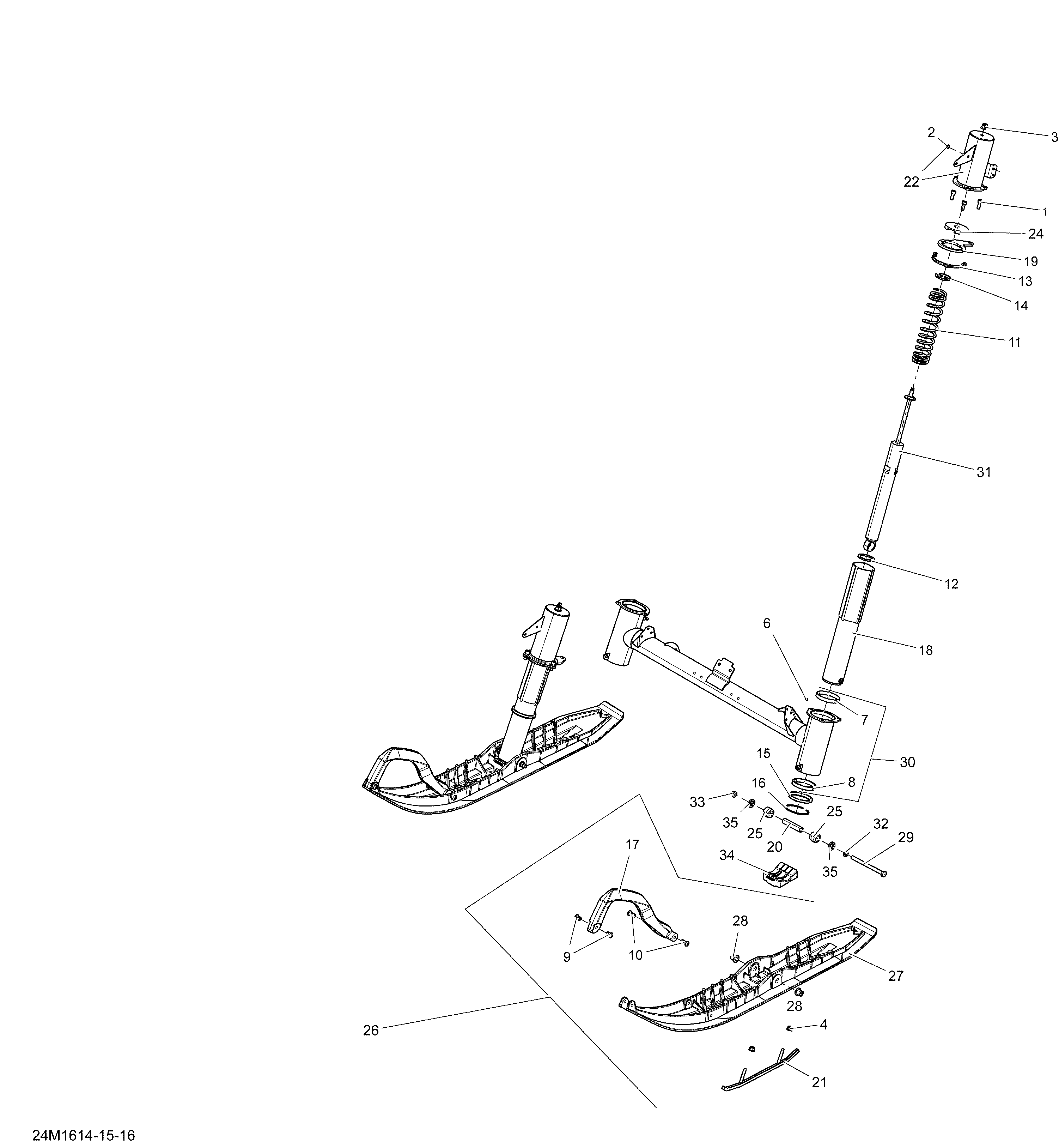

07- Front Suspension And Ski для BRP Ski-Doo TUNDRA - Xtreme - 2016
-
№АртикулНазвание
-
1205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
2232061404 Hexagonal Nut M6Hexagonal Nut M6
-
3233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
6408200700 Grease FittingGrease Fitting
-
7414803100 Upper CushionUpper Cushion
-
8414803200 Lower CushionLower Cushion
-
9505071812 RetainerRetainer
-
10505072133 RetainerRetainer
-
11505073327 Black SpringBlack Spring
-
12505072578 WasherWasher
-
13505072581 SpacerSpacer
-
14505072619 Spring StopperSpring Stopper
-
15505072696 Seal OilSeal Oil
-
16505072698 CirclipCirclip
-
17505072976 Black HandleBlack Handle
-
18505073200 Ski LegSki Leg
-
19505073203 Steering ArmSteering Arm
-
20505073209 Ski AxleSki Axle
-
21860201044 Carbide Runner KitCarbide Runner Kit
-
22505073449 LH Suspension CoverLH Suspension Cover
-
23505073450 RH Suspension CoverRH Suspension Cover
-
24570025800 StopperStopper
-
25572034500 CushionCushion
-
27505073227 Black DS Ski 2Black DS Ski 2
-
28505071781 CushionCushion
-
29250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
30505073497 S2 Modul, Ass'yS2 Modul, Ass'y
-
31505073046 ShockShock
-
32503192496 WasherWasher
-
33233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
34505072594 Ski StopperSki Stopper
-
35505072579 SpacerSpacer
