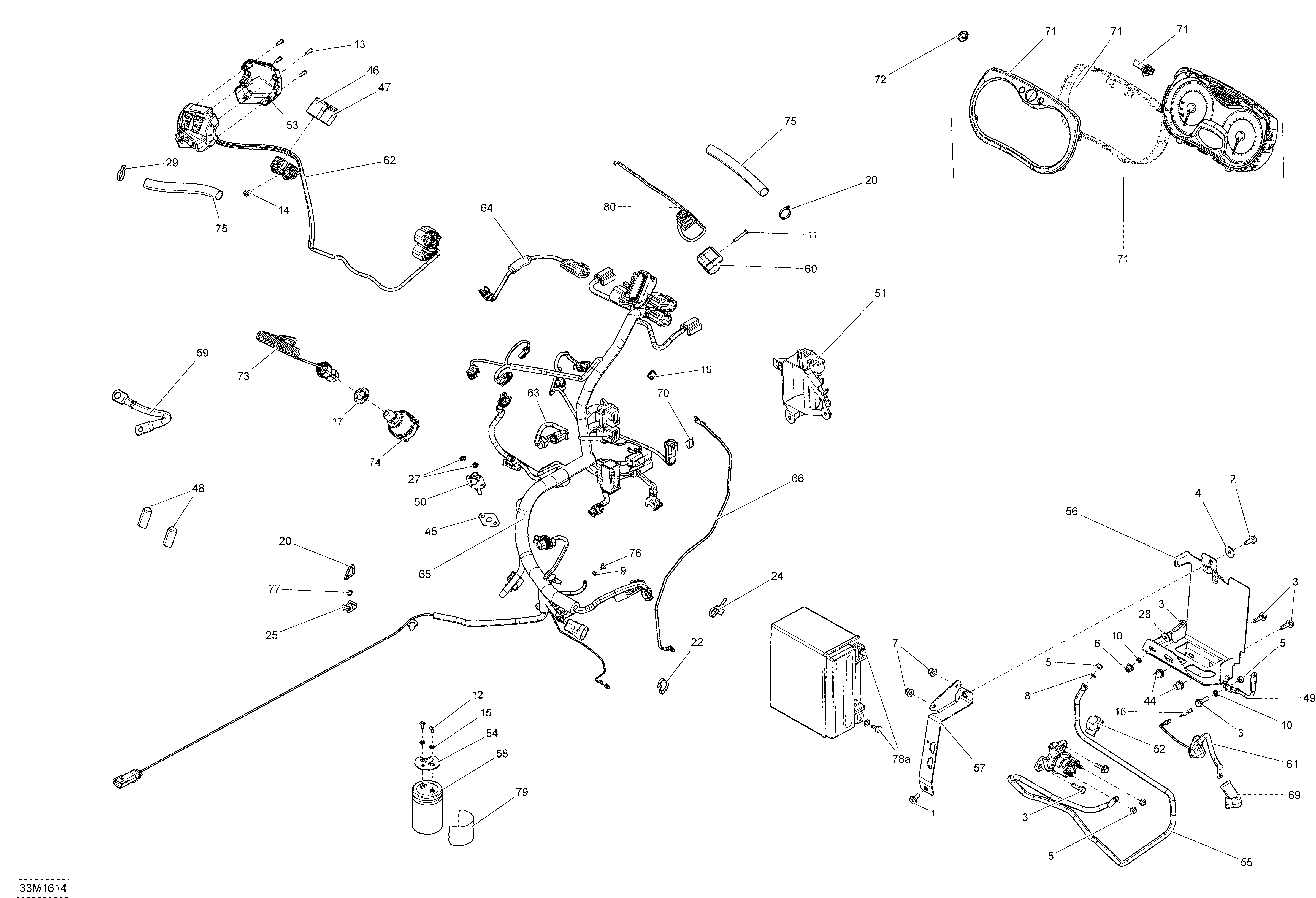

10- Electrical System для BRP Ski-Doo TUNDRA - Xtreme - 2016
-
№АртикулНазвание
-
1207661244 Hex. Flanged Screw M6 X 12. DELEHex. Flanged Screw M6 X 12. DELE
-
2207661644 Hex. Flanged Screw M6 X 16. DELEHex. Flanged Screw M6 X 16. DELE
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4224061201 Flat Washer. DELEFlat Washer. DELE
-
5232561434 Elastic Stop Nut M6. DELEElastic Stop Nut M6. DELE
-
6233261414 Hex. Flanged Elastic Nut M6. DELEHex. Flanged Elastic Nut M6. DELE
-
7233261416 Elastic Flanged Nut M6. DELEElastic Flanged Nut M6. DELE
-
8234061410 Flat Washer 6 mm. DELEFlat Washer 6 mm. DELE
-
9234141601 Lock Washer 4 mmLock Washer 4 mm
-
10234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
11250000263 Torx Screw #8-18Torx Screw #8-18
-
12250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
13250000671 Torx ScrewTorx Screw
-
14250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
15250200026 Lock washerLock washer
-
16278001443 Fuse, 25 Amperes. DELEFuse, 25 Amperes. DELE
-
17278002963 Safety NutSafety Nut
-
18278003012 Starter Relay. DELEStarter Relay. DELE
-
19293750001 Tie-Rap 94 mm. DELETie-Rap 94 mm. DELE
-
20293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
22293750008 Tie-Rap 350 mm. DELETie-Rap 350 mm. DELE
-
24293750009 Tie-Rap 173 mm. DELETie-Rap 173 mm. DELE
-
25515176795 ClipClip
-
26293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
27389804300 Push NutPush Nut
-
28250200082 Flat Washer. DELEFlat Washer. DELE
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44293450275 Insert. DELEInsert. DELE
-
45508000769 SealSeal
-
46515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
47515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
48515176141 CapCap
-
49515176358 Ground Wire. DELEGround Wire. DELE
-
50515176366 Air Temperature SensorAir Temperature Sensor
-
51515176607 Capacitor SupportCapacitor Support
-
52515177066 Clip. DELEClip. DELE
-
53515177147 Housing PlateHousing Plate
-
54515177193 CapCap
-
55515177208 Battery/Starter Wire. DELEBattery/Starter Wire. DELE
-
56515177264 Battery Support. DELEBattery Support. DELE
-
57515177266 Battery Strip. DELEBattery Strip. DELE
-
58515177272 CapacitorCapacitor
-
59515177289 Ground WireGround Wire
-
60515177310 Kill Switch SupportKill Switch Support
-
61515177576 Fuse Battery Wire. DELEFuse Battery Wire. DELE
-
62515177676 HousingHousing
-
63515177813 Temperature SensorTemperature Sensor
-
64515177877 Wiring HarnessWiring Harness
-
65515177982 Main HarnessMain Harness
-
66515178052 Groud Wire. M-600HOEGroud Wire. M-600HOE
-
68710000495 Protector Cap. DELEProtector Cap. DELE
-
70710001038 ClipClip
-
71415129355 Speedometer ButtonSpeedometer Button
-
71515177914 SpeedometerSpeedometer
-
71415129349 LensLens
-
71415129370 Gauge RingGauge Ring
-
72516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
73515178038 KeyKey
-
74515178049 DESS SwitchDESS Switch
-
75415129879 Protector TubeProtector Tube
-
76250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
77390909200 Avex RivetAvex Rivet
-
78410301203 Battery Ass'y, 18 Amperes. M-600HOE&DELEBattery Ass'y, 18 Amperes. M-600HOE&DELE
-
78a250000282 Battery Bolt Kit. M-600HOE&DELEBattery Bolt Kit. M-600HOE&DELE
-
79516006206 Capacitor DecalCapacitor Decal
-
80515177362 Kill SwitchKill Switch
