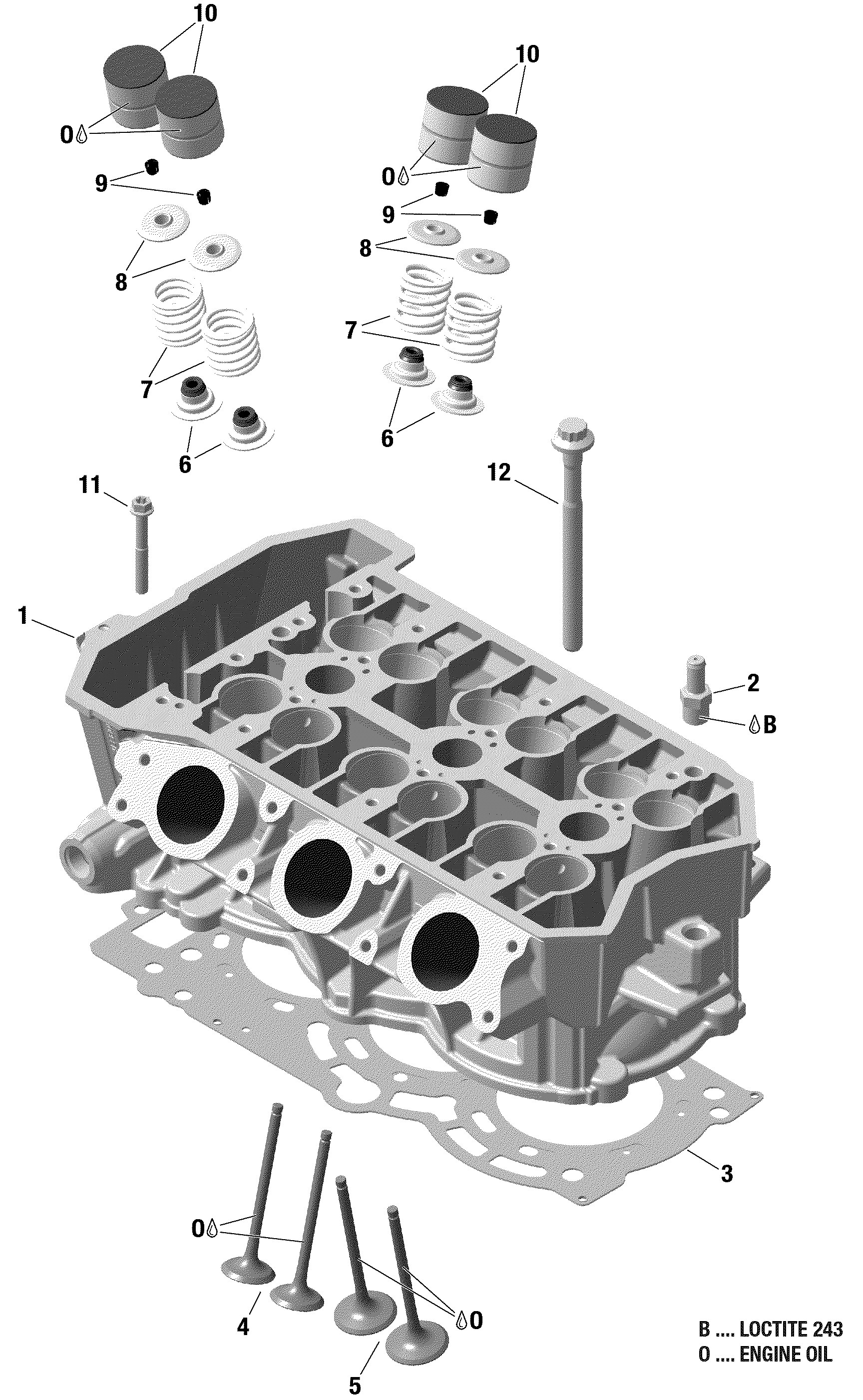

01- Cylinder Head для BRP Ski-Doo 008 - RENEGADE 900 ACE Turbo - 2019
-
№АртикулНазвание
-
1420413365 Cylinder Head Ass'yCylinder Head Ass'y
-
2420441420 Hose NippleHose Nipple
-
3420431816 Cylinder Head GasketCylinder Head Gasket
-
4420855148 Exhaust Valve 25MMExhaust Valve 25MM
-
5420855131 Intake Valve 29MMIntake Valve 29MM
-
6420431671 Valve Stem SealValve Stem Seal
-
7420939540 Valve SpringValve Spring
-
8420855150 Valve Spring RetainerValve Spring Retainer
-
9420254630 Cotter ValveCotter Valve
-
10420855164 Valve Lifter Bucket BlocValve Lifter Bucket Bloc
-
11420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
12420940947 Sided Bolt Screw M9 X 113Sided Bolt Screw M9 X 113
