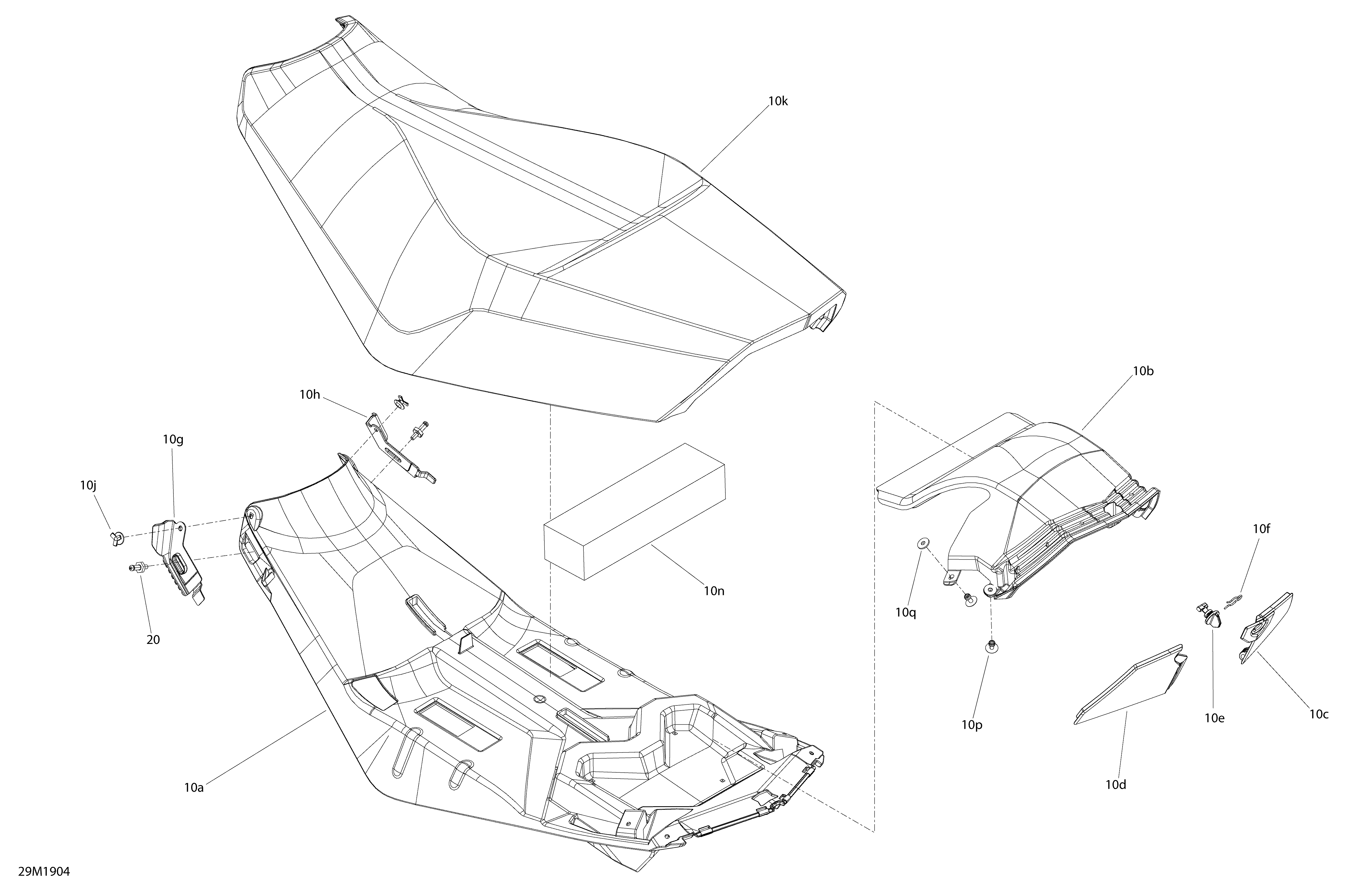

09- Seat - REV GEN4 - 900 ACE Turbo для BRP Ski-Doo 008 - RENEGADE 900 ACE Turbo - 2019
-
№АртикулНазвание
-
10a510006312 Seat BaseSeat Base
-
10b510005413 Seat BoxSeat Box
-
10c510005414 Deep Black, RH DoorDeep Black, RH Door
-
10d510005415 Deep Black, LH DoorDeep Black, LH Door
-
10e510005416 LockLock
-
10f250400055 Hairpin ClipHairpin Clip
-
10g510006530 LH Seat LatchLH Seat Latch
-
10h510006531 RH Seat LatchRH Seat Latch
-
10j293150222 Pop Rivet 3/16''Pop Rivet 3/16''
-
10k510006313 Seat FoamSeat Foam
-
10m510006355 Seat Cover. Package Adrenaline. not shownSeat Cover. Package Adrenaline. not shown
-
10m510006644 Heated Seat Cover. Package Enduro. not shownHeated Seat Cover. Package Enduro. not shown
-
10m510006667 Seat Cover. Package X, Black Model. not shownSeat Cover. Package X, Black Model. not shown
-
10m510006669 Seat Cover. Package X, Red Model. not shownSeat Cover. Package X, Red Model. not shown
-
10m510006671 Seat Cover. Package XRS, Black Model. not shownSeat Cover. Package XRS, Black Model. not shown
-
10m510006673 Seat Cover. Package XRS, Orange Model. not shownSeat Cover. Package XRS, Orange Model. not shown
-
10n510005504 FoamFoam
-
10p293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10q391301600 WasherWasher
-
20510006514 PinPin
