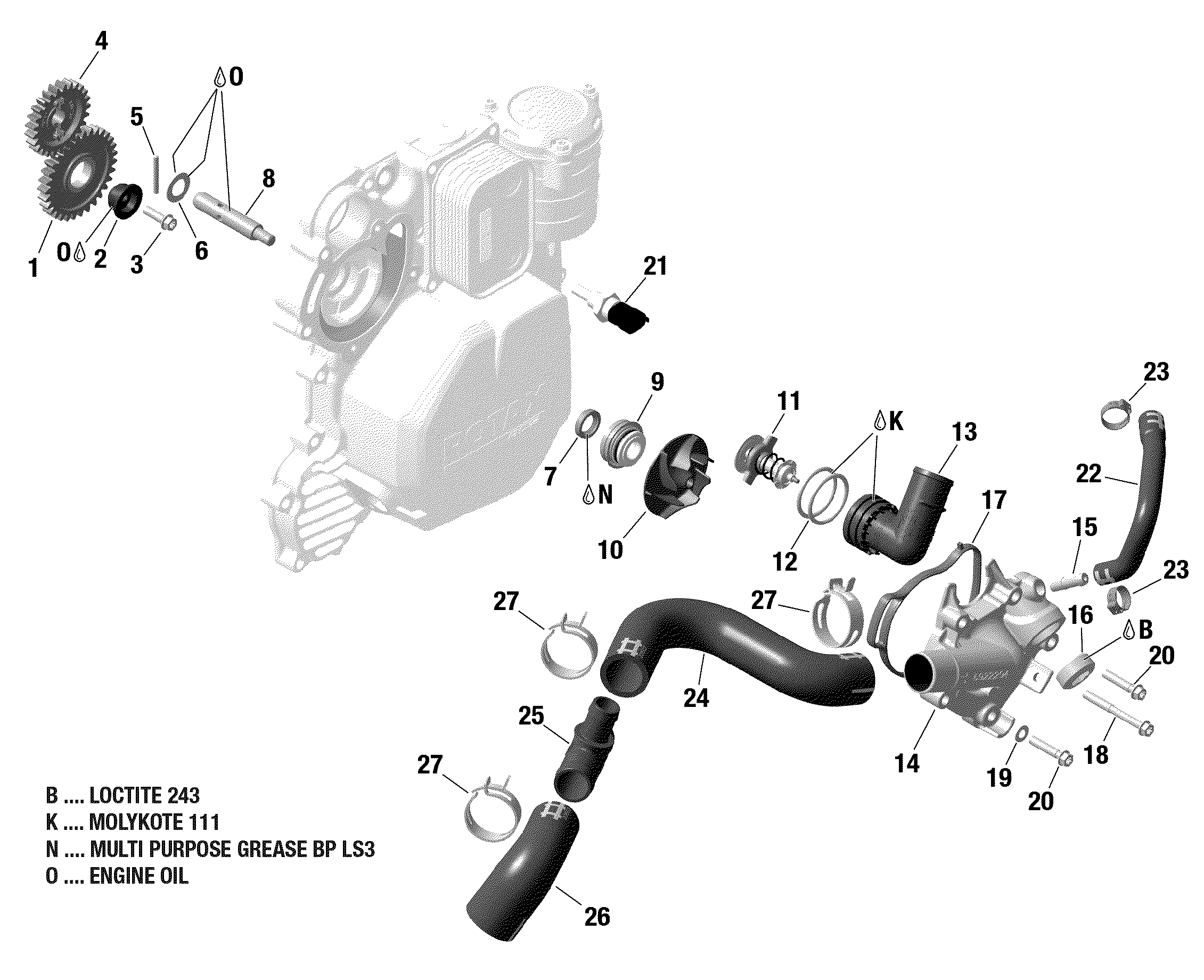

01- Engine Cooling для BRP Ski-Doo 008 - RENEGADE 900 ACE Turbo - 2019
-
№АртикулНазвание
-
1420835059 Idle Gear, 31 TeethIdle Gear, 31 Teeth
-
2420947394 SpacerSpacer
-
3420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
4420835230 Water Pump GearWater Pump Gear
-
5420232431 Needle PinNeedle Pin
-
6420827261 Thrust WasherThrust Washer
-
7420931802 Oil SealOil Seal
-
8420820150 Waterpump ShaftWaterpump Shaft
-
9420850946 SealSeal
-
10420822750 Water ImpellerWater Impeller
-
11420822655 ThermostatThermostat
-
12420950893 O-RingO-Ring
-
13420922158 Thermostat coverThermostat cover
-
14>17420922300 Water Pump HousingWater Pump Housing
-
15420924925 Hose NippleHose Nipple
-
17420431682 GasketGasket
-
18420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
19404146600 Sealing WasherSealing Washer
-
20420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
21278002895 Temperature SensorTemperature Sensor
-
22420822895 HoseHose
-
23420853308 ClampClamp
-
24420201502 Molded HoseMolded Hose
-
25420660551 T FittingT Fitting
-
26420201503 Molded HoseMolded Hose
-
27420951350 ClampClamp
