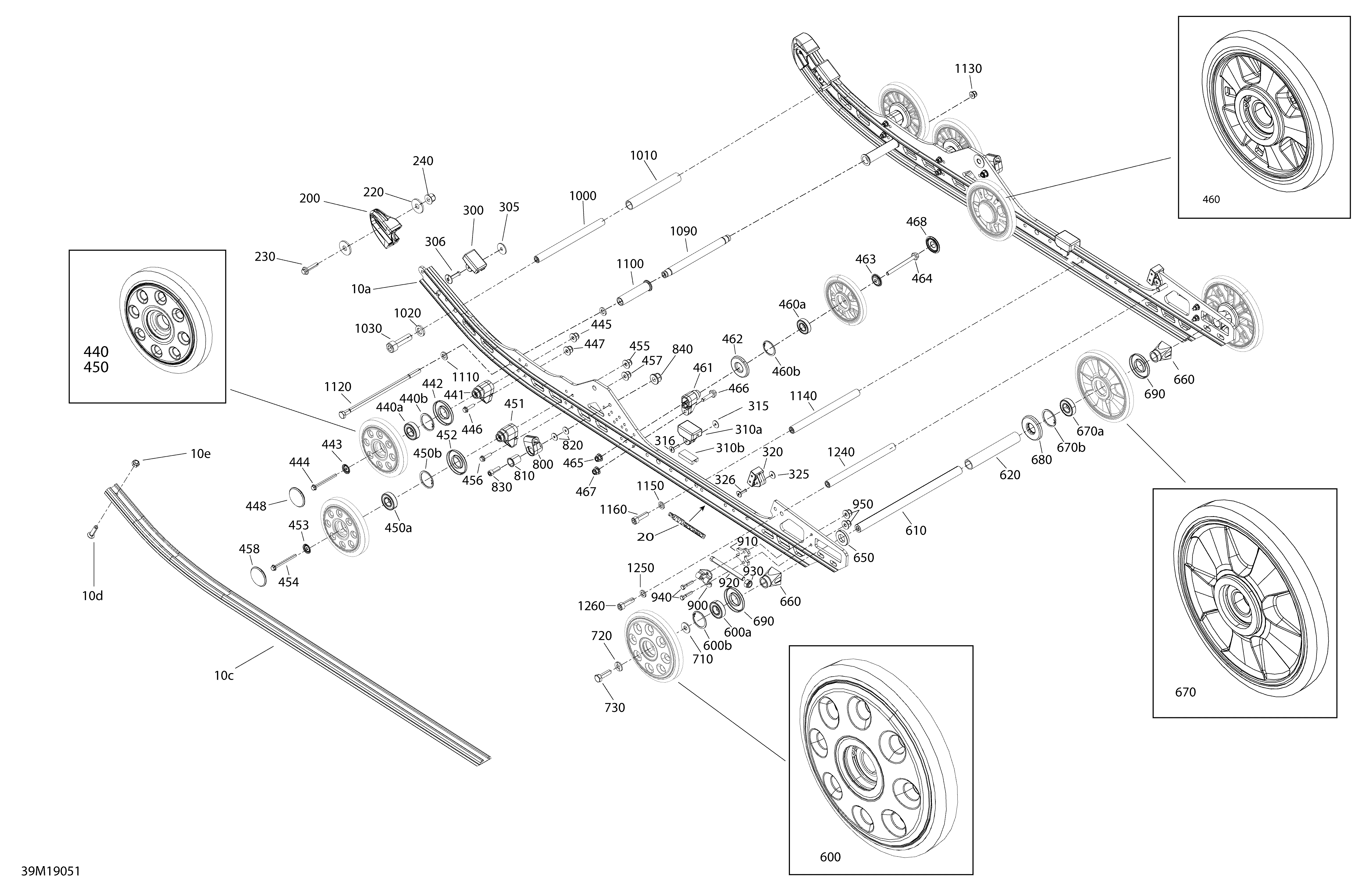

08- Rear Suspension - XRS - Lower Section для BRP Ski-Doo 008 - RENEGADE 900 ACE Turbo - 2019
-
№АртикулНазвание
-
10a503193552 Black, Runner 137''. Black ModelBlack, Runner 137''. Black Model
-
10a503194531 Orange Runner 137''. Orange ModelOrange Runner 137''. Orange Model
-
10c503191306 Black, Slider Shoe 137''Black, Slider Shoe 137''
-
10d208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10e232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20516007816 Runner DecalRunner Decal
-
200503192530 Slide ProtectorSlide Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
240233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310a503193101 Rubber StopperRubber Stopper
-
310b572084800 Reinforcement StopperReinforcement Stopper
-
315503191273 WasherWasher
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
320503192750 Rubber StopperRubber Stopper
-
325503191273 WasherWasher
-
326293150224 Rivet Pop 3/16Rivet Pop 3/16
-
440503191311 Black, Wheel Ass'y 147 mm. Includes 440 to 440bBlack, Wheel Ass'y 147 mm. Includes 440 to 440b
-
440a503190396 Ball BearingBall Bearing
-
440b415129371 Retaining RingRetaining Ring
-
441503193894 Casted SupportCasted Support
-
442503190434 Labyrinth SealLabyrinth Seal
-
443503191820 Wheel Cup M6Wheel Cup M6
-
444250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
445233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
446250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
447233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
448503192771 Black, Wheel CapBlack, Wheel Cap
-
450503191311 Black, Wheel Ass'y 147 mm. Includes 450 to 450bBlack, Wheel Ass'y 147 mm. Includes 450 to 450b
-
450a503190396 Ball BearingBall Bearing
-
450b415129371 Retaining RingRetaining Ring
-
451503193894 Casted SupportCasted Support
-
452503190434 Labyrinth SealLabyrinth Seal
-
453503191820 Wheel Cup M6Wheel Cup M6
-
454250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
455233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
456250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
457233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
458503192771 Black, Wheel CapBlack, Wheel Cap
-
460503191152 Black, Wheel Ass'y 147 mm. Includes 460 to 460bBlack, Wheel Ass'y 147 mm. Includes 460 to 460b
-
460a503190396 Ball BearingBall Bearing
-
460b415129371 Retaining RingRetaining Ring
-
461503193894 Casted SupportCasted Support
-
462503190434 Labyrinth SealLabyrinth Seal
-
463503191820 Wheel Cup M6Wheel Cup M6
-
464250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
465233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
466250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
467233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
468503192771 Black, Wheel CapBlack, Wheel Cap
-
600503194202 Black - Wheel Ass'y 180 mm. Includes 600 to 600bBlack - Wheel Ass'y 180 mm. Includes 600 to 600b
-
600a503190396 Ball BearingBall Bearing
-
600b415129371 Retaining RingRetaining Ring
-
610503190429 Rear AxleRear Axle
-
620503191263 Rear SpacerRear Spacer
-
650503190432 Washer. WH4-RM-3Washer. WH4-RM-3
-
660503190428 Rear Wheel SpacerRear Wheel Spacer
-
670503194050 Black - Wheel Ass'y 180 mm. Includes 670 to 670bBlack - Wheel Ass'y 180 mm. Includes 670 to 670b
-
670a503190396 Ball BearingBall Bearing
-
670b415129371 Retaining RingRetaining Ring
-
680503190682 Labyrinth SealLabyrinth Seal
-
690503190434 Labyrinth SealLabyrinth Seal
-
710503191910 WasherWasher
-
720234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
730250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
820234082410 Flat Washer 8 mmFlat Washer 8 mm
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
900503192583 TensionerTensioner
-
910503193250 SpacerSpacer
-
920230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
950233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1000503191260 Axle StrapAxle Strap
-
1010503192678 SpacerSpacer
-
1020503192496 WasherWasher
-
1030205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1240503191260 Axle StrapAxle Strap
-
1250503192496 WasherWasher
-
1260205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
8000503192771 Black, Wheel Cap. Not ShownBlack, Wheel Cap. Not Shown
