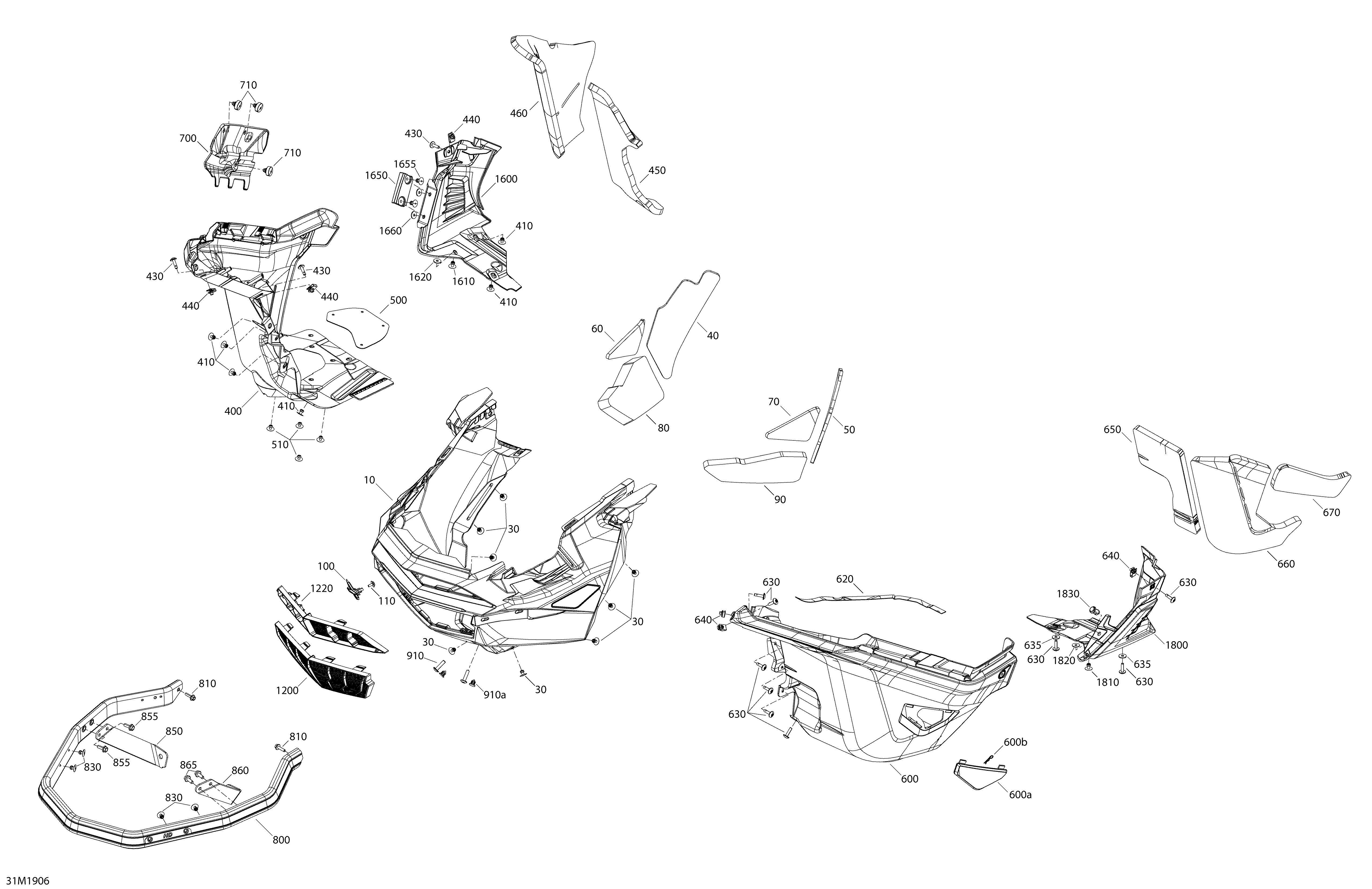

09- Bottom Pan для BRP Ski-Doo 008 - RENEGADE 900 ACE Turbo - 2019
-
№АртикулНазвание
-
10502007756 Bottom Pan. Deep BlackBottom Pan. Deep Black
-
10502007894 Bottom Pan. OrangeBottom Pan. Orange
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007788 FoamFoam
-
50502007789 FoamFoam
-
60502007545 RH Bottom Pan Central FoamRH Bottom Pan Central Foam
-
70502007546 LH Bottom Pan Central FoamLH Bottom Pan Central Foam
-
80502007800 FoamFoam
-
90502007799 FoamFoam
-
100705010885 Logo. Except Packages Enduro & AdrenalineLogo. Except Packages Enduro & Adrenaline
-
110250000805 Plastite Screw M4 X 10. Except Packages Enduro & AdrenalinePlastite Screw M4 X 10. Except Packages Enduro & Adrenaline
-
400502007737 RH Bottom PanRH Bottom Pan
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
430250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
440250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
450502007831 FoamFoam
-
460502007778 FoamFoam
-
500502007868 PlatePlate
-
510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
600502007739 LH Bottom Pan Ass'y. Includes 600 to 600bLH Bottom Pan Ass'y. Includes 600 to 600b
-
600a502007676 Door - Bottom PanDoor - Bottom Pan
-
600b269800431 HairpinHairpin
-
620293250087 Gasket, NeopreneGasket, Neoprene
-
630250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
635250200025 Washer M5Washer M5
-
640250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
650502007549 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
660502007779 FoamFoam
-
670502007790 FoamFoam
-
700502007845 Heat ShieldHeat Shield
-
710502007957 StopperStopper
-
800502007754 Front Bumper. Except Package EnduroFront Bumper. Except Package Enduro
-
800502007869 Front Bumper. Package EnduroFront Bumper. Package Enduro
-
810207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
830293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
850502007762 Reinforcement. Package EnduroReinforcement. Package Enduro
-
855207661646 Hex. Flange Screw M6 X 16. Package EnduroHex. Flange Screw M6 X 16. Package Enduro
-
860502007763 Reinforcement. Package EnduroReinforcement. Package Enduro
-
865207661646 Hex. Flange Screw M6 X 16. Package EnduroHex. Flange Screw M6 X 16. Package Enduro
-
910250000758 Torx Screw M6 X 25. Package EnduroTorx Screw M6 X 25. Package Enduro
-
910a518321954 Fastener Panel. Except Package EnduroFastener Panel. Except Package Enduro
-
1200502007857 Prefilter Lower GrillPrefilter Lower Grill
-
1220502007858 Prefilter Upper GrillPrefilter Upper Grill
-
1600502007714 Panel RHPanel RH
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1620517124300 WasherWasher
-
1650502007757 StopperStopper
-
1655293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1660517124300 WasherWasher
-
1800502007872 Panel LHPanel LH
-
1810293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1820517124300 WasherWasher
-
1830293150230 Tuflok Plastic RivetTuflok Plastic Rivet
