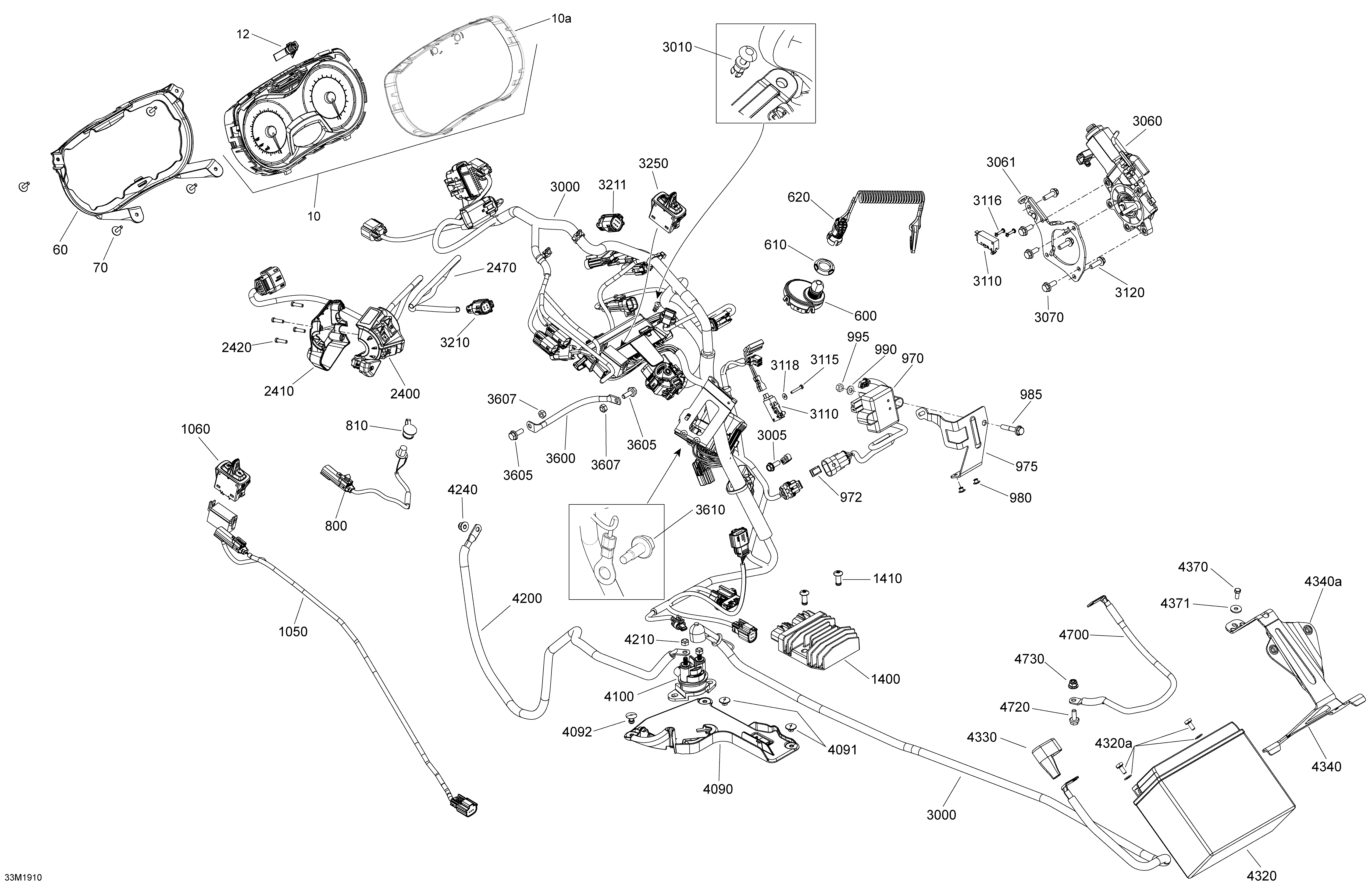

10- Electrical - 900 ACE Turbo для BRP Ski-Doo 008 - RENEGADE 900 ACE Turbo - 2019
-
№АртикулНазвание
-
10515178369 Indicator. Package Adrenaline. Includes 10 to 10aIndicator. Package Adrenaline. Includes 10 to 10a
-
10515178568 Indicator. Except Package Adrenaline. Includes 10 to 10aIndicator. Except Package Adrenaline. Includes 10 to 10a
-
10a415129349 Lens. Except Package AdrenalineLens. Except Package Adrenaline
-
12515178326 Button. Package AdrenalineButton. Package Adrenaline
-
60515177866 SupportSupport
-
70250000725 Screw M4 X 16Screw M4 X 16
-
600515178225 DESS Switch, RFIDDESS Switch, RFID
-
610278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
620515178286 Grey - RF Key Ass'yGrey - RF Key Ass'y
-
800515178645 Heated Visor Wiring Harness. Package EnduroHeated Visor Wiring Harness. Package Enduro
-
810572103300 Cap. Package EnduroCap. Package Enduro
-
970515178570 Compressor ModuleCompressor Module
-
972710000992 ClipClip
-
975515178567 Manifold SupportManifold Support
-
980390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
985207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
990234061410 Flat Washer 6 mmFlat Washer 6 mm
-
995232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
1050515178608 Seat Wiring Harness. Package EnduroSeat Wiring Harness. Package Enduro
-
1060515178502 Switch Rocker. Package EnduroSwitch Rocker. Package Enduro
-
1400710001103 Voltage RegulatorVoltage Regulator
-
1410293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
2400515178102 LH Housing. Package AdrenalineLH Housing. Package Adrenaline
-
2400515178196 LH Housing. Except Package AdrenalineLH Housing. Except Package Adrenaline
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2470415130141 SleeveSleeve
-
3000515178556 Chassis Wiring Harness. Except Package Enduro. Includes 3000 to 3000cChassis Wiring Harness. Except Package Enduro. Includes 3000 to 3000c
-
3000515178558 Chassis Wiring Harness. Package Enduro. Includes 3000 to 3000dChassis Wiring Harness. Package Enduro. Includes 3000 to 3000d
-
3005250001062 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3010515177929 Rivet. Package EnduroRivet. Package Enduro
-
3060515178494 Motor Ass'y. Package EnduroMotor Ass'y. Package Enduro
-
3061515178220 Stop Plate. Package EnduroStop Plate. Package Enduro
-
3070207661644 Hex. Flanged Screw M6 X 16. Package EnduroHex. Flanged Screw M6 X 16. Package Enduro
-
3110515177460 Switch Ass'y. Package EnduroSwitch Ass'y. Package Enduro
-
3110515177460 Switch Ass'y. Except Package EnduroSwitch Ass'y. Except Package Enduro
-
3115207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
3116515178495 Rivet. Package EnduroRivet. Package Enduro
-
3118234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
3120210262040 Hex. Flanged Screw M6 X 20. Package EnduroHex. Flanged Screw M6 X 20. Package Enduro
-
3210515178177 4 Circuits Female Housing4 Circuits Female Housing
-
3211515178202 Connector CoilConnector Coil
-
3250515178501 Rocket SwitchRocket Switch
-
3600515178338 Ground WireGround Wire
-
3605207661634 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3607232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3610250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
4090515178244 SupportSupport
-
4091293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
4092293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4100278003012 Starter RelayStarter Relay
-
4200515178336 Battery WireBattery Wire
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4320415129898 Lead Battery 18 Amperes. Includes 4320 to 4320aLead Battery 18 Amperes. Includes 4320 to 4320a
-
4320a250000282 Battery Bolt KitBattery Bolt Kit
-
4330710001817 Protector CapProtector Cap
-
4340515177870 Battery Strip. Includes 4340 to 4340aBattery Strip. Includes 4340 to 4340a
-
4340a293450275 InsertInsert
-
4370207151244 Hex. Screw M5 X 12Hex. Screw M5 X 12
-
4371391301600 WasherWasher
-
4700515178155 Ground WireGround Wire
-
4720207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4730233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
