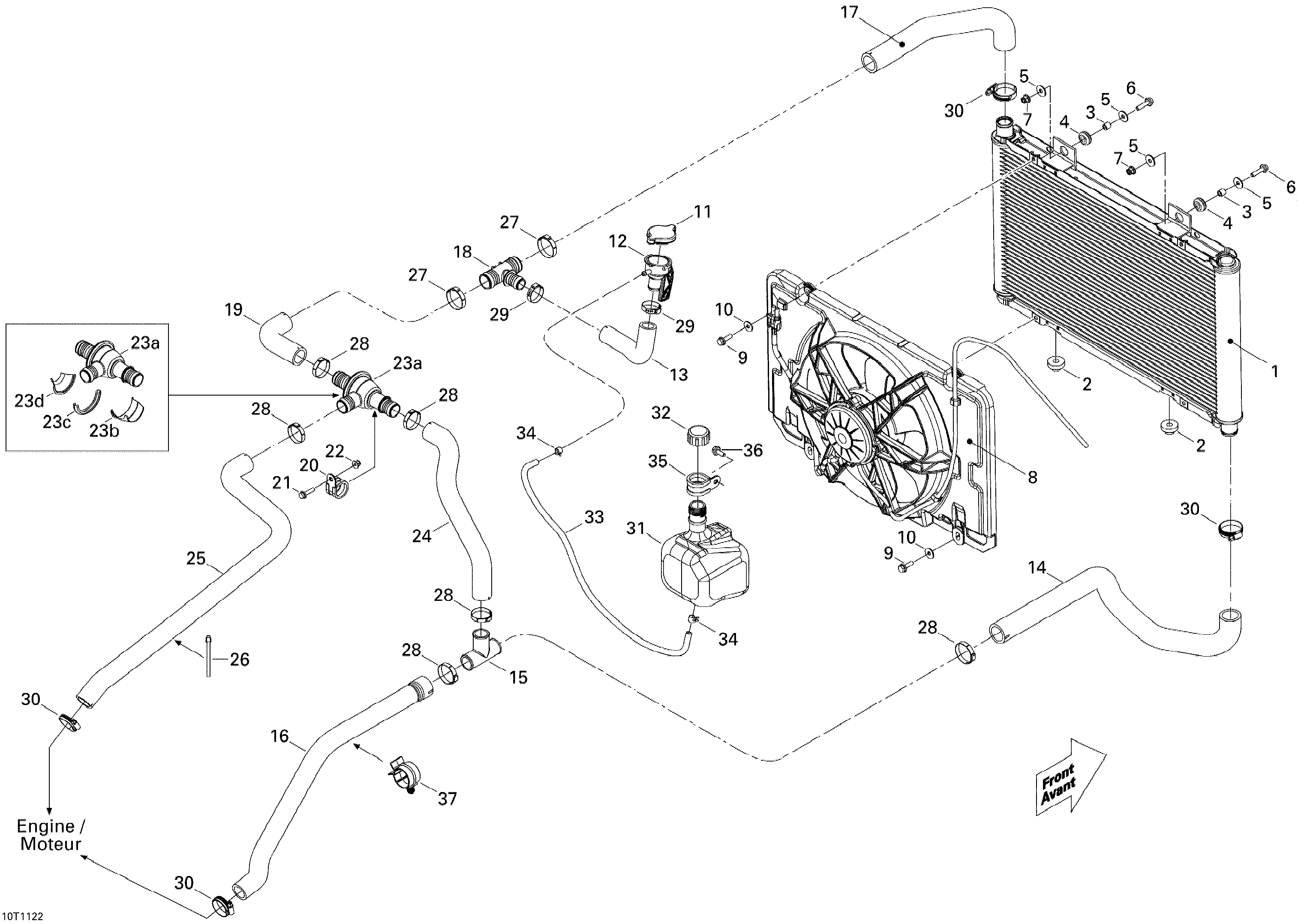

01- Cooling System, Until Sept 1st 2010 для BRP Commander 1000 - 2011
-
№АртикулНазвание
-
1709200252 RadiatorRadiator
-
2709200285 GrommetGrommet
-
3293900045 BushingBushing
-
4293720053 GrommetGrommet
-
5250200082 Flat WasherFlat Washer
-
6207662534 Hex. Flanged ScrewHex. Flanged Screw
-
7233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
8709200373 Fan Ass'yFan Ass'y
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10234062410 Flat Washer 6 mmFlat Washer 6 mm
-
11709200207 Pressure CapPressure Cap
-
12709200179 Filler NeckFiller Neck
-
13709200264 Filler Neck HoseFiller Neck Hose
-
14709200263 Radiator Inlet HoseRadiator Inlet Hose
-
15509000219 T-FittingT-Fitting
-
16709200356 Pump HosePump Hose
-
17709200265 Radiator Outlet HoseRadiator Outlet Hose
-
18509000372 T-FittingT-Fitting
-
19709200290 Intermediate HoseIntermediate Hose
-
20293650218 Hose RetainerHose Retainer
-
21207662534 Hex. Flanged ScrewHex. Flanged Screw
-
22233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
23a709200383 Thermostat HousingThermostat Housing
-
23b709200385 ReflectorReflector
-
23C709200386 ReflectorReflector
-
23D709200387 ReflectorReflector
-
24709200266 Recirculation HoseRecirculation Hose
-
25709200268 Intermediate HoseIntermediate Hose
-
26293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
27509000045 Oetiker Gear ClampOetiker Gear Clamp
-
28509000045 Oetiker Gear ClampOetiker Gear Clamp
-
29293650099 Oetiker Gear ClampOetiker Gear Clamp
-
30293650098 Norma Gear ClampNorma Gear Clamp
-
31709200312 Coolant TankCoolant Tank
-
32709200328 Tank CapTank Cap
-
33415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
34414554800 Spring ClampSpring Clamp
-
35709200036 Hose AnchorHose Anchor
-
36207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
37275500590 RetainerRetainer
