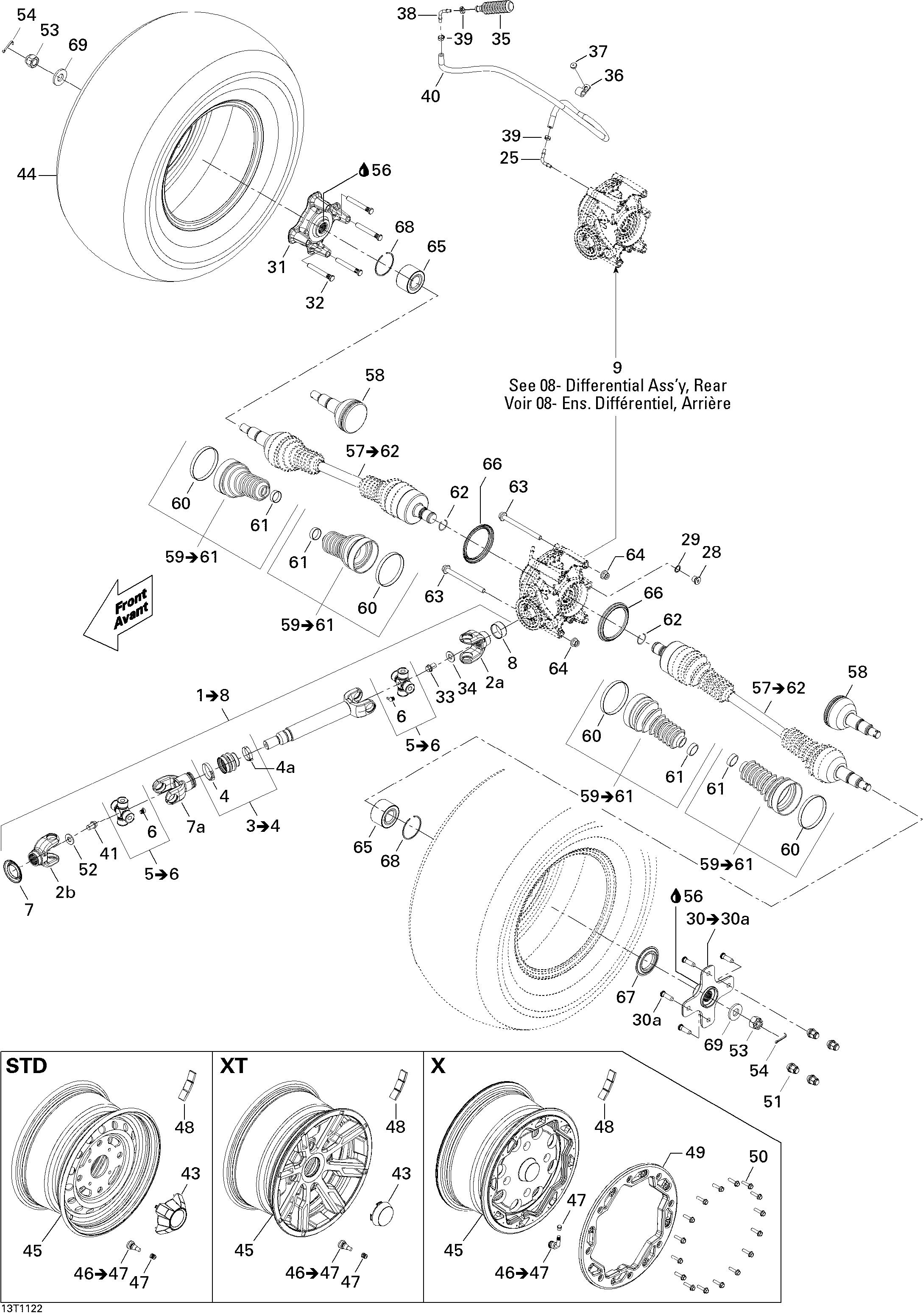

08- Drive System, Rear для BRP Commander 1000 - 2011
-
№АртикулНазвание
-
1703500762 Rear Drive Shaft Ass'y. Includes 1 to 8Rear Drive Shaft Ass'y. Includes 1 to 8
-
2a705501372 Differential Fixed JointDifferential Fixed Joint
-
2b705501373 Engine Fix JointEngine Fix Joint
-
3703500255 Rubber Boot KitRubber Boot Kit
-
4293650138 Oetiker Gear ClampOetiker Gear Clamp
-
5703000022 Unit Pack KitUnit Pack Kit
-
6705500841 Grease FittingGrease Fitting
-
7705501123 ProtectorProtector
-
7A705501072 Sliding JointSliding Joint
-
8705400036 Wear RingWear Ring
-
28705500504 Fill Level PlugFill Level Plug
-
29705500506 Copper WasherCopper Washer
-
30705501199 Wheel Hub Ass'yWheel Hub Ass'y
-
30a250300045 Wheel StudWheel Stud
-
31705400713 Wheel HubWheel Hub
-
32705400791 Wheel StudWheel Stud
-
33250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
34250200102 Flat Washer M12Flat Washer M12
-
35705400352 Rubber BellowRubber Bellow
-
36705600232 Hose Retainer 13 mmHose Retainer 13 mm
-
37390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
38705500893 Vent ValveVent Valve
-
39293650025 Oetiker Gear ClampOetiker Gear Clamp
-
40415079800 Hose 1/4''Hose 1/4''
-
41250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
42293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
43705400504 Wheel Cap. XT CamoWheel Cap. XT Camo
-
43705400520 Wheel Cap. XT Except CamoWheel Cap. XT Except Camo
-
43705400921 Wheel Cap. STDWheel Cap. STD
-
44705500964 Rear Tire. XT International Except CamoRear Tire. XT International Except Camo
-
44705500964 Rear Tire. XT North America Except CamoRear Tire. XT North America Except Camo
-
44705501129 Rear Tire. STDRear Tire. STD
-
44705501186 Rear Tire. XRear Tire. X
-
44705500964 Rear Tire. XT CamoRear Tire. XT Camo
-
44705501295 Rear Tire. XT EuropeRear Tire. XT Europe
-
45705500965 Silver Rear Rim. XT International Except CamoSilver Rear Rim. XT International Except Camo
-
45705500965 Silver Rear Rim. XT North America Except CamoSilver Rear Rim. XT North America Except Camo
-
45705501249 Rear Rim. STDRear Rim. STD
-
45705501137 Rear Rim. XRear Rim. X
-
45705501261 Black Rear Rim. XT CamoBlack Rear Rim. XT Camo
-
45705500965 Silver Rear Rim. XT EuropeSilver Rear Rim. XT Europe
-
46705400193 Rim Valve With Cap. Except XRim Valve With Cap. Except X
-
46705400872 Rim Valve with Cap. XRim Valve with Cap. X
-
47293000110 Valve Cap. Except XValve Cap. Except X
-
47293000111 Valve Cap. XValve Cap. X
-
48705501385 1/2 OZ Weight1/2 OZ Weight
-
49705400841 Reinforcement Disk. XReinforcement Disk. X
-
50207662584 Hex. Flanged Screw M6 X 25. XHex. Flanged Screw M6 X 25. X
-
51250100042 Steel Wheel Nut. STDSteel Wheel Nut. STD
-
51250100082 Chrome Wheel Nut M10 X 1.25. XT Except CamoChrome Wheel Nut M10 X 1.25. XT Except Camo
-
51250100100 Black Wheel Nut M10 X 1.25. XT CamoBlack Wheel Nut M10 X 1.25. XT Camo
-
51250100100 Black Wheel Nut M10 X 1.25. XBlack Wheel Nut M10 X 1.25. X
-
52250200102 Flat Washer M12Flat Washer M12
-
53250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
54250400036 Cotter PinCotter Pin
-
56293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
57705500960 CV Joint Ass'y. Includes 63 to 68CV Joint Ass'y. Includes 63 to 68
-
58705500980 CV JointCV Joint
-
59705500870 Boot Kit. Includes 65 to 67Boot Kit. Includes 65 to 67
-
60293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
61293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
62705500845 CirclipCirclip
-
63230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
64233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
65293350040 Cone BearingCone Bearing
-
66705501124 Wear RingWear Ring
-
67705501121 Wear SleeveWear Sleeve
-
68293370019 CirclipCirclip
-
69250200049 Spring WasherSpring Washer
