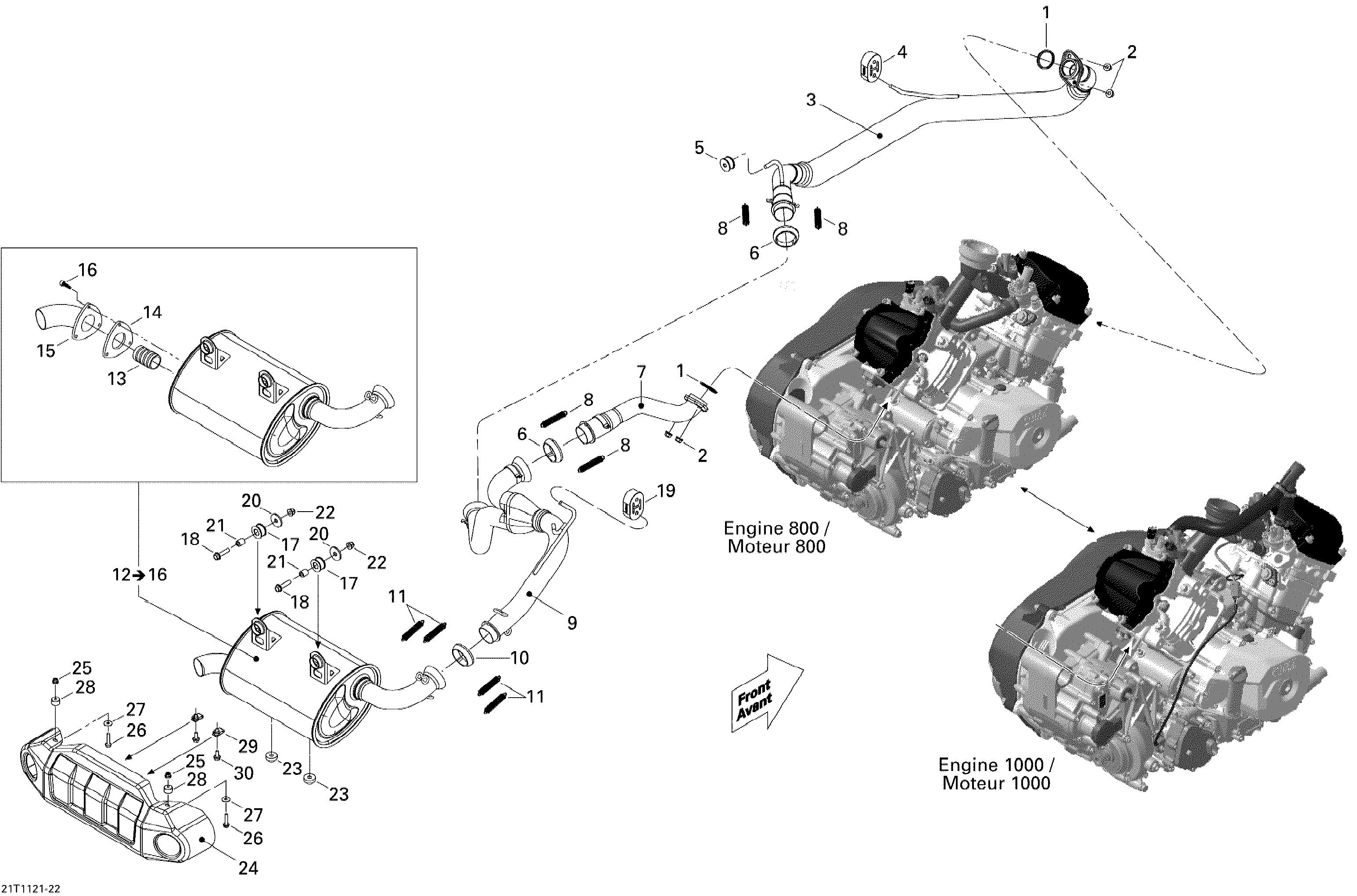

01- Exhaust System для BRP Commander 1000 - 2011
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3707600541 Front Head PipeFront Head Pipe
-
4707600638 Rubber BumperRubber Bumper
-
5707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
6514053532 Exhaust GasketExhaust Gasket
-
7707600543 Rear Head PipeRear Head Pipe
-
8415107100 SpringSpring
-
9707600639 Junction Head PipeJunction Head Pipe
-
10514053532 Exhaust GasketExhaust Gasket
-
11415107100 SpringSpring
-
12707600545 Muffler Ass'y. Includes 12 to 16Muffler Ass'y. Includes 12 to 16
-
12707600753 Muffler Ass'y. Europe, Includes 12 to 16Muffler Ass'y. Europe, Includes 12 to 16
-
13715900089 Spark ArrestorSpark Arrestor
-
14715900090 GasketGasket
-
15715900091 Muffler Outlet End PieceMuffler Outlet End Piece
-
16205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
17707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
18207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
19707600638 Rubber BumperRubber Bumper
-
20503032900 WasherWasher
-
21293900082 BushingBushing
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23709200285 GrommetGrommet
-
24707600675 DeflectorDeflector
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
27250200082 Flat WasherFlat Washer
-
28707000882 BushingBushing
-
29250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
30207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
