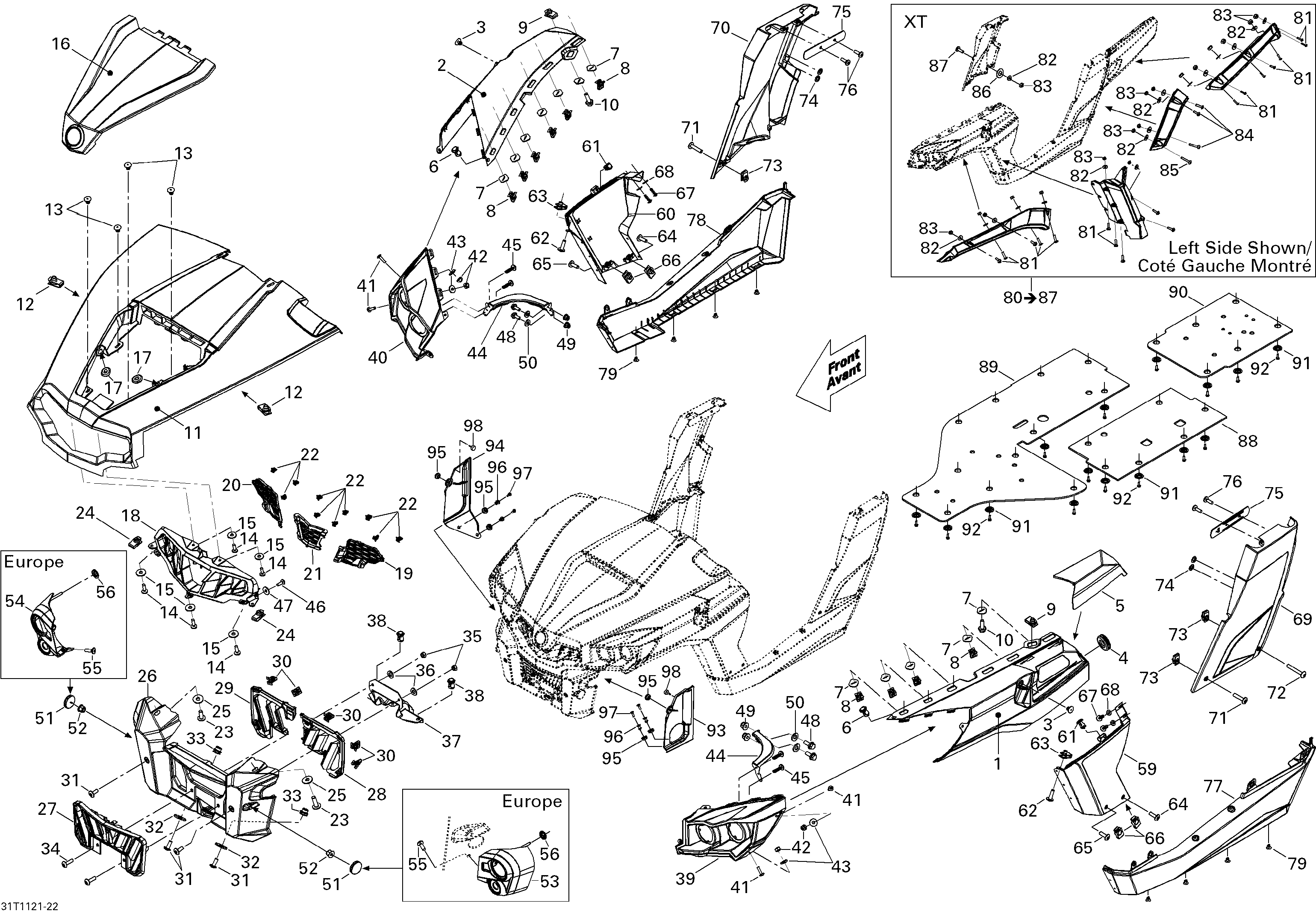

09- Body And Accessories для BRP Commander 1000 - 2011
-
№АртикулНазвание
-
1705003030 LH Front Fender, Yellow. Yellow ModelsLH Front Fender, Yellow. Yellow Models
-
1705003826 LH Front Fender, Red. Red ModelsLH Front Fender, Red. Red Models
-
1705004376 LH Front Fender, Camo. Camo ModelsLH Front Fender, Camo. Camo Models
-
1705004378 LH Front Fender, Black. Black ModelsLH Front Fender, Black. Black Models
-
2705003029 RH Front Fender, Yellow. Yellow ModelsRH Front Fender, Yellow. Yellow Models
-
2705003827 RH Front Fender, Red. Red ModelsRH Front Fender, Red. Red Models
-
2705004375 RH Front Fender, Camo. Camo ModelsRH Front Fender, Camo. Camo Models
-
2705004377 RH Front Fender, Black. Black ModelsRH Front Fender, Black. Black Models
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517303756 GrommetGrommet
-
5705004337 CVT Inlet Cover, Yellow. Yellow ModelsCVT Inlet Cover, Yellow. Yellow Models
-
5705004381 CVT Inlet Cover, Red. Red ModelsCVT Inlet Cover, Red. Red Models
-
5705004382 CVT Inlet Cover, Camo. Camo ModelsCVT Inlet Cover, Camo. Camo Models
-
5705004383 CVT Inlet Cover, Black. Black ModelsCVT Inlet Cover, Black. Black Models
-
6293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
7705003841 Support PlateSupport Plate
-
8517302785 ClipClip
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11705002915 Fixed Hood, Yellow. Yellow Models, Black ModelsFixed Hood, Yellow. Yellow Models, Black Models
-
11705004379 Fixed Hood, Red. Red ModelsFixed Hood, Red. Red Models
-
11705004380 Fixed Hood, Camo. Camo ModelsFixed Hood, Camo. Camo Models
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15234062670 Flat WasherFlat Washer
-
16705002881 Removable Hood, Yellow. Yellow ModelsRemovable Hood, Yellow. Yellow Models
-
16705004384 Removable Hood, Red. Red ModelsRemovable Hood, Red. Red Models
-
16705004385 Removable Hood, Camo. Camo ModelsRemovable Hood, Camo. Camo Models
-
16705004386 Removable Hood, Black. Black ModelsRemovable Hood, Black. Black Models
-
17705005156 Oblong WasherOblong Washer
-
18705003629 Upper Facia, BlackUpper Facia, Black
-
19705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
20705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
21705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
22517302785 ClipClip
-
23250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
24250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
25234082410 Flat Washer 8 mmFlat Washer 8 mm
-
26705003306 Front FaciaFront Facia
-
27705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
28705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
29705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
30517302785 ClipClip
-
31250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
32234062670 Flat WasherFlat Washer
-
33293450274 InsertInsert
-
34250000197 Torx Truss Screw M8 X 30. Except XT ModelsTorx Truss Screw M8 X 30. Except XT Models
-
35232081414 Hex. Nut M8. Except XT ModelsHex. Nut M8. Except XT Models
-
36234081410 Flat Washer 8 mm. Except XT ModelsFlat Washer 8 mm. Except XT Models
-
37705003399 Bottom Deflector. Except XT ModelsBottom Deflector. Except XT Models
-
38293150089 Tuflok Plastic Rivet. Except XT ModelsTuflok Plastic Rivet. Except XT Models
-
39705002885 LH Front FaciaLH Front Facia
-
40705002886 RH Front FaciaRH Front Facia
-
41250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
42232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
43234062670 Flat WasherFlat Washer
-
44705002891 Facia Front SupportFacia Front Support
-
45250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
46250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
47234062670 Flat WasherFlat Washer
-
48207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
51705002409 Reflector, Amber. Except EuropeReflector, Amber. Except Europe
-
52233251414 Hex. Flanged Elastic Nut M5. Except EuropeHex. Flanged Elastic Nut M5. Except Europe
-
53705003627 LH Flasher Cap. EuropeLH Flasher Cap. Europe
-
54705003628 RH Flasher Cap. EuropeRH Flasher Cap. Europe
-
55250000146 Truss Head Torx Screw K50 X 16. EuropeTruss Head Torx Screw K50 X 16. Europe
-
56389804300 Push Nut. EuropePush Nut. Europe
-
59705002887 LH Front Lateral Pannel, Yellow. Yellow ModelsLH Front Lateral Pannel, Yellow. Yellow Models
-
59705003847 LH Front Lateral Pannel, Red. Red ModelsLH Front Lateral Pannel, Red. Red Models
-
59705004389 LH Front Lateral Pannel, Camo. Camo ModelsLH Front Lateral Pannel, Camo. Camo Models
-
59705004391 LH Front Lateral Pannel, Black. Black ModelsLH Front Lateral Pannel, Black. Black Models
-
60705002888 RH Front Lateral Pannel, Yellow. Yellow ModelsRH Front Lateral Pannel, Yellow. Yellow Models
-
60705003848 RH Front Lateral Pannel, Red. Red ModelsRH Front Lateral Pannel, Red. Red Models
-
60705004390 RH Front Lateral Pannel, Camo. Camo ModelsRH Front Lateral Pannel, Camo. Camo Models
-
60705004392 RH Front Lateral Pannel, Black. Black ModelsRH Front Lateral Pannel, Black. Black Models
-
61293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
62250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
63250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
64250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
65250000350 Torx Truss Screw M6 X 20. Except XT ModelsTorx Truss Screw M6 X 20. Except XT Models
-
66250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
67250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
68234051410 Flat Washer M5Flat Washer M5
-
69705002904 LH Rear Lateral Pannel, Yellow. Yellow ModelsLH Rear Lateral Pannel, Yellow. Yellow Models
-
69705003850 LH Rear Lateral Pannel, Red. Red ModelsLH Rear Lateral Pannel, Red. Red Models
-
69705004396 LH Rear Lateral Pannel, Camo. Camo ModelsLH Rear Lateral Pannel, Camo. Camo Models
-
69705004398 LH Rear Lateral Pannel, Black. Black ModelsLH Rear Lateral Pannel, Black. Black Models
-
70705002905 RH Rear Lateral Pannel, Yellow. Yellow ModelsRH Rear Lateral Pannel, Yellow. Yellow Models
-
70705003851 RH Rear Lateral Pannel, Red. Red ModelsRH Rear Lateral Pannel, Red. Red Models
-
70705004395 RH Rear Lateral Pannel, Camo. Camo ModelsRH Rear Lateral Pannel, Camo. Camo Models
-
70705004397 RH Rear Lateral Pannel, Black. Black ModelsRH Rear Lateral Pannel, Black. Black Models
-
71250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
72250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
73250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
74250100129 Push NutPush Nut
-
75705004261 Support PlateSupport Plate
-
76250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
77705003318 LH Central Lateral Pannel. STDLH Central Lateral Pannel. STD
-
77705003938 LH Central Lateral Pannel. XTLH Central Lateral Pannel. XT
-
77705004355 LH Central Lateral Pannel. XLH Central Lateral Pannel. X
-
78705003319 RH Central Lateral Pannel. STDRH Central Lateral Pannel. STD
-
78705003939 RH Central Lateral Pannel. XTRH Central Lateral Pannel. XT
-
78705004356 RH Central Lateral Pannel. XRH Central Lateral Pannel. X
-
79293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
80715001013 Fender Extension Kit. Includes 80 to 87Fender Extension Kit. Includes 80 to 87
-
81250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
82234062670 Flat WasherFlat Washer
-
83232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
84250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
85250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
86706200281 Hardened WasherHardened Washer
-
87250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
88705003513 LH Skid PlateLH Skid Plate
-
89705003514 RH Skid PlateRH Skid Plate
-
90705003624 Rear Skid PlateRear Skid Plate
-
91705004510 CupCup
-
92210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
93705002895 LH Deflector. Except XT ModelsLH Deflector. Except XT Models
-
93705005113 LH Deflector. XTLH Deflector. XT
-
94705002894 RH DeflectorRH Deflector
-
95293720053 GrommetGrommet
-
96517303439 KnobKnob
-
97250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
98708000759 Rubber StopperRubber Stopper
