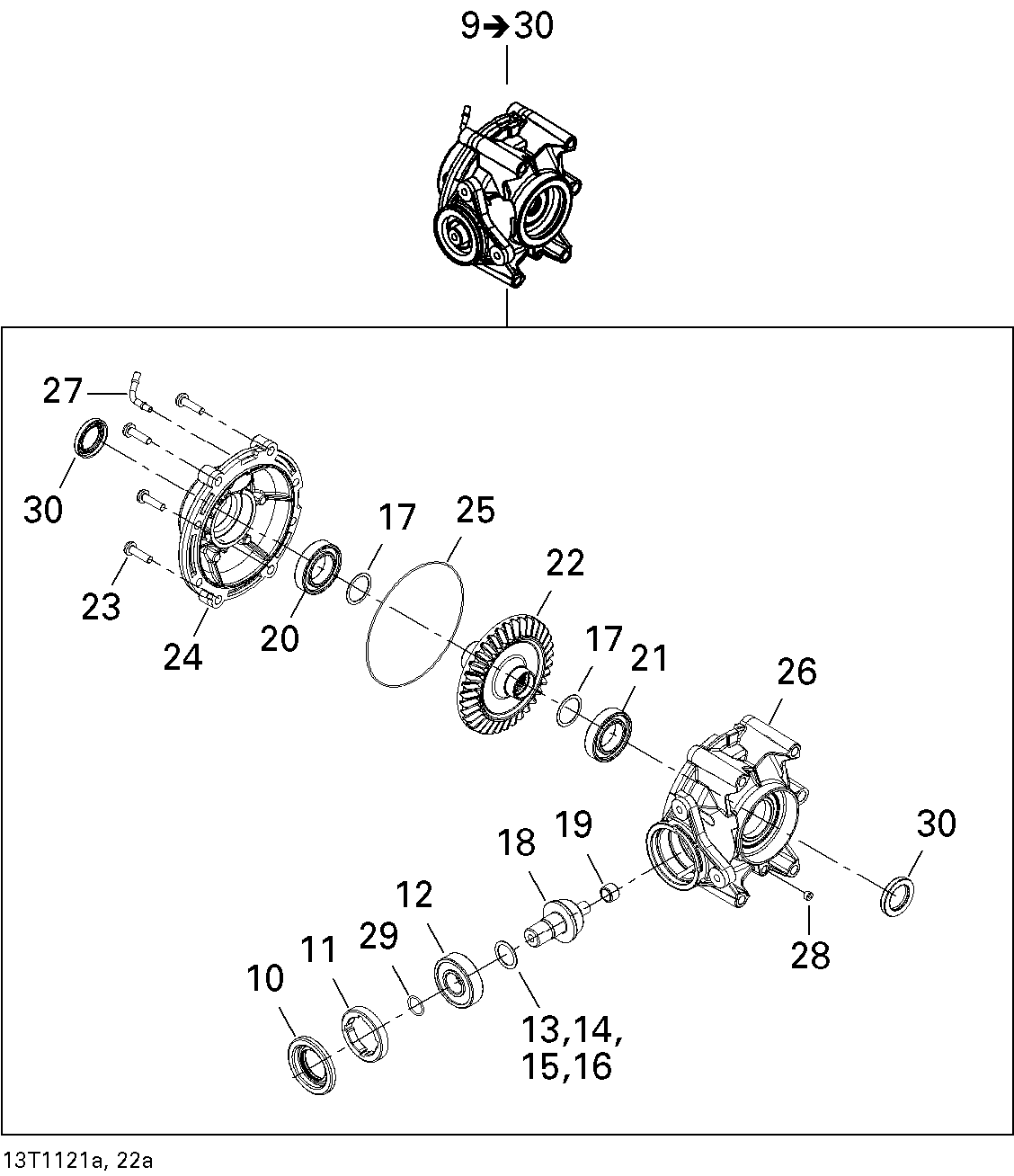

08- Differential Ass, Rear 1 для BRP Commander 1000 - 2011
-
№АртикулНазвание
-
9705501391 Rear Differental Ass'y. Includes 9 to 30. Up to 2010-10-14Rear Differental Ass'y. Includes 9 to 30. Up to 2010-10-14
-
10705400027 Oil Seal. Up to 2010-10-14Oil Seal. Up to 2010-10-14
-
10705400027 Oil Seal. Up to 2010-10-14Oil Seal. Up to 2010-10-14
-
11705500987 Nut. Up to 2010-10-14Nut. Up to 2010-10-14
-
12705500260 Ball Bearing. Up to 2010-10-14Ball Bearing. Up to 2010-10-14
-
13705500075 Pinion Gear Shim .022''. Up to 2010-10-14Pinion Gear Shim .022''. Up to 2010-10-14
-
14703500049 Pinion Shim Kit. Up to 2010-10-14Pinion Shim Kit. Up to 2010-10-14
-
15705501162 Pinion Gear Shim. Up to 2010-10-14Pinion Gear Shim. Up to 2010-10-14
-
17703500548 Differential Shim Kit. Up to 2010-10-14Differential Shim Kit. Up to 2010-10-14
-
23705500892 Screw. Up to 2010-10-14Screw. Up to 2010-10-14
-
25705500265 Seal. Up to 2010-10-14Seal. Up to 2010-10-14
-
27705500893 Vent Valve. Up to 2010-10-14Vent Valve. Up to 2010-10-14
-
28705500894 Drain Plug. Up to 2010-10-14Drain Plug. Up to 2010-10-14
-
29705500267 O-Ring. Up to 2010-10-14O-Ring. Up to 2010-10-14
-
30705501196 Oil Seal. Up to 2010-10-14Oil Seal. Up to 2010-10-14
-
6ABA 00003 - 00076. STD, 1000EFI, Yellow, C/U. Up to 2010-10-1400003 - 00076. STD, 1000EFI, Yellow, C/U. Up to 2010-10-14
-
6ABC 00011 - 00082. STD, 1000EFI, Yellow, INT. Up to 2010-10-1400011 - 00082. STD, 1000EFI, Yellow, INT. Up to 2010-10-14
-
6BBA 00003 - 00831. XT, 1000EFI, Yellow, C/U. Up to 2010-10-1400003 - 00831. XT, 1000EFI, Yellow, C/U. Up to 2010-10-14
-
6BBB 00189 - 00906. XT, 1000EFI, Yellow, EUR. Up to 2010-10-1400189 - 00906. XT, 1000EFI, Yellow, EUR. Up to 2010-10-14
-
6BBC 00001 - 00657. XT, 1000EFI, Yellow, INT. Up to 2010-10-1400001 - 00657. XT, 1000EFI, Yellow, INT. Up to 2010-10-14
-
6BBD 00002 - 00066. XT, 1000EFI, Red C/U. Up to 2010-10-1400002 - 00066. XT, 1000EFI, Red C/U. Up to 2010-10-14
-
6BBE 00001 - 00042. XT, 1000EFI, Camo C/U. Up to 2010-10-1400001 - 00042. XT, 1000EFI, Camo C/U. Up to 2010-10-14
-
6BBF 00007 - 00018. XT, 1000EFI, Camo INT. Up to 2010-10-1400007 - 00018. XT, 1000EFI, Camo INT. Up to 2010-10-14
-
6EBA 00002 - 00344. X, 1000EFI, Black, C/U. Up to 2010-10-1400002 - 00344. X, 1000EFI, Black, C/U. Up to 2010-10-14
-
6EBA 00347 - 00350. X, 1000EFI, Black, C/U. Up to 2010-10-1400347 - 00350. X, 1000EFI, Black, C/U. Up to 2010-10-14
-
6EBC 00001 - 00325. X, 1000EFI, Black, INT. Up to 2010-10-1400001 - 00325. X, 1000EFI, Black, INT. Up to 2010-10-14
