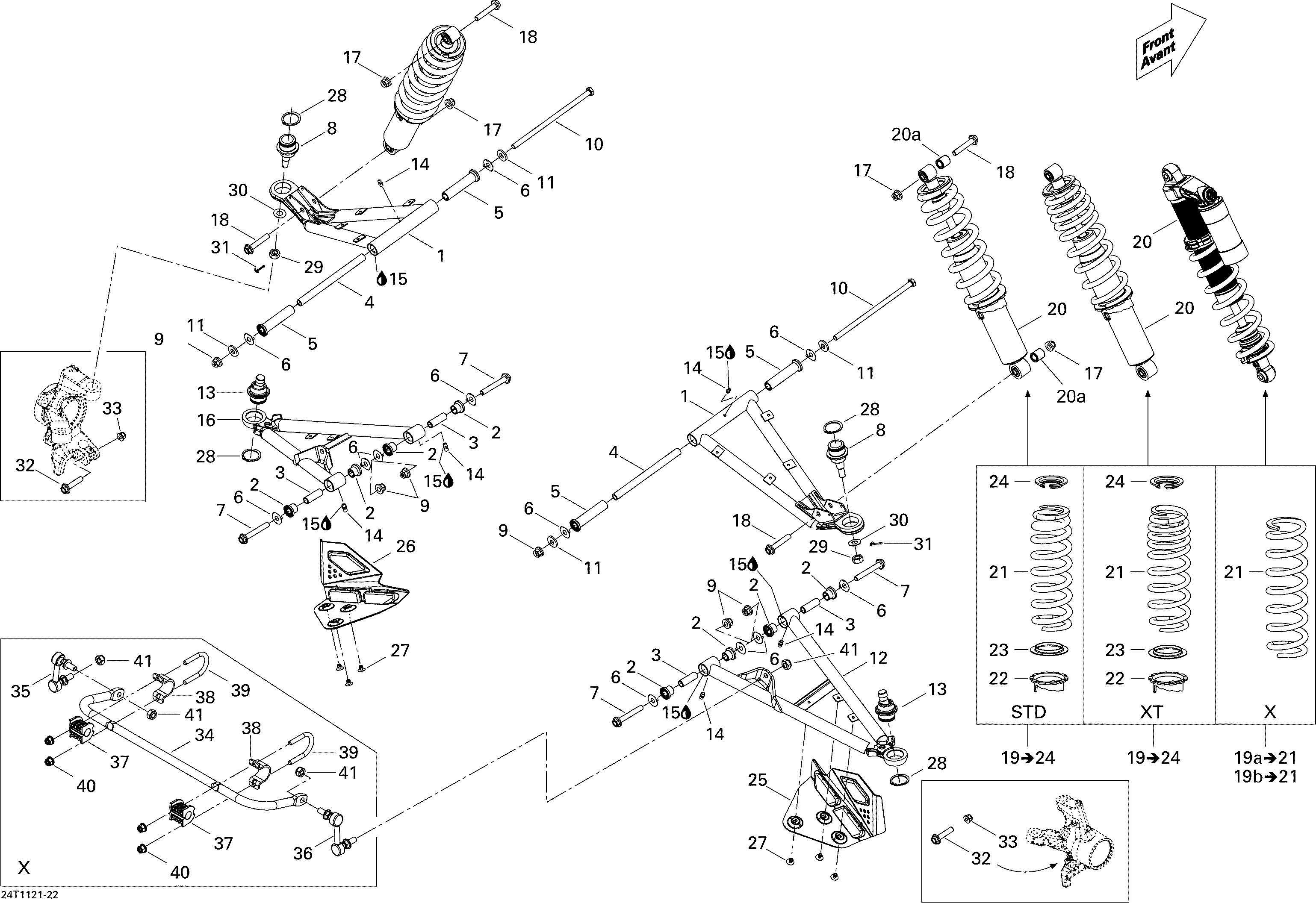

07- Front Suspension для BRP Commander 1000 - 2011
-
№АртикулНазвание
-
1706200796 Suspension Upper ArmSuspension Upper Arm
-
2706200181 CushionCushion
-
3706200678 Inner BushingInner Bushing
-
4706201061 Inner BushingInner Bushing
-
5706201062 CushionCushion
-
6706201063 Wear PlateWear Plate
-
7207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
8706201370 Upper Ball JointUpper Ball Joint
-
9233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
10250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
11250200129 Flat Washer M10Flat Washer M10
-
12706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
13706201371 Ball JointBall Joint
-
14408200700 Grease FittingGrease Fitting
-
15293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
16706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
17233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
18207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
20706200780 Front Shock. STDFront Shock. STD
-
20706200782 Front Shock. XT Yellow ModelFront Shock. XT Yellow Model
-
20706201123 Front Shock. XFront Shock. X
-
20a715900122 BushingBushing
-
21706201124 Front Spring, Green-Gold. XFront Spring, Green-Gold. X
-
21706200859 Front Spring, Gold-Red. STDFront Spring, Gold-Red. STD
-
21706200860 Front Spring, Green-Black-Black. XT Yellow ModelFront Spring, Green-Black-Black. XT Yellow Model
-
21706201367 Front Spring, Gold-Yellow. XT Red ModelFront Spring, Gold-Yellow. XT Red Model
-
21706201369 Front Spring, Red-Yellow. XT Camo ModelFront Spring, Red-Yellow. XT Camo Model
-
22706000910 Adjustable Ring. STD, XTAdjustable Ring. STD, XT
-
23706000911 Protector Ring. STD, XTProtector Ring. STD, XT
-
24706000567 Spring Stopper. STD, XTSpring Stopper. STD, XT
-
25706200616 RH ProtectorRH Protector
-
26706200615 LH ProtectorLH Protector
-
27293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
28293370035 CirclipCirclip
-
29250100099 Nut M12Nut M12
-
30706200281 Hardened WasherHardened Washer
-
31211400017 Cotter PinCotter Pin
-
32207604544 Hex. Flanged Screw M10 X 45Hex. Flanged Screw M10 X 45
-
33233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
34706200865 Sway Bar. XSway Bar. X
-
35706200894 LH Double Ball Joint. XLH Double Ball Joint. X
-
36706201032 RH Double Ball Joint. XRH Double Ball Joint. X
-
37706201086 Stabilizer Bushing. XStabilizer Bushing. X
-
38706201087 Clamp. XClamp. X
-
39506060600 U-clamp. XU-clamp. X
-
40233281414 Hex. Flanged Elastic Nut M8. XHex. Flanged Elastic Nut M8. X
-
41232501416 Elastic Flanged Nut M10. XElastic Flanged Nut M10. X
