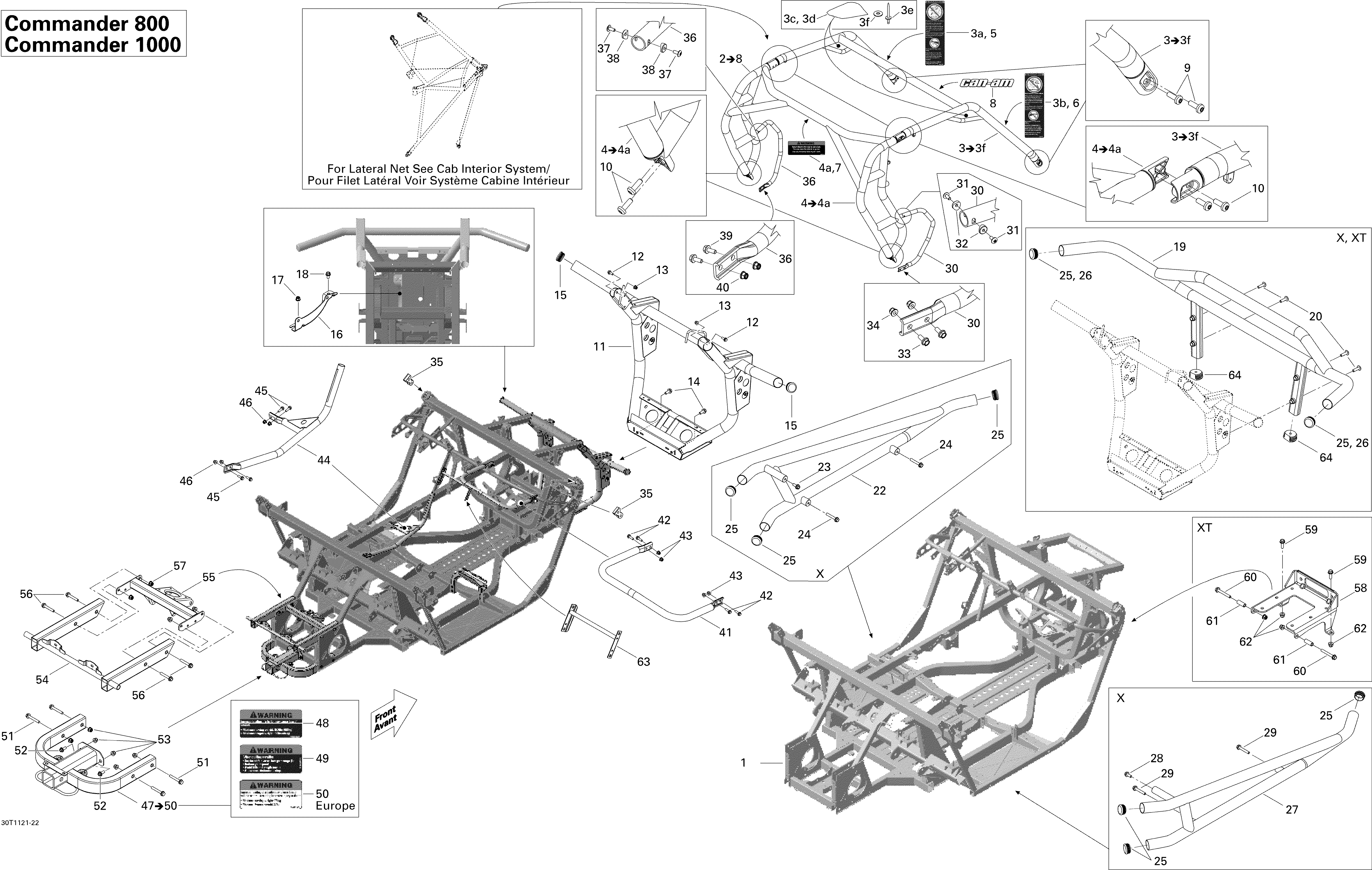

09- Frame, System STD, XT, X для BRP Commander 1000 - 2011
-
№АртикулНазвание
-
1715001325 Frame Ass'y, BlackFrame Ass'y, Black
-
2705203579 Cage Kit, Front And Rear Section. Includes 2 to 8Cage Kit, Front And Rear Section. Includes 2 to 8
-
3715001295 Front Cage. Includes 3 to 3fFront Cage. Includes 3 to 3f
-
3a704902413 Warning LabelWarning Label
-
3b704902415 Warning LabelWarning Label
-
3c705004985 LH Cage Cap MouldingLH Cage Cap Moulding
-
3d705004986 RH Cage Cap MouldingRH Cage Cap Moulding
-
3e293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3f250200121 Flat WasherFlat Washer
-
4705202596 Rear Cage. Includes 4 to 4aRear Cage. Includes 4 to 4a
-
4a704902424 Warning LabelWarning Label
-
5704902413 Warning LabelWarning Label
-
6704902415 Warning LabelWarning Label
-
7704902424 Warning LabelWarning Label
-
8704902319 Cage Decal. XCage Decal. X
-
9250000438 Torx Truss Screw M10 X 30Torx Truss Screw M10 X 30
-
10250000438 Torx Truss Screw M10 X 30Torx Truss Screw M10 X 30
-
11705202614 Front BumperFront Bumper
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
15705202455 CapCap
-
16705201721 Front Differential SupportFront Differential Support
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
19715000958 Black Front Bumper. XT, XBlack Front Bumper. XT, X
-
20250000197 Torx Truss Screw M8 X 30. XT, XTorx Truss Screw M8 X 30. XT, X
-
22705201962 LH Rocker Panel Lower Guard. XLH Rocker Panel Lower Guard. X
-
23207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. XHex. Flanged Screw M8 X 20, Scotch Grip. X
-
24207585044 Hex. Flanged Screw M8 X 50. XHex. Flanged Screw M8 X 50. X
-
25705202455 Cap. XCap. X
-
26705202455 Cap. XTCap. XT
-
27705201975 RH Rocker Panel Lower Guard. XRH Rocker Panel Lower Guard. X
-
28207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. XHex. Flanged Screw M8 X 20, Scotch Grip. X
-
29207585044 Hex. Flanged Screw M8 X 50. XHex. Flanged Screw M8 X 50. X
-
30705202612 RH Side Protecting TubeRH Side Protecting Tube
-
31250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
32705202223 Offset WasherOffset Washer
-
33207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
34233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
35705202129 Binding PlateBinding Plate
-
36705202609 LH Side Protecting TubeLH Side Protecting Tube
-
37250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
38705202223 Offset WasherOffset Washer
-
39207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
41705202494 Passenger HandlePassenger Handle
-
42207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
43233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
44705202161 Console HandleConsole Handle
-
45207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
46233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47715001251 Trailer Hitch Ass'y. Includes 47 to 50Trailer Hitch Ass'y. Includes 47 to 50
-
48704902336 Warning Decal, TowingWarning Decal, Towing
-
49704902345 Warning Decal, TrailerWarning Decal, Trailer
-
50704902436 Warning Decal, Towing. EuropeWarning Decal, Towing. Europe
-
51207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
52207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
53233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
54705202165 Box holderBox holder
-
55705202166 Differential SupportDifferential Support
-
56207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
57233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
58715000704 Winch Plate. XTWinch Plate. XT
-
59207682544 Hex. Flanged Screw M8 X 25. XTHex. Flanged Screw M8 X 25. XT
-
60207686044 Hex. Flanged Screw M8 x 60. XTHex. Flanged Screw M8 x 60. XT
-
61705202499 Bushing. XTBushing. XT
-
62233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
63705202463 Panel ReinforcementPanel Reinforcement
-
64705202631 Tube Cap. EuropeTube Cap. Europe
