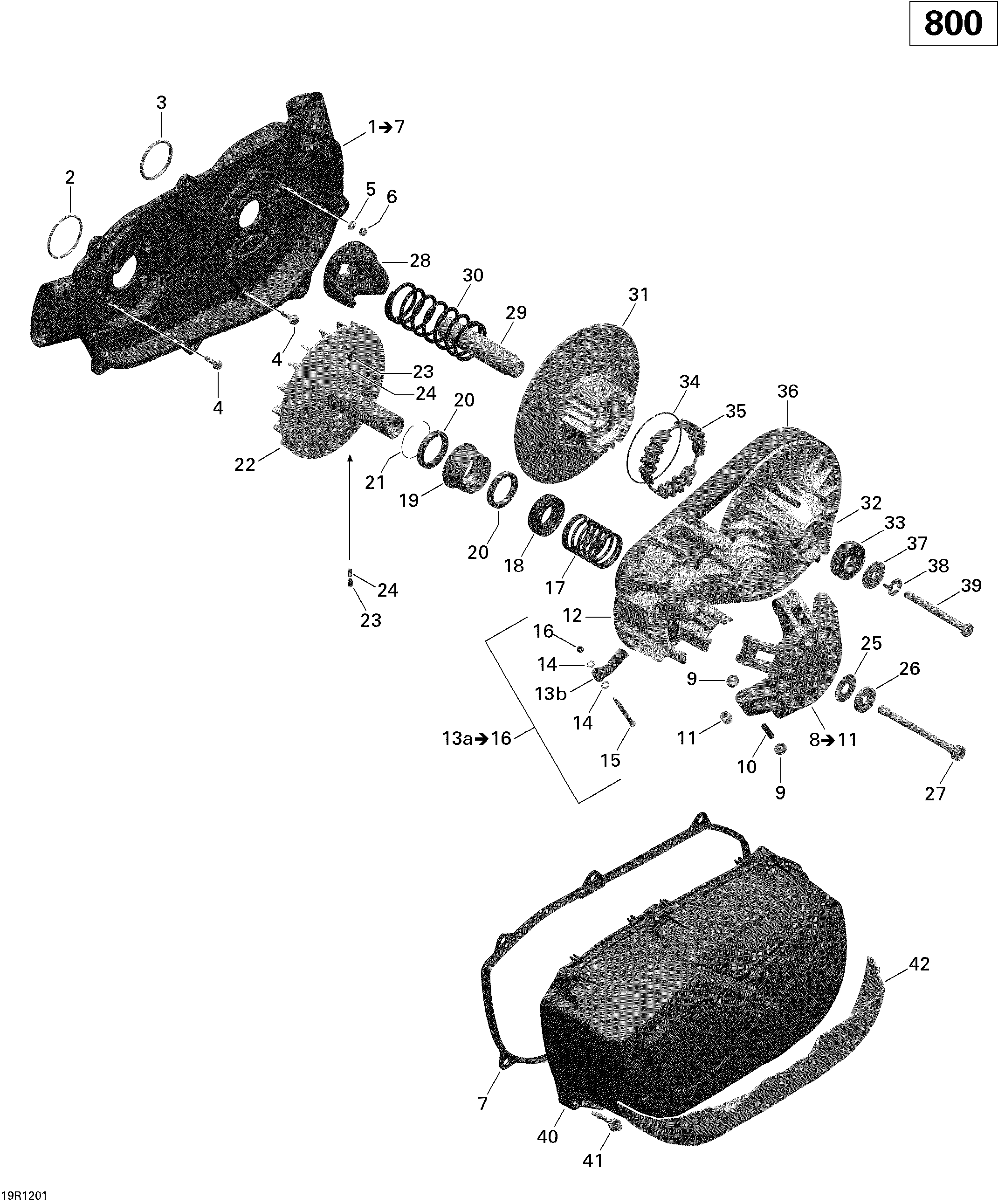

05- Transmission для BRP Commander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1420611407 CVT Air Guide Kit. Includes 1 to 7CVT Air Guide Kit. Includes 1 to 7
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5224061121 Flat WasherFlat Washer
-
6232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
7420430126 GasketGasket
-
8420280519 Governor Cup Ass'y. Includes 8 to 11Governor Cup Ass'y. Includes 8 to 11
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10420233895 Roller SleeveRoller Sleeve
-
11420229994 RollerRoller
-
12420280465 Outher HaftOuther Haft
-
13a420248607 Centrifugal Lever Set. Includes 13a to 16Centrifugal Lever Set. Includes 13a to 16
-
17420238615 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
18420627577 Spring SeatSpring Seat
-
19420257195 Drive Pulley ClutchDrive Pulley Clutch
-
20420632377 Ball BearingBall Bearing
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25420627920 Thrust WasherThrust Washer
-
26420627765 Spring WasherSpring Washer
-
27420641855 Hex. Screw M12 X 135Hex. Screw M12 X 135
-
28420280470 CamCam
-
29420220913 Driven Pulley ShaftDriven Pulley Shaft
-
30420238176 Compression SpringCompression Spring
-
31420280236 Inner Half Ass'yInner Half Ass'y
-
32420280178 Outer Half Pulley Ass'y. Includes 32 to 35Outer Half Pulley Ass'y. Includes 32 to 35
-
33420932421 Ball BearingBall Bearing
-
34420245910 Retaining RingRetaining Ring
-
35420660124 Torque GearTorque Gear
-
36715000302 V-BeltV-Belt
-
37420627591 Thrust WasherThrust Washer
-
38420245920 Tab WasherTab Washer
-
39420441480 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
40420611393 Variator CoverVariator Cover
-
41420440567 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
42420975050 Heat Protection MatHeat Protection Mat
