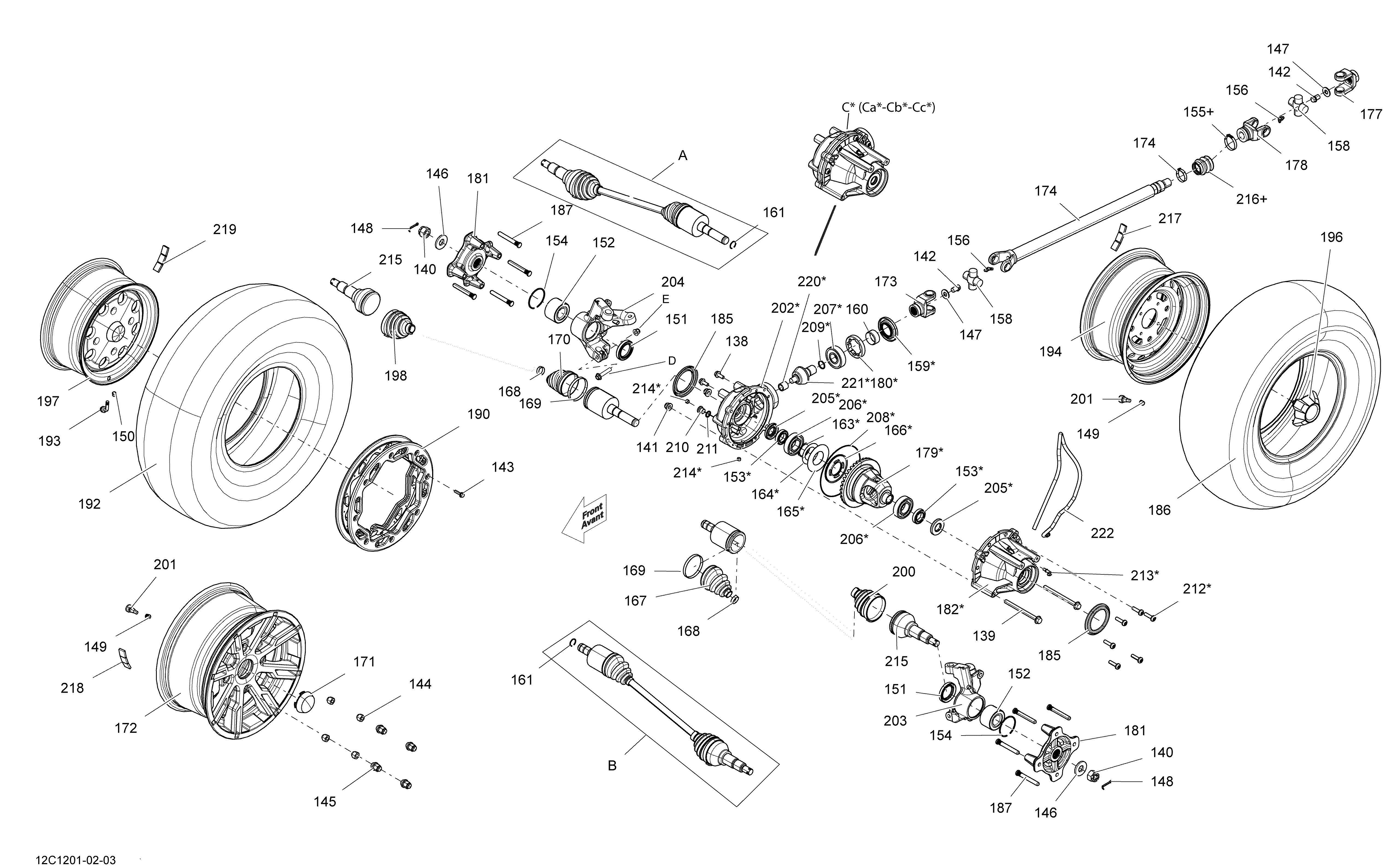

07- Drive System, Front STD And XT для BRP Commander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
138207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
139230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
140250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
141233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
142250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
144250100042 Wheel Nut. STD ModelWheel Nut. STD Model
-
144250100100 Black Wheel Nut M10 X 1.25. XT Model CamoBlack Wheel Nut M10 X 1.25. XT Model Camo
-
145250100082 Chrome Wheel Nut M10 X 1.25. XT ModelChrome Wheel Nut M10 X 1.25. XT Model
-
146250200049 Spring WasherSpring Washer
-
147250200102 Flat Washer M12Flat Washer M12
-
148250400036 Cotter PinCotter Pin
-
149293000110 Valve CapValve Cap
-
151293250246 O-RingO-Ring
-
152293350040 Cone BearingCone Bearing
-
153293350044 Ball BearingBall Bearing
-
154293370019 CirclipCirclip
-
155293650138 Oetiker ClampOetiker Clamp
-
156715900067 Grease FittingGrease Fitting
-
158703000024 Unit Pack KitUnit Pack Kit
-
159705400027 Oil SealOil Seal
-
160705400036 Wear RingWear Ring
-
161705400042 CirclipCirclip
-
164703500288 Differential Shim KitDifferential Shim Kit
-
165703500050 Differential Shim KitDifferential Shim Kit
-
167705400512 Differential Boot KitDifferential Boot Kit
-
168293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
169715900139 Oetiker Clamp 71,1mmOetiker Clamp 71,1mm
-
169293650193 Oetiker Clamp 67mmOetiker Clamp 67mm
-
170705400512 Differential Boot KitDifferential Boot Kit
-
171705400504 Wheel Cap. XT Model CamoWheel Cap. XT Model Camo
-
171705400520 Wheel Cap. XT ModelWheel Cap. XT Model
-
172705400632 Silver Front Rim. XT ModelSilver Front Rim. XT Model
-
172705400919 Black Front Rim. XT Model CamoBlack Front Rim. XT Model Camo
-
172705400632 Silver Front Rim. XT Model EuropeSilver Front Rim. XT Model Europe
-
173705500348 Fix JointFix Joint
-
174705400637 Drive Axle Ass'yDrive Axle Ass'y
-
177705400782 Fix JointFix Joint
-
178705500762 Slip JointSlip Joint
-
179705400645 DifferentialDifferential
-
180705400661 NutNut
-
181705400713 Wheel HubWheel Hub
-
182705400762 Front CoverFront Cover
-
185705400780 Wear SleeveWear Sleeve
-
186705400781 Front Tire. STD ModelFront Tire. STD Model
-
186705401046 Front Tire. STD Europe ModelFront Tire. STD Europe Model
-
187705400791 Wheel StudWheel Stud
-
192705400631 Front Tire. XT ModelFront Tire. XT Model
-
192705400961 Front Tire. XT Model EuropeFront Tire. XT Model Europe
-
194705400910 Front Rim. STD ModelFront Rim. STD Model
-
194705400910 Front Rim. STD Model EuropeFront Rim. STD Model Europe
-
196705400921 Wheel Cap. STD ModelWheel Cap. STD Model
-
198705500907 Wheel Boot KitWheel Boot Kit
-
200705500907 Wheel Boot KitWheel Boot Kit
-
201705400193 Rim Valve With CapRim Valve With Cap
-
202705401136 Front Gear CoverFront Gear Cover
-
203705401147 LH KnuckleLH Knuckle
-
204703500789 RH KnuckleRH Knuckle
-
205705500255 Oil SealOil Seal
-
206705500259 Ball BearingBall Bearing
-
207705500260 Ball BearingBall Bearing
-
208705500265 SealSeal
-
209705500267 O-RingO-Ring
-
210705500504 Fill Level PlugFill Level Plug
-
211705500506 Copper WasherCopper Washer
-
212705500892 ScrewScrew
-
213705500893 Vent ValveVent Valve
-
214705500894 Drain PlugDrain Plug
-
215705501238 CV JointCV Joint
-
216703500255 Rubber Boot Kit. Includes Parts With +Rubber Boot Kit. Includes Parts With +
-
217705501385 1/2 OZ Weight1/2 OZ Weight
-
218705501385 1/2 OZ Weight1/2 OZ Weight
-
220705501408 Needle BearingNeedle Bearing
-
221705501570 10Teeth Pinion10Teeth Pinion
-
222415080200 Hose, PolyurethaneHose, Polyurethane
-
A705400952 RH CV Joint Ass'yRH CV Joint Ass'y
-
B705400953 LH CV Joint Ass'yLH CV Joint Ass'y
-
C*705401135 Front Differential Ass'y. Includes Parts With *Front Differential Ass'y. Includes Parts With *
-
Ca*703500049 Pinion Shim KitPinion Shim Kit
-
Cb*705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
Cc*705501162 Pinion Gear ShimPinion Gear Shim
-
D207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
E233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
