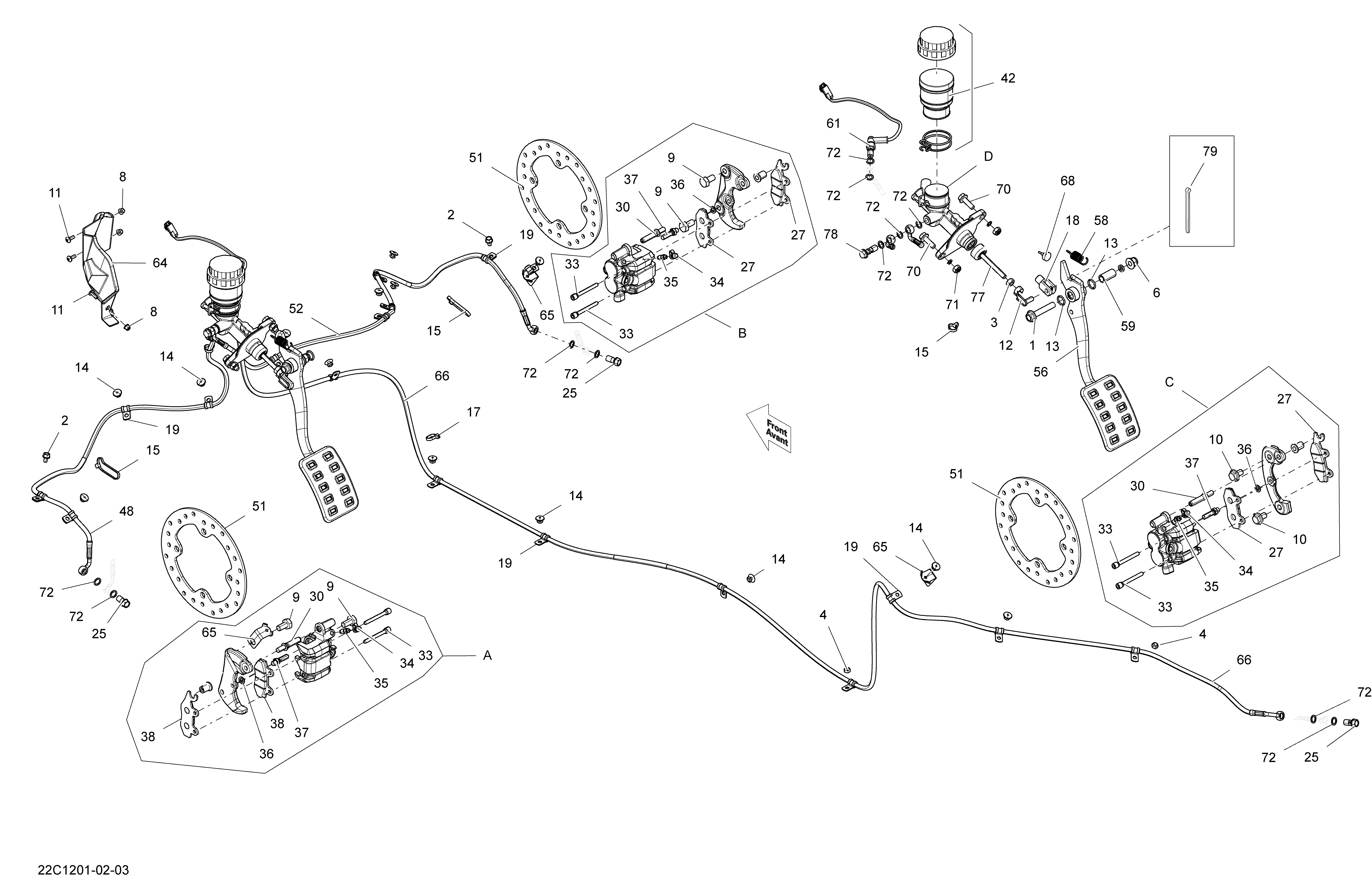

06- Brakes для BRP Commander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
2210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
3232081414 Hex. Nut M8Hex. Nut M8
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
8233251494 Elastic Flanged NutElastic Flanged Nut
-
9250000057 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
10250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
11250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
12250400056 PinPin
-
13293300144 O-RingO-Ring
-
14390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18705600100 YokeYoke
-
19705600459 ClampClamp
-
25705600609 Banjo BoltBanjo Bolt
-
27715500336 Brake Pad KitBrake Pad Kit
-
30715500333 Spring Boot KitSpring Boot Kit
-
33715500337 Pin SetPin Set
-
34705600080 Bleeding ScrewBleeding Screw
-
35705600080 Bleeding ScrewBleeding Screw
-
37715500333 Spring Boot KitSpring Boot Kit
-
38715500335 Brake Pad KitBrake Pad Kit
-
42715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
48705600682 LH Front HoseLH Front Hose
-
51705600684 Brake DiscBrake Disc
-
52705600719 RH Flexible Front HoseRH Flexible Front Hose
-
56705600724 Brake PedalBrake Pedal
-
58705600792 Brake Pedal SpringBrake Pedal Spring
-
59705600815 Inner SpacerInner Spacer
-
61705600914 Brake SwitchBrake Switch
-
64705600917 LH Front DeflectorLH Front Deflector
-
65705601036 Hose BracketHose Bracket
-
66705601037 Rear Flexible HoseRear Flexible Hose
-
68708000759 Rubber StopperRubber Stopper
-
70207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
71232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
72705600310 Copper WasherCopper Washer
-
77705600833 Master Cylinder RodMaster Cylinder Rod
-
78705600958 Banjo BoltBanjo Bolt
-
79371800700 Cotter PinCotter Pin
-
A705600679 LH CaliperLH Caliper
-
B705600678 RH CaliperRH Caliper
-
C705600872 Rear CaliperRear Caliper
-
D705600681 Master CylinderMaster Cylinder
