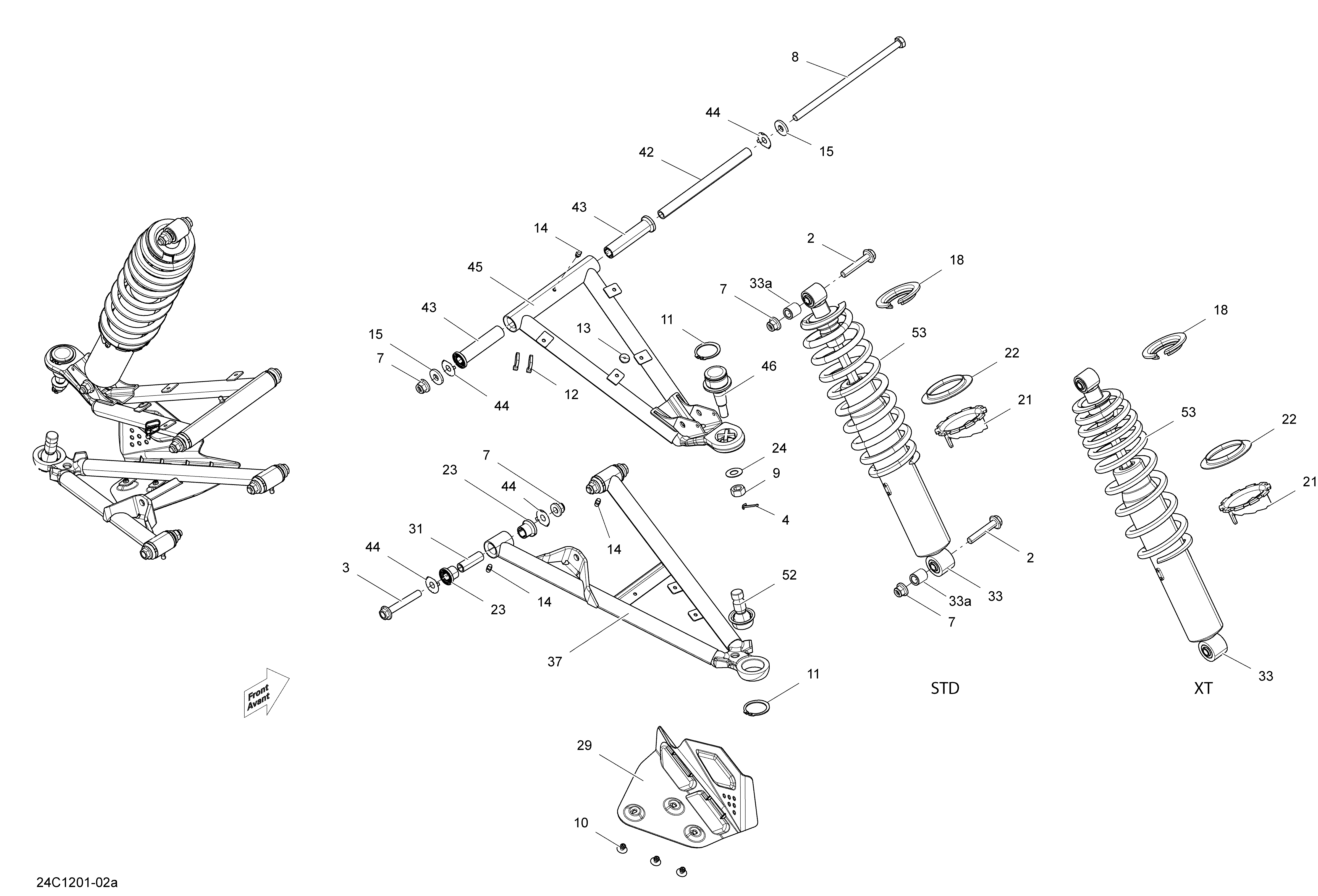

07- Front Suspension для BRP Commander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
2207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4211400017 Cotter PinCotter Pin
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
9250100099 Nut M12Nut M12
-
10293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
11293370035 CirclipCirclip
-
12293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14408200700 Grease FittingGrease Fitting
-
15503190439 WasherWasher
-
18706000567 Spring StopperSpring Stopper
-
21706000910 Adjustable RingAdjustable Ring
-
22706000911 Protector RingProtector Ring
-
23703500875 Bushing Kit. Includes 31Bushing Kit. Includes 31
-
24706200281 Hardened WasherHardened Washer
-
29706200616 RH ProtectorRH Protector
-
29706200615 LH ProtectorLH Protector
-
31703500875 Bushing Kit. Includes 23Bushing Kit. Includes 23
-
33706200782 Front ShockFront Shock
-
33a715900122 BushingBushing
-
37706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
37706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
42706201061 Inner BushingInner Bushing
-
43706201062 CushionCushion
-
44706201063 Wear PlateWear Plate
-
45706200796 Suspension Upper ArmSuspension Upper Arm
-
46706202044 Ball JointBall Joint
-
52706201371 Ball JointBall Joint
