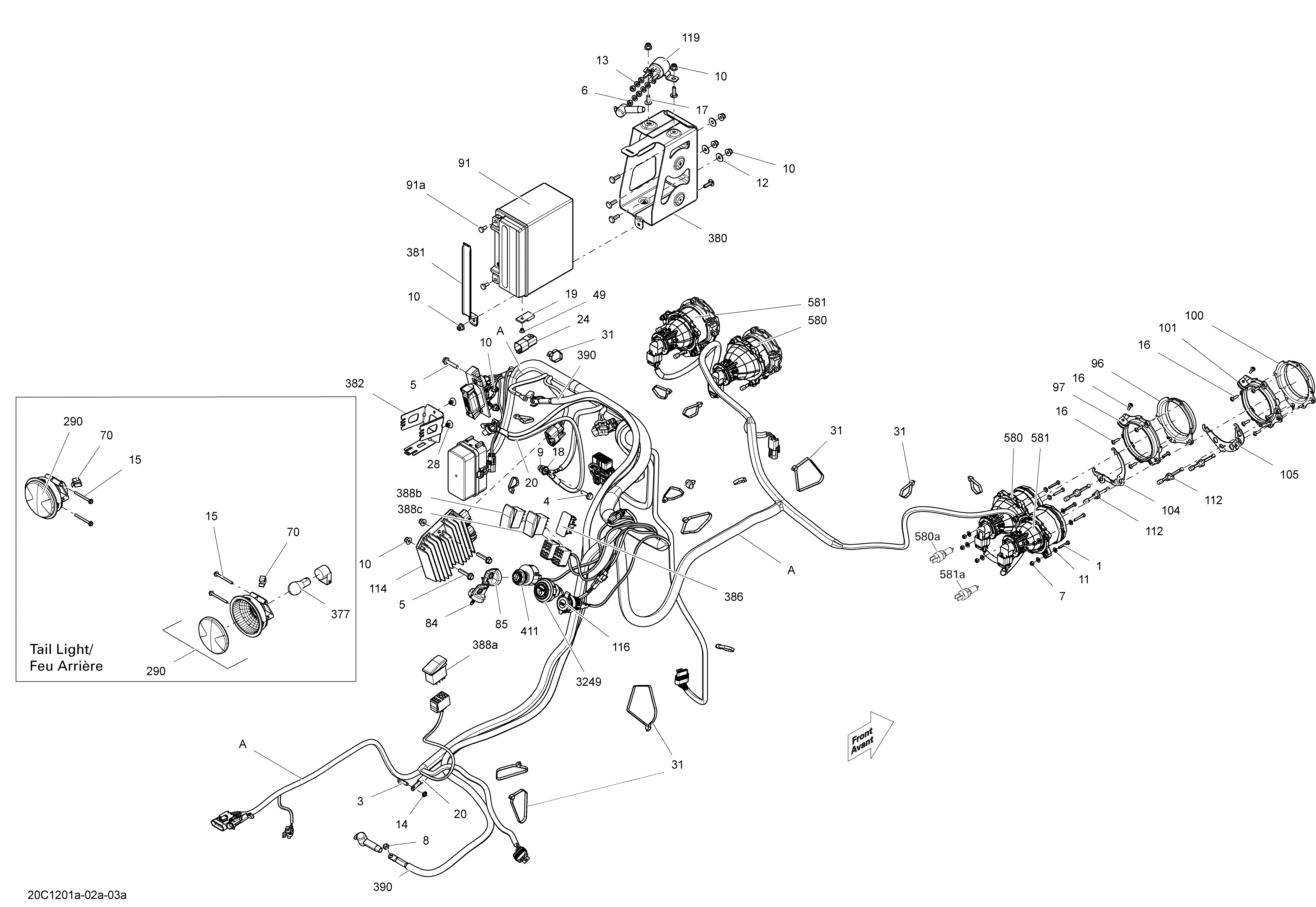

10- Electrical System для BRP Commander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6232061600 Hex. Nut M6Hex. Nut M6
-
7232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11234051410 Flat Washer M5Flat Washer M5
-
12234062410 Flat Washer 6 mmFlat Washer 6 mm
-
13234161601 Lock Washer Helical M6Lock Washer Helical M6
-
14234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
15241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
16250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
17250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
18250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
19270000141 ClipClip
-
20710002147 Ground CableGround Cable
-
24278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
28293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
31293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
49390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
70414227300 ClipClip
-
84710002183 Grey-Electronic KeyGrey-Electronic Key
-
85710000817 Black-Electronic KeyBlack-Electronic Key
-
91410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
96710001081 RH Low Front HousingRH Low Front Housing
-
96710001083 LH Low Front HousingLH Low Front Housing
-
97710001082 RH Low Rear HousingRH Low Rear Housing
-
97710001084 LH Low Rear HousingLH Low Rear Housing
-
100710001085 RH High Front HousingRH High Front Housing
-
100710001087 LH High Front HousingLH High Front Housing
-
101710001086 RH High Rear HousingRH High Rear Housing
-
101710001088 LH High Rear HousingLH High Rear Housing
-
104710001094 RH Low Light SupportRH Low Light Support
-
104710001037 LH Low Light SupportLH Low Light Support
-
105710001115 RH High Light SupportRH High Light Support
-
105710001036 LH High Light SupportLH High Light Support
-
112710001147 Setting ScrewSetting Screw
-
114710001191 Voltage RegulatorVoltage Regulator
-
116710001248 Outlet DCOutlet DC
-
119710001364 Starter RelayStarter Relay
-
290710001645 Tail LightTail Light
-
377520000758 BulbBulb
-
380710001911 Battery SupportBattery Support
-
381710001916 Battery HolderBattery Holder
-
382710001918 Fuse HolderFuse Holder
-
386710001999 Plug CarlingPlug Carling
-
390710002146 Positive CablePositive Cable
-
411710002327 Ignition SwitchIgnition Switch
-
580710002524 Low Beam Ass'yLow Beam Ass'y
-
581710002525 High Beam Ass'yHigh Beam Ass'y
-
3249710002594 Engine START ButtonEngine START Button
-
388a710002053 Switch, Over RideSwitch, Over Ride
-
388b710001737 4X4 Switch4X4 Switch
-
388c710002199 PPS Sport SwitchPPS Sport Switch
-
580a415129249 Halogen BulbHalogen Bulb
-
581a415129249 Halogen BulbHalogen Bulb
-
91A295500849 Battery Fastener KitBattery Fastener Kit
-
A710002625 Wiring Harness Ass'yWiring Harness Ass'y
