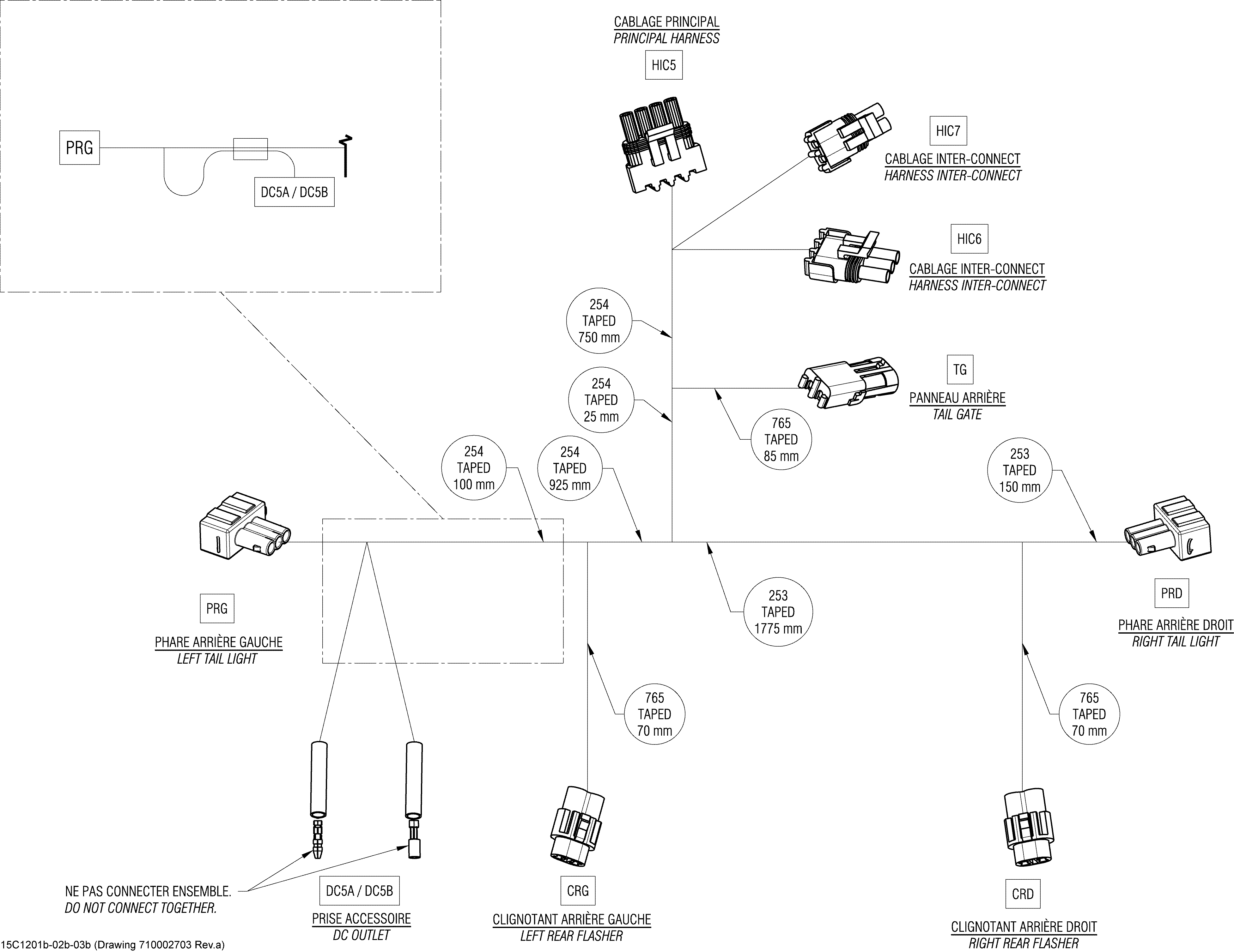

10- Electrical Harness Rear Europe для BRP Commander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1710002703 Rear Wiring Harness. Includes 1 to TGRear Wiring Harness. Includes 1 to TG
-
32278000998 Female TerminalFemale Terminal
-
226278000222 Male TerminalMale Terminal
-
228409007300 Female TerminalFemale Terminal
-
229278000223 Female TerminalFemale Terminal
-
231278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
237278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
238278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
239278000395 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
242278000218 Wire SealWire Seal
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
280409012100 Female TerminalFemale Terminal
-
283409209200 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
284409012300 SealSeal
-
295278001008 Insulated SheathInsulated Sheath
-
297278001007 Insulated SheathInsulated Sheath
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
484415128501 SealSeal
-
504278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
506710000421 Female TerminalFemale Terminal
-
765293740027 Adhesive TapeAdhesive Tape
-
918278002261 Female TerminalFemale Terminal
-
1160710002104 HousingHousing
-
1176710002249 ClipClip
-
1302710002711 Shrink TubingShrink Tubing
-
CRD409209200 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
CRD409012300 SealSeal
-
CRD409012100 Female TerminalFemale Terminal
-
CRG409209200 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
CRG409012300 SealSeal
-
CRG409012100 Female TerminalFemale Terminal
-
DC5A278001008 Insulated SheathInsulated Sheath
-
DC5A278002261 Female TerminalFemale Terminal
-
DC5B293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DC5B278001007 Insulated SheathInsulated Sheath
-
DC5B710000421 Female TerminalFemale Terminal
-
HIC5278000395 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HIC5278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
HIC5278000223 Female TerminalFemale Terminal
-
HIC6278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
HIC6278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
HIC6278000223 Female TerminalFemale Terminal
-
HIC7278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
HIC7278000218 Wire SealWire Seal
-
HIC7409007300 Female TerminalFemale Terminal
-
PRD710002104 HousingHousing
-
PRD415128501 SealSeal
-
PRD278000998 Female TerminalFemale Terminal
-
PRG710002104 HousingHousing
-
PRG415128501 SealSeal
-
PRG278000998 Female TerminalFemale Terminal
-
TG710002249 ClipClip
-
TG278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
TG278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
TG278000222 Male TerminalMale Terminal
