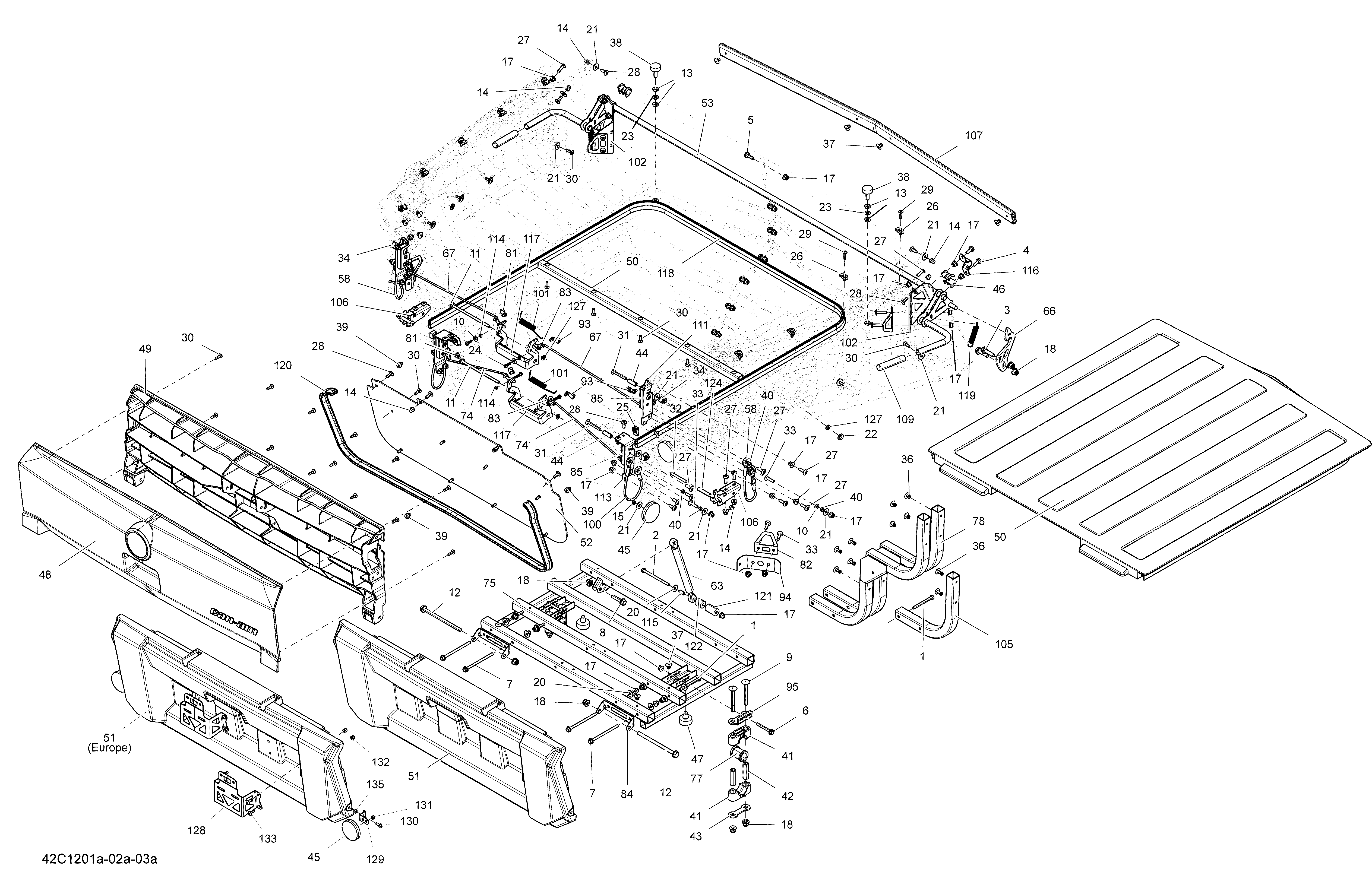

09- Rear Cargo Box 1 Common Parts для BRP Commander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1207066544 Hex. Screw M6 X 65Hex. Screw M6 X 65
-
2207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
3207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
7207669584 Hex. Flanged Screw M6 X 95Hex. Flanged Screw M6 X 95
-
8207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
9207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
10224061121 Flat WasherFlat Washer
-
11230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
12230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
13232180600 Nut M8Nut M8
-
14232361493 Domed Nut M6Domed Nut M6
-
15232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234062410 Flat Washer 6 mmFlat Washer 6 mm
-
21234062670 Flat WasherFlat Washer
-
22234081100 Flat Washer 8 mmFlat Washer 8 mm
-
23234181401 Lock Washer 8 mmLock Washer 8 mm
-
24241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
25250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
26250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
29250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
31250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
32250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
33250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
34269500725 Nut Housing Ass'yNut Housing Ass'y
-
36293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
37293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
38293720091 Frame Rubber BumperFrame Rubber Bumper
-
39293830005 Rubber PlugRubber Plug
-
40293900101 BushingBushing
-
41506150400 Housing HalfHousing Half
-
42506150500 Housing BushingHousing Bushing
-
43506150600 Stopper PlateStopper Plate
-
44517304852 SpacerSpacer
-
45705002408 Reflector, Red. EuropeReflector, Red. Europe
-
45705002408 Reflector, RedReflector, Red
-
46705500033 Half RingHalf Ring
-
47708000884 Rubber StopperRubber Stopper
-
48708300052 Outside Top Pannel, Yellow. STD Model, YellowOutside Top Pannel, Yellow. STD Model, Yellow
-
48708300442 Outside Top Pannel, Camo. XT Model, CAMOOutside Top Pannel, Camo. XT Model, CAMO
-
48708300552 Outside Top Pannel, Magnesium. XT Model, MagnesiumOutside Top Pannel, Magnesium. XT Model, Magnesium
-
49708300053 Inside Top PannelInside Top Pannel
-
50708300131 Separator Pannel Ass'ySeparator Pannel Ass'y
-
51715001255 Lower Panel Ass'yLower Panel Ass'y
-
51715001255 Lower Panel Ass'y. EuropeLower Panel Ass'y. Europe
-
52708300073 Inside Bottom PannelInside Bottom Pannel
-
53708300600 Latch Handle Cargo Ass'yLatch Handle Cargo Ass'y
-
58708300092 Upper CableUpper Cable
-
63708300512 Gaz ShockGaz Shock
-
66708300136 Box RetainerBox Retainer
-
67708300160 Top RodTop Rod
-
74708300164 Lower Bottom RodLower Bottom Rod
-
75708300167 Black Box SupportBlack Box Support
-
77708300172 Pivot BushingPivot Bushing
-
78708300174 Welded Lateral Support, BlackWelded Lateral Support, Black
-
81708300182 LH Tie Rod ClipLH Tie Rod Clip
-
82708300183 Retaining PlateRetaining Plate
-
83708300184 ActivatorActivator
-
84708300185 Bracket PivotBracket Pivot
-
85708300162 LH LatchLH Latch
-
85708300201 RH LatchRH Latch
-
93708300202 RH Tie Rod ClipRH Tie Rod Clip
-
94708300206 Retaining Plate SupportRetaining Plate Support
-
95708300210 Adjustable Stopper PlateAdjustable Stopper Plate
-
100708300218 Lower CableLower Cable
-
101708300219 SpringSpring
-
102708300278 LH Latch Lever SupportLH Latch Lever Support
-
102708300351 RH Latch Lever SupportRH Latch Lever Support
-
105708300340 Lateral Support, BlackLateral Support, Black
-
106708300345 Upper Pivot SupportUpper Pivot Support
-
107708300346 Front SupportFront Support
-
109708300358 Cap Latch LeverCap Latch Lever
-
111708300359 LH Upper SupportLH Upper Support
-
111708300360 RH Upper SupportRH Upper Support
-
113708300361 LH Lower SupportLH Lower Support
-
113708300362 RH Lower SupportRH Lower Support
-
114708300365 BushingBushing
-
115708300366 BushingBushing
-
116708300392 Clamp ReatinerClamp Reatiner
-
117708300398 HandleHandle
-
118293250240 Neoprene sealNeoprene seal
-
119708300454 SpringSpring
-
120293250240 Neoprene sealNeoprene seal
-
121708300470 SpacerSpacer
-
122708300471 SpacerSpacer
-
124708300513 BushingBushing
-
127732610072 Push NutPush Nut
-
128708300349 Plate Support. EuropePlate Support. Europe
-
129708300367 Reflector Support. EuropeReflector Support. Europe
-
130250000145 Torx Screw M5 X 14. EuropeTorx Screw M5 X 14. Europe
-
131232551414 Elastic Stop Nut M5. EuropeElastic Stop Nut M5. Europe
-
132233251414 Hex. Flanged Elastic Nut M5. EuropeHex. Flanged Elastic Nut M5. Europe
-
133250000145 Torx Screw M5 X 14. EuropeTorx Screw M5 X 14. Europe
-
135232551414 Elastic Stop Nut M5. EuropeElastic Stop Nut M5. Europe
