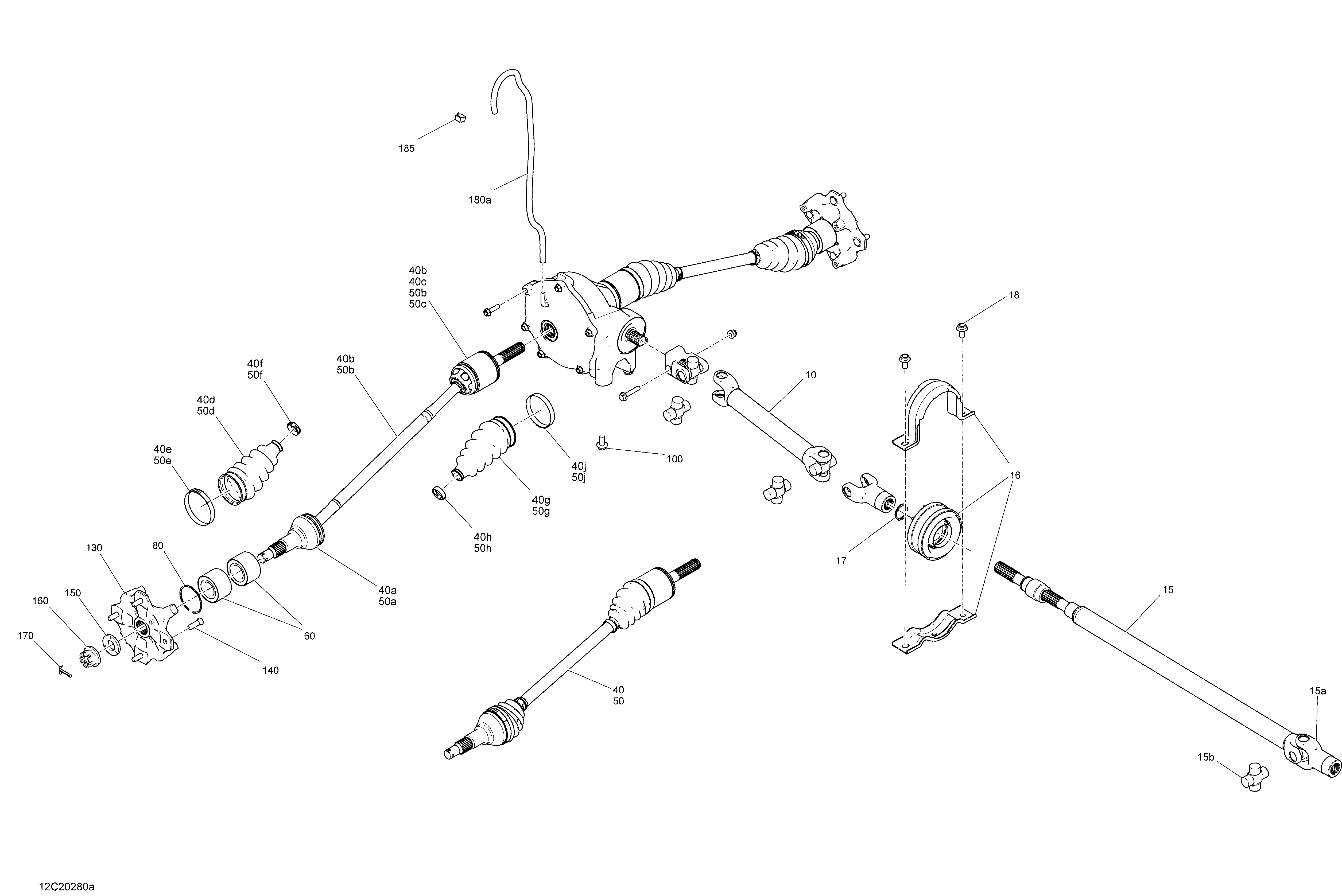

07- Front Drive - Common Parts - CAB для BRP 009 - Defender MAX HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
10705402125 Axle Ass'y. Includes 10 to 10cAxle Ass'y. Includes 10 to 10c
-
15705402045 Axle Ass'y. Includes 15 to 15bAxle Ass'y. Includes 15 to 15b
-
15a715900401 YokeYoke
-
15b715900402 J-Joint Cross KitJ-Joint Cross Kit
-
16705401938 BearingBearing
-
17293370098 Snap RingSnap Ring
-
18207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
40705402449 RH Half Shaft. Includes 40 to 40jRH Half Shaft. Includes 40 to 40j
-
40a715900621 CV JointCV Joint
-
40b715900441 Plunging Joint RHPlunging Joint RH
-
40c705401349 Circlip JointCirclip Joint
-
40d705401345 Boot Kit, Wheel Side. Includes 40d to 40fBoot Kit, Wheel Side. Includes 40d to 40f
-
40e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40g705401355 Boot Kit, Differential Side. Includes 40g to 40jBoot Kit, Differential Side. Includes 40g to 40j
-
40h715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40j715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
50705402450 LH CV Joint. Includes 50 to 50jLH CV Joint. Includes 50 to 50j
-
50a715900621 CV JointCV Joint
-
50b715900442 Plunging Joint LHPlunging Joint LH
-
50c705401349 Circlip JointCirclip Joint
-
50d705401345 Boot Kit, Wheel Side. Includes 50d to 50fBoot Kit, Wheel Side. Includes 50d to 50f
-
50e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50g705401355 Boot Kit, Differential Side. Includes 50g to 50jBoot Kit, Differential Side. Includes 50g to 50j
-
50h715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50j715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
130705502338 Wheel HubWheel Hub
-
140250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
150250200170 Conical Spring Washer M20Conical Spring Washer M20
-
160250100193 Castle Nut M20Castle Nut M20
-
170250400084 Cotter PinCotter Pin
-
180a293830193 Polyurethane HosePolyurethane Hose
-
185414227300 ClipClip
