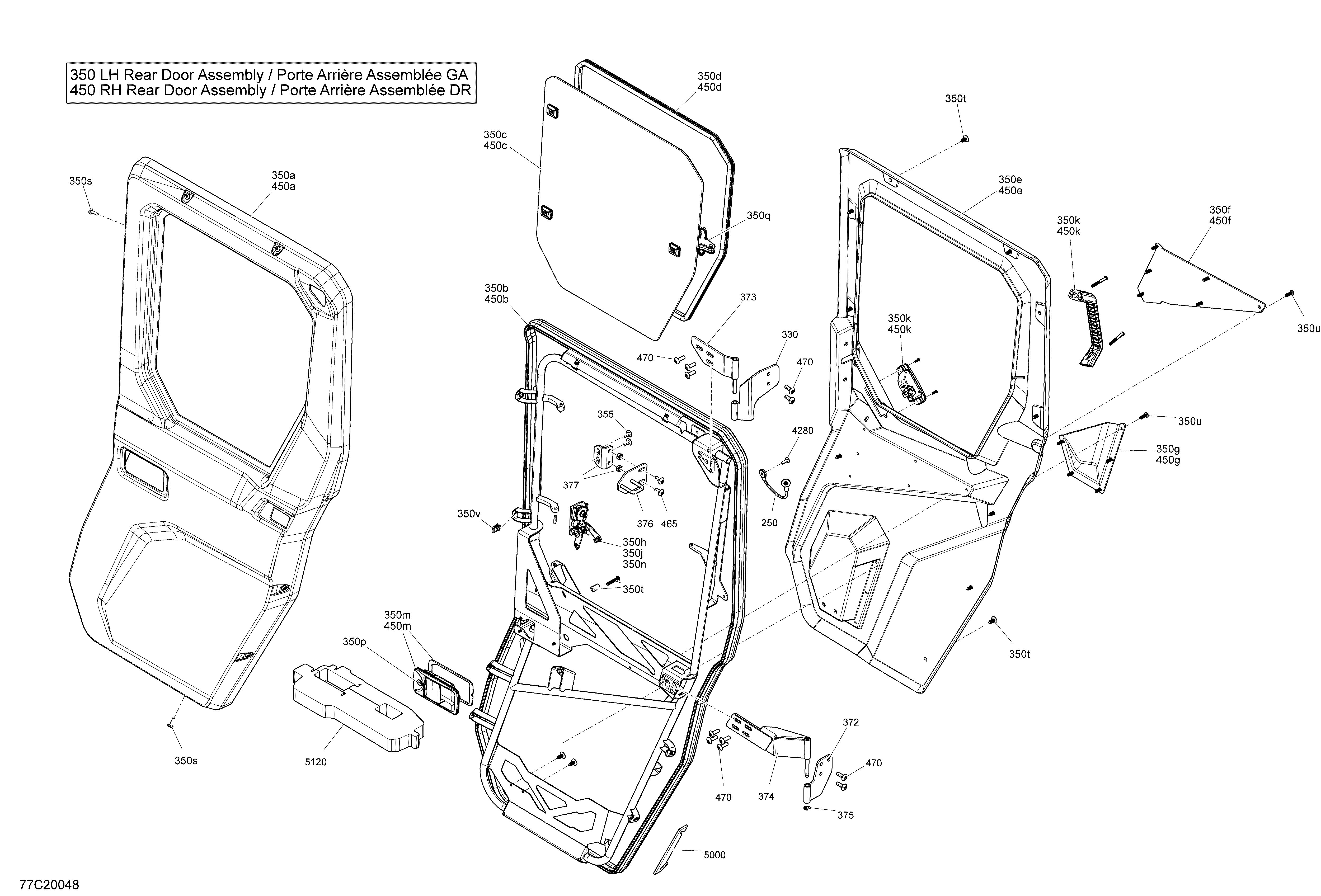

09- Cab - Rear Door - MAX для BRP 009 - Defender MAX HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
250703500982 Door Limit Device KitDoor Limit Device Kit
-
330705800342 LH Upper Female Door HingeLH Upper Female Door Hinge
-
350705800476 LH Rear Rigid Door Ass'y. Includes 350 to 350vLH Rear Rigid Door Ass'y. Includes 350 to 350v
-
350a705800598 LH Exterior PanelLH Exterior Panel
-
350b705800289 Seal 705800290 - 5000 MMSeal 705800290 - 5000 MM
-
350c705800233 LH Sub-Ass'y, WindowLH Sub-Ass'y, Window
-
350d705800297 Seal 705800298 - 2200 MMSeal 705800298 - 2200 MM
-
350e705800235 LH Routed Inner DoorLH Routed Inner Door
-
350f705800600 LH Interior Door TrimLH Interior Door Trim
-
350g705800599 LH Rear Door PocketLH Rear Door Pocket
-
350h705800241 Cable Ass', Exterior LatchCable Ass', Exterior Latch
-
350j703501002 LH Interior Latch KitLH Interior Latch Kit
-
350k705800243 Interior Handle LHInterior Handle LH
-
350m705800015 Exterior Paddle LatchExterior Paddle Latch
-
350n705800242 Cable Ass'y, Interior LatchCable Ass'y, Interior Latch
-
350p705800184 Key SetKey Set
-
350q703500983 Window Hardware KitWindow Hardware Kit
-
350s250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
350t705800120 Rear Left DoorRear Left Door
-
350u705800156 Dart, BlackDart, Black
-
350v250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
355250000953 Torx Truss M/S M8 X 20Torx Truss M/S M8 X 20
-
372705800482 Lower Female Door HingeLower Female Door Hinge
-
373705800340 LH Upper Male Door HingeLH Upper Male Door Hinge
-
374705800344 LH Lower Male Door HingeLH Lower Male Door Hinge
-
375293370125 Retaining RingRetaining Ring
-
376705800520 Rear Door StrikerRear Door Striker
-
377705800353 Rear Striker SupportRear Striker Support
-
450705800477 RH Rear Rigid Door Ass'y. Includes 450 to 450mRH Rear Rigid Door Ass'y. Includes 450 to 450m
-
450a705800601 RH Exterior PanelRH Exterior Panel
-
450b705800289 Seal 705800290 - 5000 MMSeal 705800290 - 5000 MM
-
450c705800234 RH Sub-Ass', WindowRH Sub-Ass', Window
-
450d705800297 Seal 705800298 - 2200 MMSeal 705800298 - 2200 MM
-
450e705800236 Routed Inner Door RhRouted Inner Door Rh
-
450f705800603 RH Interior Door TrimRH Interior Door Trim
-
450g705800602 RH Rear Door PocketRH Rear Door Pocket
-
450k705800244 RH Interior HandleRH Interior Handle
-
450m705800015 Exterior Paddle LatchExterior Paddle Latch
-
465250000953 Torx Truss M/S M8 X 20Torx Truss M/S M8 X 20
-
470250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
4280250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5000705800504 Acoustic InsulationAcoustic Insulation
-
5120705800516 Acoustic InsulationAcoustic Insulation
